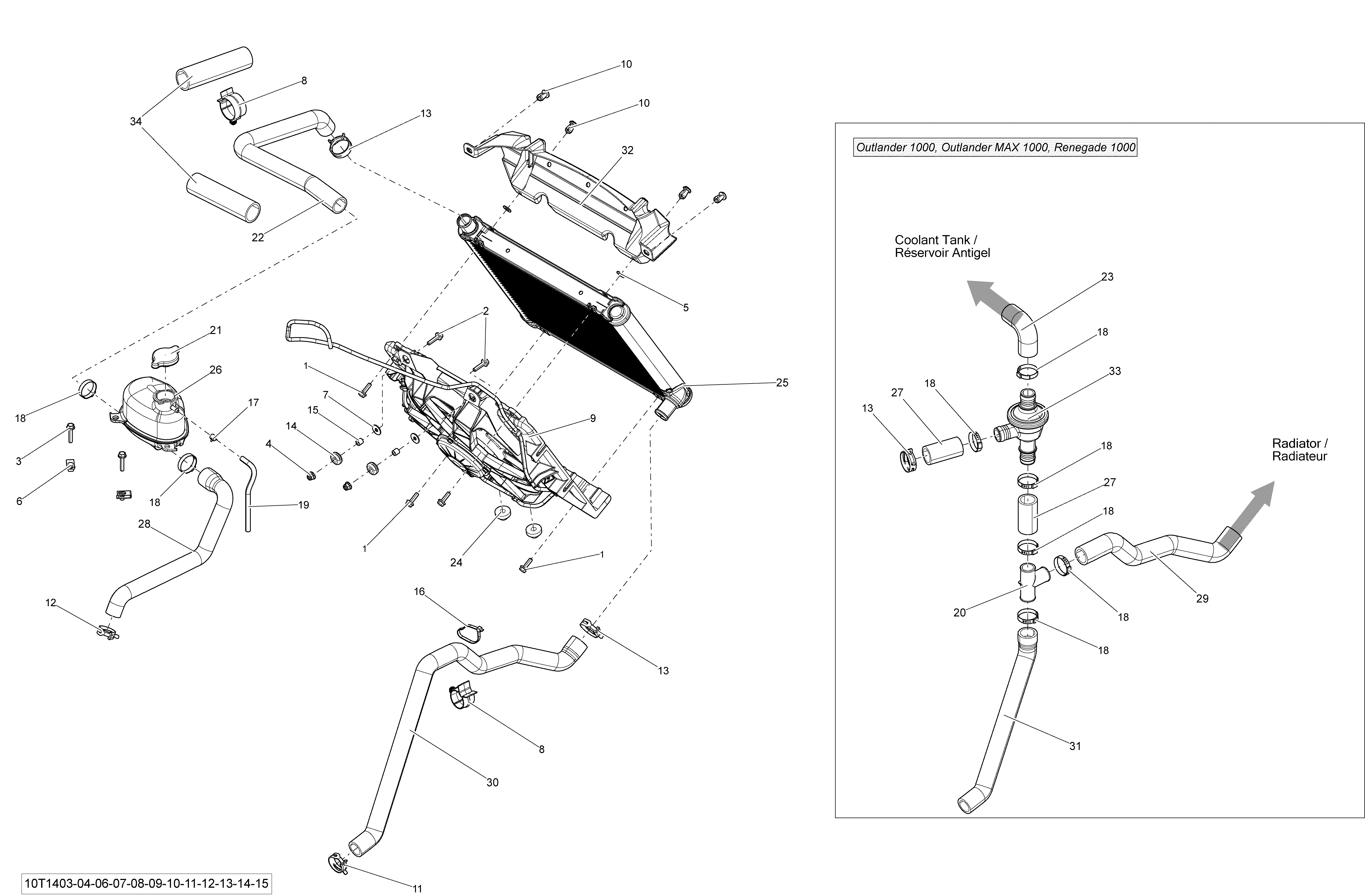

01- Cooling System для BRP Renegade 800R EFI STD & XXC - 2014
‹-+›
-
№АртикулНазвание
-
1207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2207662534 Hex. Flanged ScrewHex. Flanged Screw
-
3207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
4233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
6250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
7250200082 Flat WasherFlat Washer
-
8275500590 RetainerRetainer
-
9709200488 Fan Ass'yFan Ass'y
-
11293650108 Norma Spring ClampNorma Spring Clamp
-
12293650109 Norma Spring ClampNorma Spring Clamp
-
13293650166 Norma Spring ClampNorma Spring Clamp
-
14293720053 GrommetGrommet
-
15293900105 BushingBushing
-
16414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
17414554800 Spring ClampSpring Clamp
-
18509000162 Gear ClampGear Clamp
-
19415080200 Hose, PolyurethaneHose, Polyurethane
-
21709200207 Pressure CapPressure Cap
-
22709200278 Radiator Inlet HoseRadiator Inlet Hose
-
24709200285 GrommetGrommet
-
25709200286 RadiatorRadiator
-
26709200297 Coolant TankCoolant Tank
-
28709200310 Engine Outlet HoseEngine Outlet Hose
-
30709200391 Radiator Outlet HoseRadiator Outlet Hose
-
34515176260 Tubing 35mmTubing 35mm
