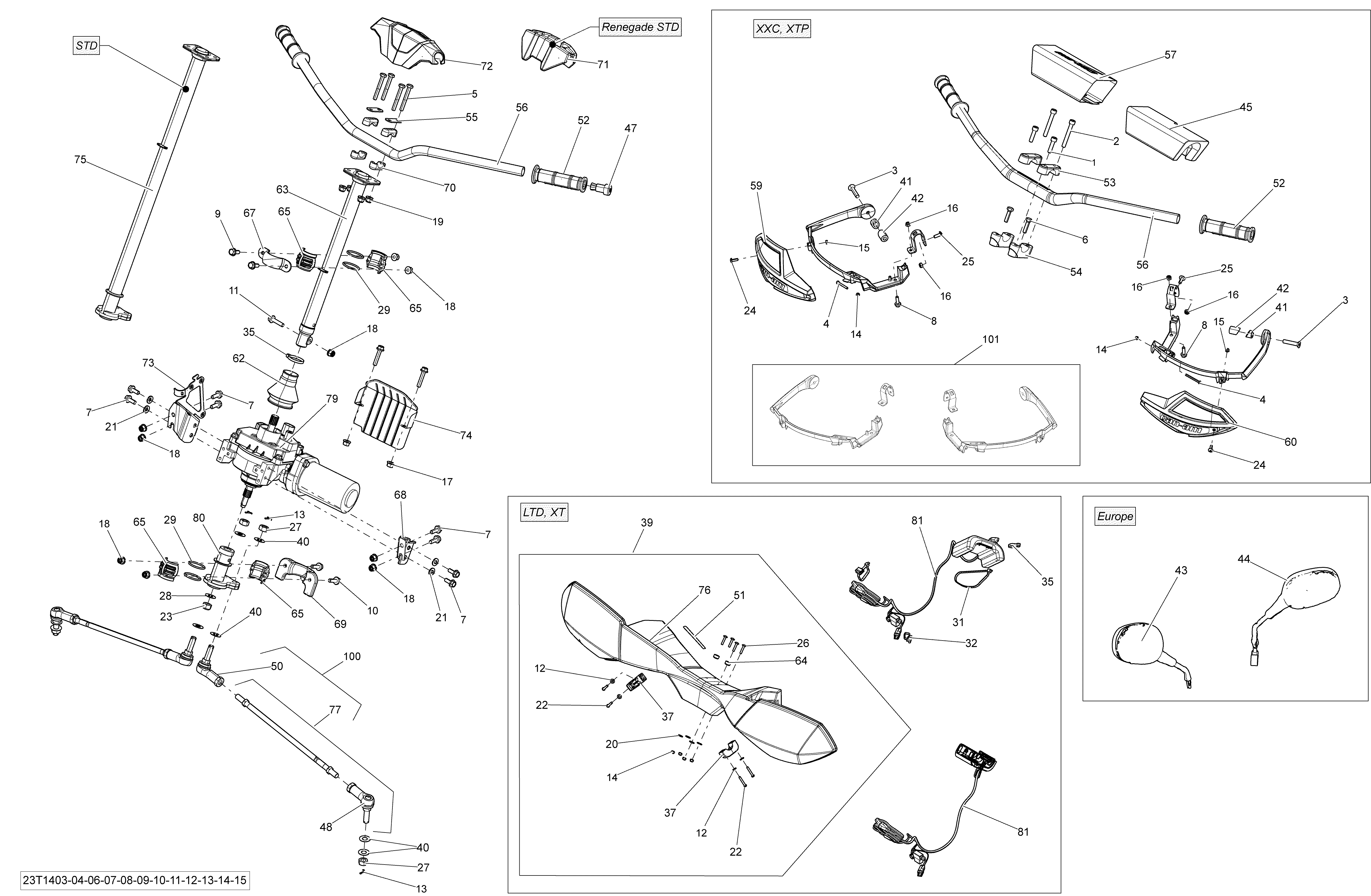

07- Steering для BRP Renegade 800R EFI STD & XXC - 2014
-
№АртикулНазвание
-
1205083060 Socket Screw M8 X 30Socket Screw M8 X 30
-
2207086046 Hex. Screw M8 X 60. STDHex. Screw M8 X 60. STD
-
2205086060 Socket Head Screw M8 X 60. XXCSocket Head Screw M8 X 60. XXC
-
3205384034 Socket Head ScrewSocket Head Screw
-
4205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
6207183060 Hex. Screw M8 X 30Hex. Screw M8 X 30
-
7207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
8207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
9207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
10207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
11207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
13211400013 Cotter PinCotter Pin
-
14232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
15232551600 Hex. Elastic Nut M5Hex. Elastic Nut M5
-
16232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
17233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
18233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
19233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
21234281474 Conical Spring Washer M8Conical Spring Washer M8
-
23250000047 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
24250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
25250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
27250100099 Nut M12Nut M12
-
28250200086 Flat WasherFlat Washer
-
29293300068 O-RingO-Ring
-
40250200086 Flat WasherFlat Washer
-
41709400161 Bracket, SmallBracket, Small
-
42709400162 Bracket, LargeBracket, Large
-
43709400406 LH MirrorLH Mirror
-
44709400523 RH MirrorRH Mirror
-
45709400422 FoamFoam
-
47709400449 End PieceEnd Piece
-
48709400486 Ball Joint, LH ThreadsBall Joint, LH Threads
-
50709400490 Ball JointBall Joint
-
52709400493 Handle GripHandle Grip
-
53709400496 SupportSupport
-
54709400497 Steering SupportSteering Support
-
55709400509 StiffnerStiffner
-
56709400513 Aluminum- Handle Bar. XXCAluminum- Handle Bar. XXC
-
56709401240 Steering, Black. STDSteering, Black. STD
-
57709400519 CoverCover
-
59709400530 RH Air DeflectorRH Air Deflector
-
60709400531 LH Air DeflectorLH Air Deflector
-
62709400674 BellowsBellows
-
63709400703 Upper Main TubeUpper Main Tube
-
65709400783 Spherical Half BushingSpherical Half Bushing
-
67709400827 Upper Column AttachmentUpper Column Attachment
-
68709400848 Power Steering Module BracketPower Steering Module Bracket
-
69709400912 Lower Column AttachmentLower Column Attachment
-
70709400919 Steering Support. STDSteering Support. STD
-
71709400920 SupportSupport
-
72709400939 CoverCover
-
73709400994 RH Steering BracketRH Steering Bracket
-
74709401005 Heat DeflectorHeat Deflector
-
75709401008 Main TubeMain Tube
-
77703500783 Tie-Rod Ass'yTie-Rod Ass'y
-
79709401182 Power Steering Ass'yPower Steering Ass'y
-
80709401320 Lower Steering Tube, BlackLower Steering Tube, Black
-
100703500783 Tie-Rod Ass'yTie-Rod Ass'y
-
101715000545 Deflector Support KitDeflector Support Kit
