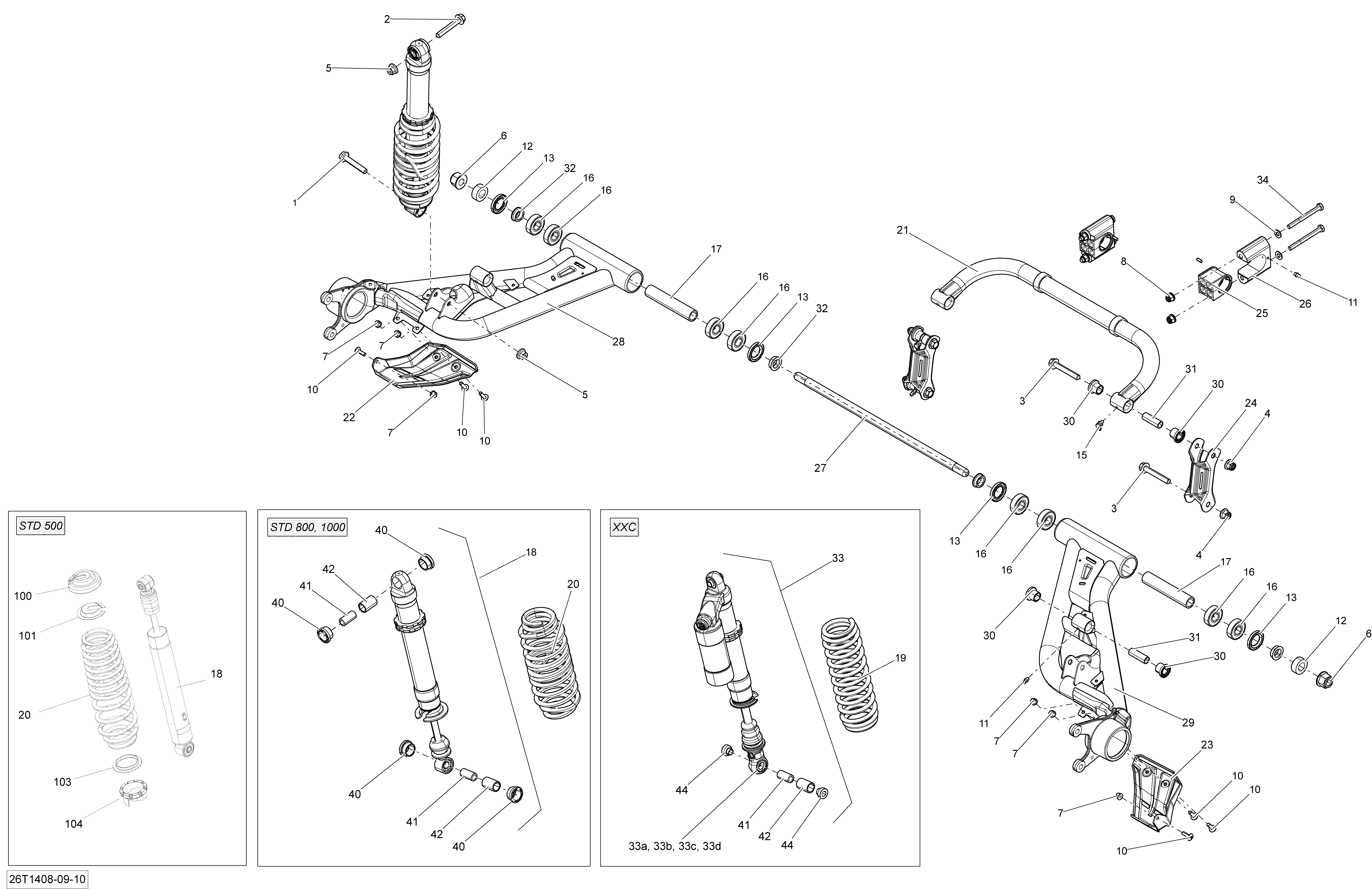

08- Rear Suspension для BRP Renegade 800R EFI STD & XXC - 2014
-
№АртикулНазвание
-
1207605546 Flanged Hex. Screw M10 X 55Flanged Hex. Screw M10 X 55
-
2207606046 Flanged Hex. Screw M10 X 60Flanged Hex. Screw M10 X 60
-
3207606536 Hex Flange Screw M10 X 65Hex Flange Screw M10 X 65
-
4233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
5233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
6233211466 Hex. Flanged Elastic Nut M16Hex. Flanged Elastic Nut M16
-
7233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
8233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
9234081430 Flat Washer M8Flat Washer M8
-
10250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
11250000315 Grease FittingGrease Fitting
-
12250200112 Flat Washer M17Flat Washer M17
-
13293200132 SealSeal
-
15293550056 Grease Fitting 90°Grease Fitting 90°
-
16706000826 Ball BearingBall Bearing
-
17706000828 SpacerSpacer
-
18706000864 Rear Shock. Model-STD, Includes 40 to 42Rear Shock. Model-STD, Includes 40 to 42
-
19706000950 Yellow Spring. Model-XXCYellow Spring. Model-XXC
-
20706000955 Yellow Spring. Model-STDYellow Spring. Model-STD
-
21706000988 SwaybarSwaybar
-
22706001009 LH ProtectorLH Protector
-
23706001010 RH ProtectorRH Protector
-
24706001020 Swaybar LinkageSwaybar Linkage
-
25706001098 CushionCushion
-
26706001099 Bushing HolderBushing Holder
-
27706001664 Axial Pivot M16Axial Pivot M16
-
28706001543 Black LH Swing Arm. Model-STDBlack LH Swing Arm. Model-STD
-
28706001598 Yellow LH Swing Arm. Model-XXCYellow LH Swing Arm. Model-XXC
-
29706001544 Black RH Swing Arm. Model-STDBlack RH Swing Arm. Model-STD
-
29706001599 Yellow RH Swing Arm. Model-XXCYellow RH Swing Arm. Model-XXC
-
30703500875 Bushing Kit. Includes 31Bushing Kit. Includes 31
-
31703500875 Bushing Kit. Includes 30Bushing Kit. Includes 30
-
32706001282 SpacerSpacer
-
33706001572 Rear Shock. Model-XXC, Includes 33a to 33d, 41, 42, 44Rear Shock. Model-XXC, Includes 33a to 33d, 41, 42, 44
-
33a715900209 O-Ring Bushing. Model-XXCO-Ring Bushing. Model-XXC
-
33b706201648 Bushing. Model-XXCBushing. Model-XXC
-
33c715900251 Spherical Bearing. Model-XXCSpherical Bearing. Model-XXC
-
33d715900252 Retaining Ring. Model-XXCRetaining Ring. Model-XXC
-
34207088587 Hex,. Screw M8 X 85Hex,. Screw M8 X 85
-
40706201584 Bushing. Model-STDBushing. Model-STD
-
41706201586 Bushing Sleeve. Model-STDBushing Sleeve. Model-STD
-
41706201586 Bushing Sleeve. Model-XXCBushing Sleeve. Model-XXC
-
42706201585 Bushing Sleeve. Model-STDBushing Sleeve. Model-STD
-
42706201585 Bushing Sleeve. Model-XXCBushing Sleeve. Model-XXC
-
44715900210 Interior Bushing. Model-XXCInterior Bushing. Model-XXC
