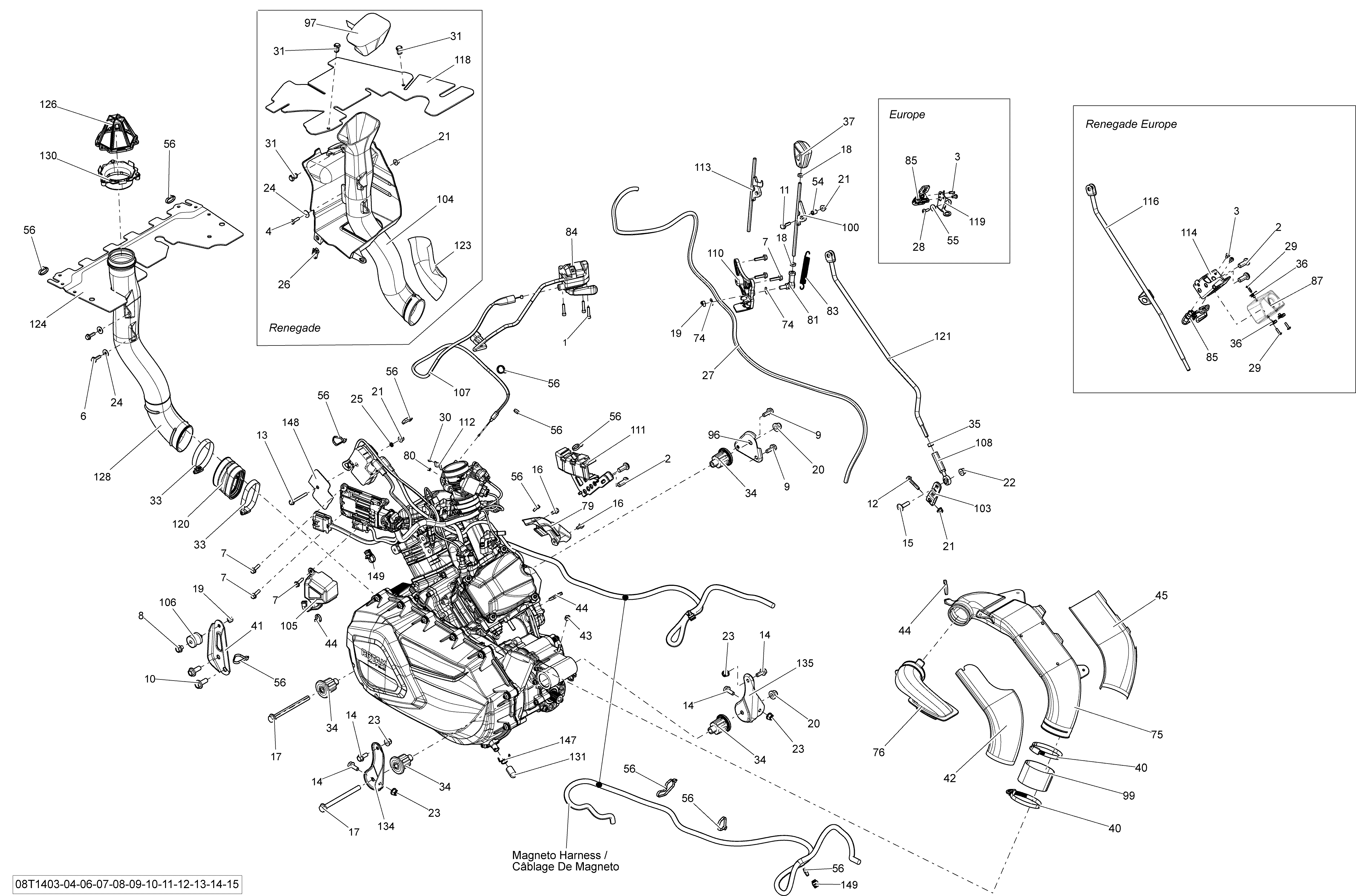

01- Engine для BRP Renegade 800R EFI STD & XXC - 2014
-
№АртикулНазвание
-
1205052588 Socket Head Screw M5 X 25Socket Head Screw M5 X 25
-
2205402596 Socket Head Screw M10 X 25Socket Head Screw M10 X 25
-
3205951046 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
4207162044 Hex. Screw M6 X 20Hex. Screw M6 X 20
-
6207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
7207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
8207581046 Flanged Screw M8 x 10, Scotch GripFlanged Screw M8 x 10, Scotch Grip
-
9207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
10207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
11207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
12207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
13207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
14207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
15207783044 Carriage Bolt M8 X 30Carriage Bolt M8 X 30
-
16210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
17230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
18232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
19232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
20233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
23233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
24234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
25234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
26250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
27415080200 Hose, PolyurethaneHose, Polyurethane
-
29250000242 Truss Torx Screw M4 X 16Truss Torx Screw M4 X 16
-
30250000332 Torx Screw M4 X 8Torx Screw M4 X 8
-
31293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
33293650091 Norma ClampNorma Clamp
-
34707001169 DamperDamper
-
35250100144 Hex. Nut M8, Filets GAHex. Nut M8, Filets GA
-
36250100143 Extruded Panel Nut M4 X 0.7Extruded Panel Nut M4 X 0.7
-
37707000965 Lever ButtonLever Button
-
40293650118 Norma Gear ClampNorma Gear Clamp
-
41707001256 Upper Engine BracketUpper Engine Bracket
-
42707001217 Heat ShieldHeat Shield
-
43293650195 Clamp, OetikerClamp, Oetiker
-
44293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
45707001218 Heat ShieldHeat Shield
-
54293900019 BushingBushing
-
56414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
74506151252 WasherWasher
-
75706600016 Air OutletAir Outlet
-
76706600018 Air OutletAir Outlet
-
79707000410 Cover OPSCover OPS
-
80707000434 Cable GuideCable Guide
-
81707000546 RH Ball JointRH Ball Joint
-
83707000577 SpringSpring
-
84707000595 Throttle HandleThrottle Handle
-
87707000667 Cover LockCover Lock
-
96707000761 Engine Bracket, BlackEngine Bracket, Black
-
97707000776 Filter CVTFilter CVT
-
99707000789 AdaptorAdaptor
-
100707000840 Shift ArmShift Arm
-
103707000911 LeverLever
-
104707000928 Water DeflectorWater Deflector
-
105707000945 CoverCover
-
106707000949 Rubber IsolatorRubber Isolator
-
107707000955 Throttle CableThrottle Cable
-
108707000966 Ball Joint Ass'yBall Joint Ass'y
-
110707000971 Shift Arm BaseShift Arm Base
-
111707000992 Upper Cable SupportUpper Cable Support
-
112707000994 Speed LimiterSpeed Limiter
-
114707001009 Fixing PlateFixing Plate
-
116707001012 Shifter RodShifter Rod
-
118707001041 Upper Water DeflectorUpper Water Deflector
-
120707001043 Flexible AdaptorFlexible Adaptor
-
121707001082 Shifter RodShifter Rod
-
123707001096 Reflective SheetReflective Sheet
-
128707001399 CVT Air InletCVT Air Inlet
-
131707001185 PlugPlug
-
134707001193 LH Rear Engine BracketLH Rear Engine Bracket
-
135707001194 RH Rear Engine BracketRH Rear Engine Bracket
-
147707800506 Retainer ClipRetainer Clip
-
148710000073 Insulator PadInsulator Pad
-
149710002896 Tie-Rap ClipTie-Rap Clip
