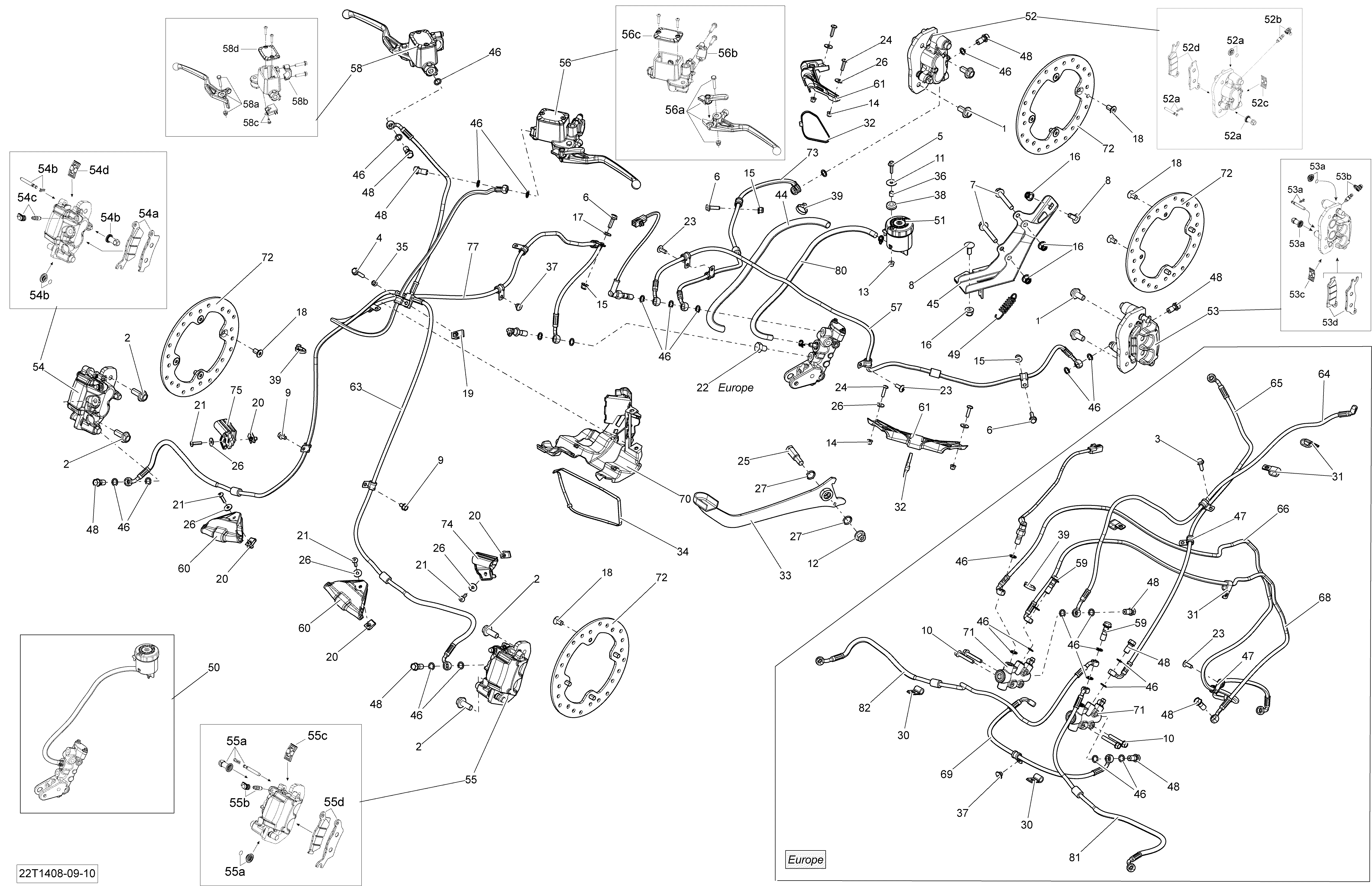

06- Brakes для BRP Renegade 800R EFI STD & XXC - 2014
-
№АртикулНазвание
-
1207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
2207502546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
3207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
4207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
5207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
6207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
7207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
8207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
9210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
10210264080 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
11224060201 Flat WasherFlat Washer
-
12233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
13233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
14233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
15233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
17234062410 Flat Washer 6 mmFlat Washer 6 mm
-
18235381646 Torx Screw M8 X 16, Scotch Grip. Except EuropeTorx Screw M8 X 16, Scotch Grip. Except Europe
-
18235381646 Torx Screw M8 X 16, Scotch Grip. EuropeTorx Screw M8 X 16, Scotch Grip. Europe
-
19250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
20250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
21250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
22250000163 Hex. Screw M10 X 14, Scotch GripHex. Screw M10 X 14, Scotch Grip
-
23250000261 Torx Screw M6 X 16. EuropeTorx Screw M6 X 16. Europe
-
23250000261 Torx Screw M6 X 16. Except EuropeTorx Screw M6 X 16. Except Europe
-
24250000465 Torx Screw M5 X 20. EuropeTorx Screw M5 X 20. Europe
-
24250000465 Torx Screw M5 X 20. Except EuropeTorx Screw M5 X 20. Except Europe
-
25250000513 Shoulder Screw M10Shoulder Screw M10
-
26250200025 Washer M5Washer M5
-
27293300144 O-RingO-Ring
-
30293650219 ClampClamp
-
31293650220 ClampClamp
-
32293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
33705601155 Brake PedalBrake Pedal
-
34293750047 Tie Rap, 533 mmTie Rap, 533 mm
-
35293900104 BushingBushing
-
36293900112 BushingBushing
-
37390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
38414036300 GrommetGrommet
-
39414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
44415079900 Tubing 10 mmTubing 10 mm
-
45705202000 Bracket Brake PedalBracket Brake Pedal
-
46705600310 Copper Washer. Except EuropeCopper Washer. Except Europe
-
46705600310 Copper Washer. EuropeCopper Washer. Europe
-
47705600459 Clamp. EuropeClamp. Europe
-
47705600459 Clamp. Except EuropeClamp. Except Europe
-
48705600609 Banjo Bolt. Except EuropeBanjo Bolt. Except Europe
-
48705600609 Banjo Bolt. EuropeBanjo Bolt. Europe
-
49705600792 Brake Pedal SpringBrake Pedal Spring
-
50705601274 Rear Master CylinderRear Master Cylinder
-
51705601020 Oil TankOil Tank
-
52705600859 RH Rear Caliper Ass'yRH Rear Caliper Ass'y
-
52a705601016 Pin SetPin Set
-
52b705601017 Bleeding ScrewBleeding Screw
-
52c705601018 SpringSpring
-
52d705601014 Brake Pad KitBrake Pad Kit
-
53705600860 LH Rear Caliper Ass'yLH Rear Caliper Ass'y
-
53a705601016 Pin SetPin Set
-
53b705601017 Bleeding ScrewBleeding Screw
-
53c705601018 SpringSpring
-
53d705601015 Brake Pad KitBrake Pad Kit
-
54705600861 RH Front Caliper Ass'yRH Front Caliper Ass'y
-
54a705601014 Brake Pad KitBrake Pad Kit
-
54b705601016 Pin SetPin Set
-
54c705601017 Bleeding ScrewBleeding Screw
-
54d705601018 SpringSpring
-
55705600862 LH Front Caliper Ass'yLH Front Caliper Ass'y
-
55a705601016 Pin SetPin Set
-
55b705601017 Bleeding ScrewBleeding Screw
-
55c705601018 SpringSpring
-
55d705601015 Brake Pad KitBrake Pad Kit
-
56705600912 LH Front Master Cylinder Ass'yLH Front Master Cylinder Ass'y
-
56a705601013 Lever SetLever Set
-
56b507032477 Clamp And Screw KitClamp And Screw Kit
-
56c219800096 Cap SetCap Set
-
57705600911 Brake Line Ass'yBrake Line Ass'y
-
58705600913 RH Front Master Cylinder Ass'yRH Front Master Cylinder Ass'y
-
58a705601011 Lever SetLever Set
-
58b507032477 Clamp And Screw KitClamp And Screw Kit
-
58c705601012 Kit SwitchKit Switch
-
58d219800096 Cap SetCap Set
-
59705600958 Banjo BoltBanjo Bolt
-
60705600962 Front Hose ProtectorFront Hose Protector
-
61705600963 Rear Hose Protector. Except EuropeRear Hose Protector. Except Europe
-
61705600963 Rear Hose Protector. EuropeRear Hose Protector. Europe
-
63705601123 Brake LineBrake Line
-
64705600969 LH Brake Handle Line Ass'yLH Brake Handle Line Ass'y
-
65705600970 RH Brake Handle Line Ass'yRH Brake Handle Line Ass'y
-
66705600971 RH Rear Brake Line Ass'yRH Rear Brake Line Ass'y
-
68705600980 Outlet Hose, Master CylinderOutlet Hose, Master Cylinder
-
69705600981 Brake LineBrake Line
-
70705600983 Front Hose BracketFront Hose Bracket
-
71705600994 SplitterSplitter
-
72705600999 Disc Brake. Except EuropeDisc Brake. Except Europe
-
72705600999 Disc Brake. EuropeDisc Brake. Europe
-
73705601002 Brake Line Ass'yBrake Line Ass'y
-
74705601048 LH Hose BracketLH Hose Bracket
-
75705601049 RH Hose BracketRH Hose Bracket
-
76705601051 Bleeding ScrewBleeding Screw
-
77705601059 Brake LineBrake Line
-
80705601019 Housing Oil HoseHousing Oil Hose
-
81705601127 LH Brake LineLH Brake Line
-
82705601126 RH Brake LineRH Brake Line
