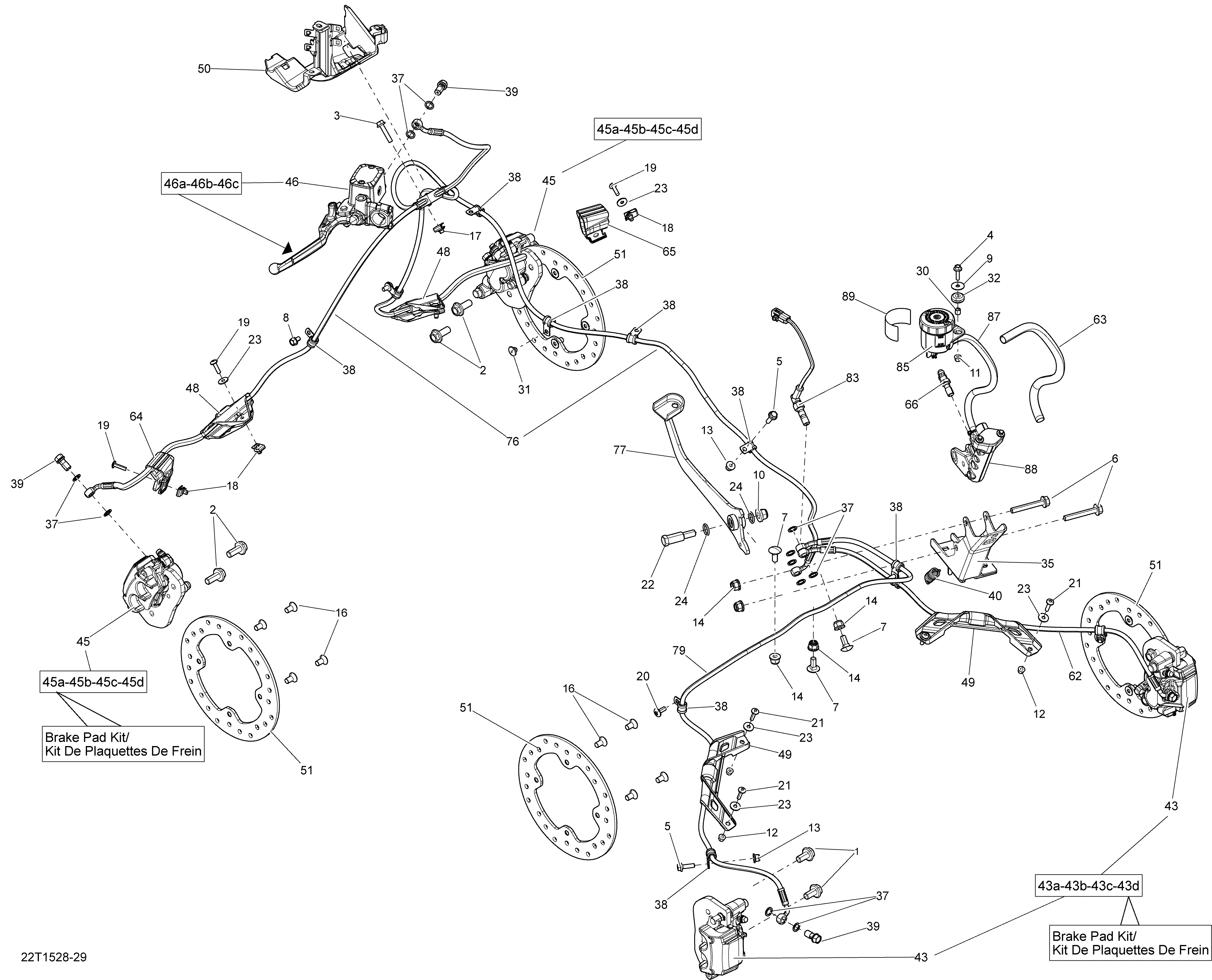

06- Hydraulic Brakes _22T1529 для BRP Outlander 6X6 1000 EFI - 2015
-
№АртикулНазвание
-
1207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
2207502546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
3207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
4207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
5207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
6207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
7207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
8210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
9224060201 Flat WasherFlat Washer
-
10233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
11233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
12233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
16235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
17250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
18250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
19250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
20250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
21250000465 Torx Screw M5 X 20Torx Screw M5 X 20
-
22250000513 Shoulder Screw M10Shoulder Screw M10
-
23250200025 Washer M5Washer M5
-
24293300144 O-RingO-Ring
-
30293900112 BushingBushing
-
31390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
32414036300 GrommetGrommet
-
35705202000 Bracket Brake PedalBracket Brake Pedal
-
37705600310 Copper WasherCopper Washer
-
38715900250 Hose ClipHose Clip
-
39705600609 Banjo BoltBanjo Bolt
-
40705600792 Brake Pedal SpringBrake Pedal Spring
-
43705600859 RH Rear Caliper Ass'yRH Rear Caliper Ass'y
-
43705600860 LH Rear Caliper Ass'yLH Rear Caliper Ass'y
-
43a705601016 Pin SetPin Set
-
43b705601017 Bleeding ScrewBleeding Screw
-
43c705601018 SpringSpring
-
43d705601014 RH Brake Pad KitRH Brake Pad Kit
-
43d705601015 LH Brake Pad KitLH Brake Pad Kit
-
45705600861 RH Front Caliper Ass'yRH Front Caliper Ass'y
-
45705600862 LH Front Caliper Ass'yLH Front Caliper Ass'y
-
45a705601014 RH Brake Pad KitRH Brake Pad Kit
-
45a705601015 LH Brake Pad KitLH Brake Pad Kit
-
45b705601016 Pin SetPin Set
-
45c705601017 Bleeding ScrewBleeding Screw
-
45d705601018 SpringSpring
-
46705600865 Front Master CylinderFront Master Cylinder
-
46a705601013 Lever SetLever Set
-
46b507032477 Clamp And Screw KitClamp And Screw Kit
-
46c219800096 Cap SetCap Set
-
48705600962 Front Hose ProtectorFront Hose Protector
-
49705600963 Rear Hose ProtectorRear Hose Protector
-
50705600983 Front Hose BracketFront Hose Bracket
-
51705600999 Disc BrakeDisc Brake
-
62705601005 RH Brake LineRH Brake Line
-
63415079900 Tubing 10 mmTubing 10 mm
-
64705601048 LH Hose BracketLH Hose Bracket
-
65705601049 RH Hose BracketRH Hose Bracket
-
66705601051 Bleeding ScrewBleeding Screw
-
76705601122 Brake LineBrake Line
-
77705601155 Brake PedalBrake Pedal
-
79705601221 Brake line rear LHBrake line rear LH
-
83705601251 Brake SwitchBrake Switch
-
85705601020 Oil TankOil Tank
-
87705601019 Housing Oil HoseHousing Oil Hose
-
88705601274 Rear Master CylinderRear Master Cylinder
-
89705601311 Heat ShieldHeat Shield
