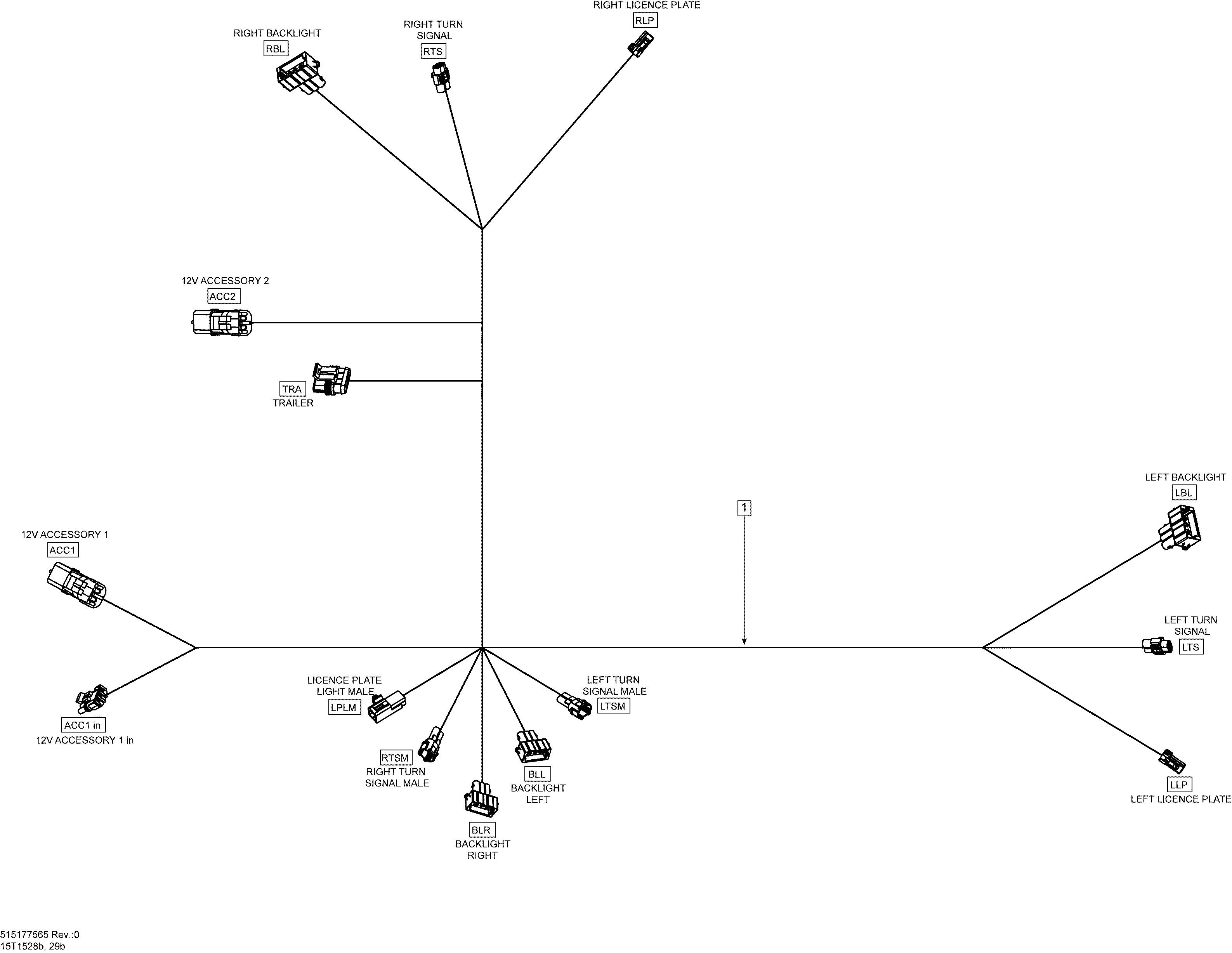

10- Electrical Harness _Rear Harness_15T1529b для BRP Outlander 6X6 1000 EFI - 2015
-
№АртикулНазвание
-
1515177565 Rear Light HarnessRear Light Harness
-
ACC1278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
ACC1278000222 Male TerminalMale Terminal
-
ACC1409004300 Male TerminalMale Terminal
-
ACC1278001065 Wire SealWire Seal
-
ACC1710000992 ClipClip
-
ACC1in278000220 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
ACC1in409007300 Female TerminalFemale Terminal
-
ACC1in278000223 Female TerminalFemale Terminal
-
ACC1in278001065 Wire SealWire Seal
-
ACC2278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
ACC2278000222 Male TerminalMale Terminal
-
ACC2409004300 Male TerminalMale Terminal
-
ACC2278001065 Wire SealWire Seal
-
ACC2710000992 ClipClip
-
LBL710003139 HousingHousing
-
LBL415128501 SealSeal
-
LLP515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
LLP515175231 Female TerminalFemale Terminal
-
LPLM710000667 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
LPLM515175232 Male TerminalMale Terminal
-
LTS710000402 Wire SealWire Seal
-
LTS409012100 Female TerminalFemale Terminal
-
LTSM409011300 Male TerminalMale Terminal
-
RBL710003139 HousingHousing
-
RBL415128501 SealSeal
-
RLP515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
RLP515175231 Female TerminalFemale Terminal
-
RTS710000402 Wire SealWire Seal
-
RTS409012100 Female TerminalFemale Terminal
-
RTSM409011300 Male TerminalMale Terminal
-
TRA710000780 ConnectorConnector
-
TRA278001014 Female TerminalFemale Terminal
-
TRA278001013 Wire SealWire Seal
-
TRA515176621 Wire SealWire Seal
-
TRA409013700 PlugPlug
