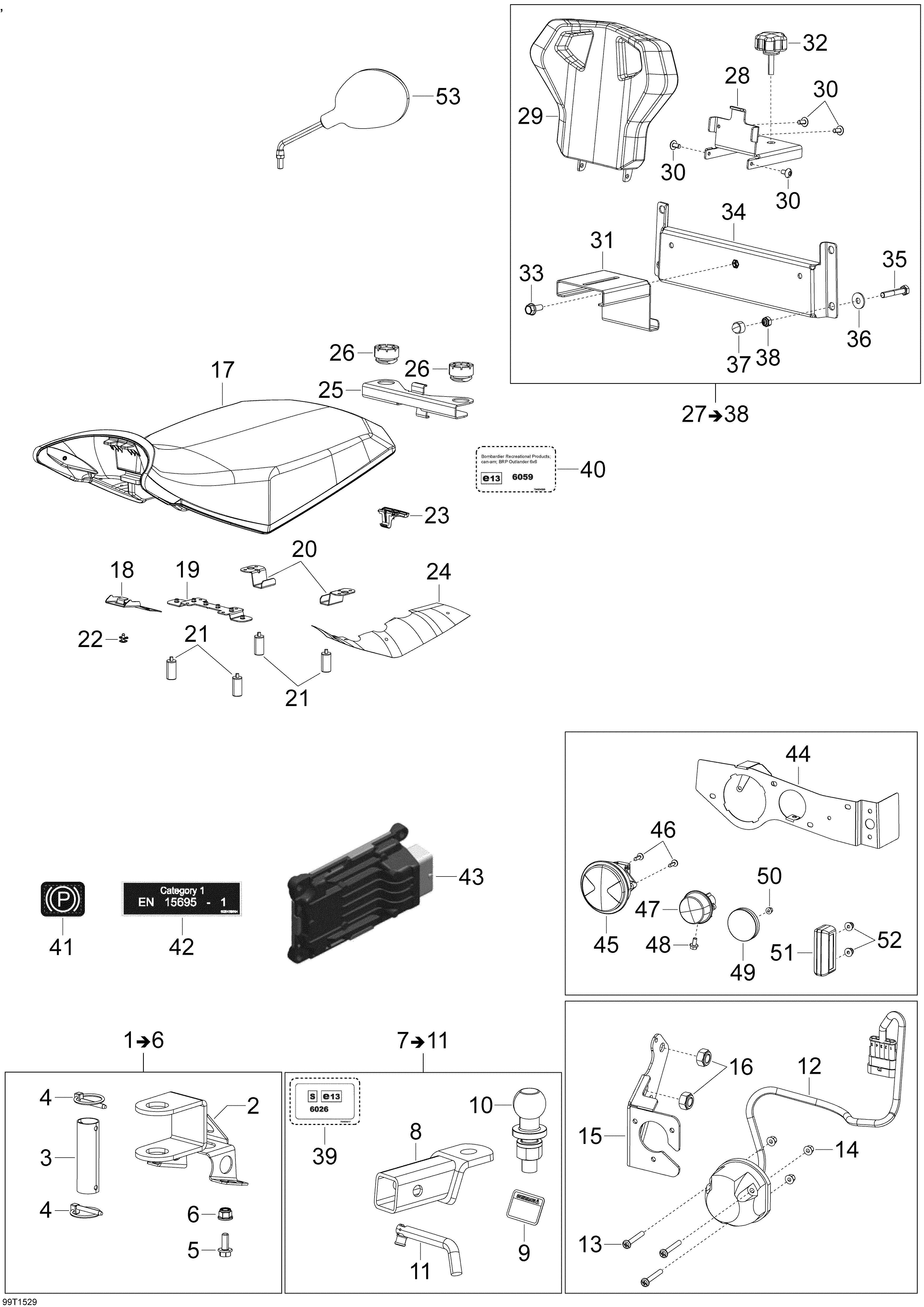

11- T3 Parts _99T1529 для BRP Outlander 6X6 1000 EFI - 2015
-
№АртикулНазвание
-
2605256497 Front Coupling DeviceFront Coupling Device
-
3605456511 PinPin
-
4605456518 Linch PinLinch Pin
-
5207682044 Hex. Flange Screw M8 x 20Hex. Flange Screw M8 x 20
-
6233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
7715002872 Coupling Ball Ass'y. Includes 7 To 11Coupling Ball Ass'y. Includes 7 To 11
-
11705204490 Hitch PinHitch Pin
-
12515177667 Trailer HarnessTrailer Harness
-
14233251434 Elastic Flange Nut M5Elastic Flange Nut M5
-
15705204572 Plug Fastening PlatePlug Fastening Plate
-
16232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
17605156590 Seat Ass'ySeat Ass'y
-
18605456520 Front Bottom SupportFront Bottom Support
-
19510005986 Middle Bottom SupportMiddle Bottom Support
-
20510005988 Rear Bottom SupportRear Bottom Support
-
21605456546 Rubber DamperRubber Damper
-
22293150067 Tri-Fast RivetTri-Fast Rivet
-
23708000909 LatchLatch
-
24705005761 Heat ShieldHeat Shield
-
25705204016 Seat Rear RaiserSeat Rear Raiser
-
26708000760 Rubber BumperRubber Bumper
-
28705204093 Angle SupportAngle Support
-
29708001751 Back RestBack Rest
-
30250000675 Torx Truss Screw M6 x 12Torx Truss Screw M6 x 12
-
31708001607 Back Rest BodyBack Rest Body
-
32510003533 Male HandleMale Handle
-
33207682046 Hex. Flange Screw M8 x 20Hex. Flange Screw M8 x 20
-
34708001611 Back Rest SupportBack Rest Support
-
35207084544 Hex. Cap Screw M8 x 45Hex. Cap Screw M8 x 45
-
36234082670 Flat WasherFlat Washer
-
3728056 CoverCover
-
38232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
39704904417 Instruction LabelInstruction Label
-
40704904599 Instruction LabelInstruction Label
-
41605356244 P DecalP Decal
-
42605456594 Cabin DecalCabin Decal
-
43420266929 ECM, Engine Control Module 1000 T3ECM, Engine Control Module 1000 T3
-
44605356527 LH Rear Light PlateLH Rear Light Plate
-
44605356528 RH Rear Light PlateRH Rear Light Plate
-
45710001645 Tail LightTail Light
-
46250000720 Torx Truss Screw K5 x 16Torx Truss Screw K5 x 16
-
47710002964 FlasherFlasher
-
48207561244 Hex. Flange Screw M6 x 12Hex. Flange Screw M6 x 12
-
49705002408 ReflectorReflector
-
50233251434 Elastic Flange Nut M5Elastic Flange Nut M5
-
51710002055 Licence Plate LightLicence Plate Light
-
52233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
53709400406 LH MirrorLH Mirror
-
53709400407 RH MirrorRH Mirror
