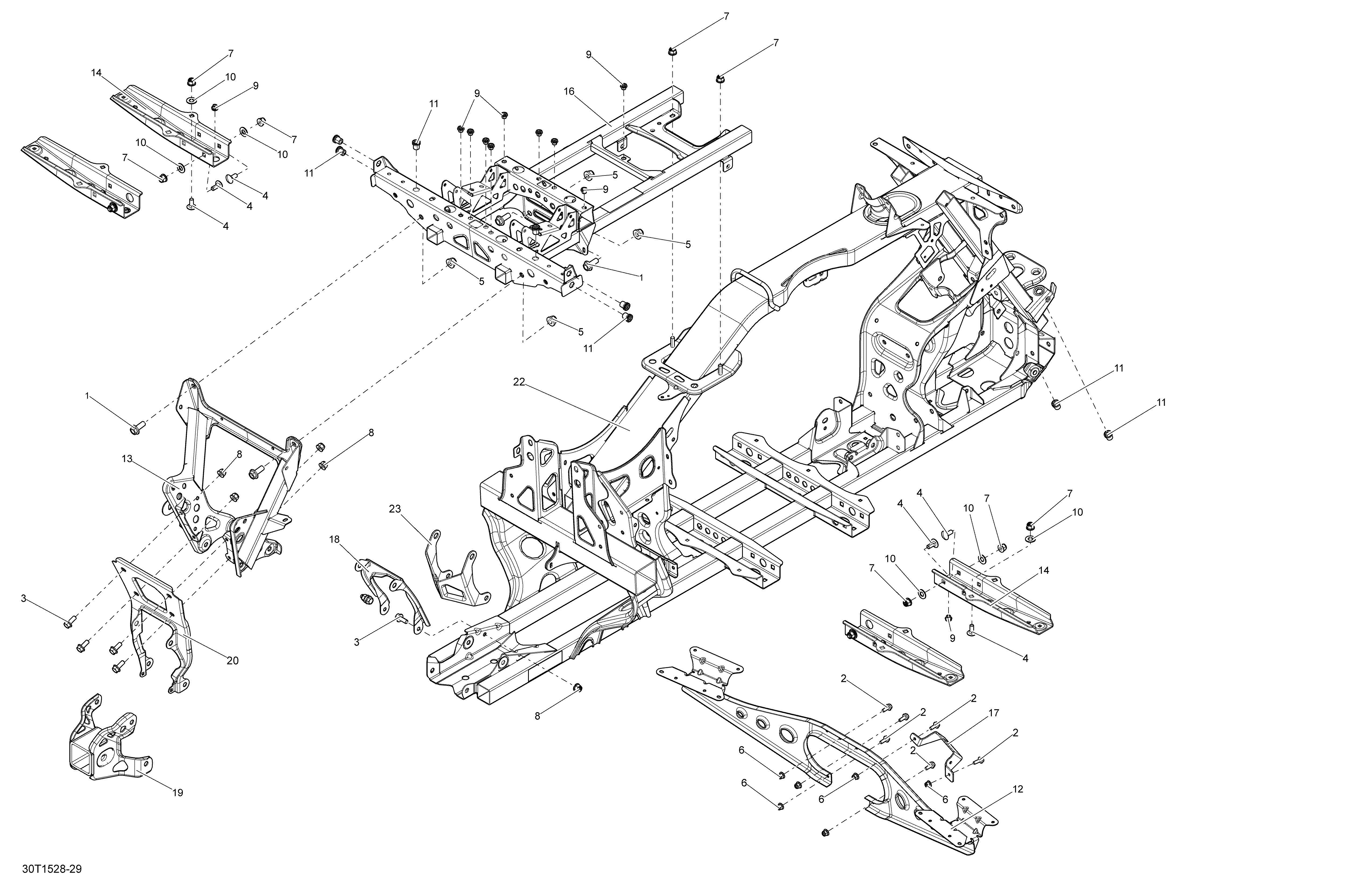

09- Frame _30T1529 для BRP Outlander 6X6 1000 EFI - 2015
-
№АртикулНазвание
-
1207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
3207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
4207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
5233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
9293450232 InsertInsert
-
10234001410 Flat Washer 10 mmFlat Washer 10 mm
-
11293450307 InsertInsert
-
13705203387 Black Rear SupportBlack Rear Support
-
14705202021 Footrest SupportFootrest Support
-
16705202291 Welded Extension, BlackWelded Extension, Black
-
18709000535 Heat ShieldHeat Shield
-
19715002243 Black Trailer Hitch KitBlack Trailer Hitch Kit
-
22705204116 Black FrameBlack Frame
