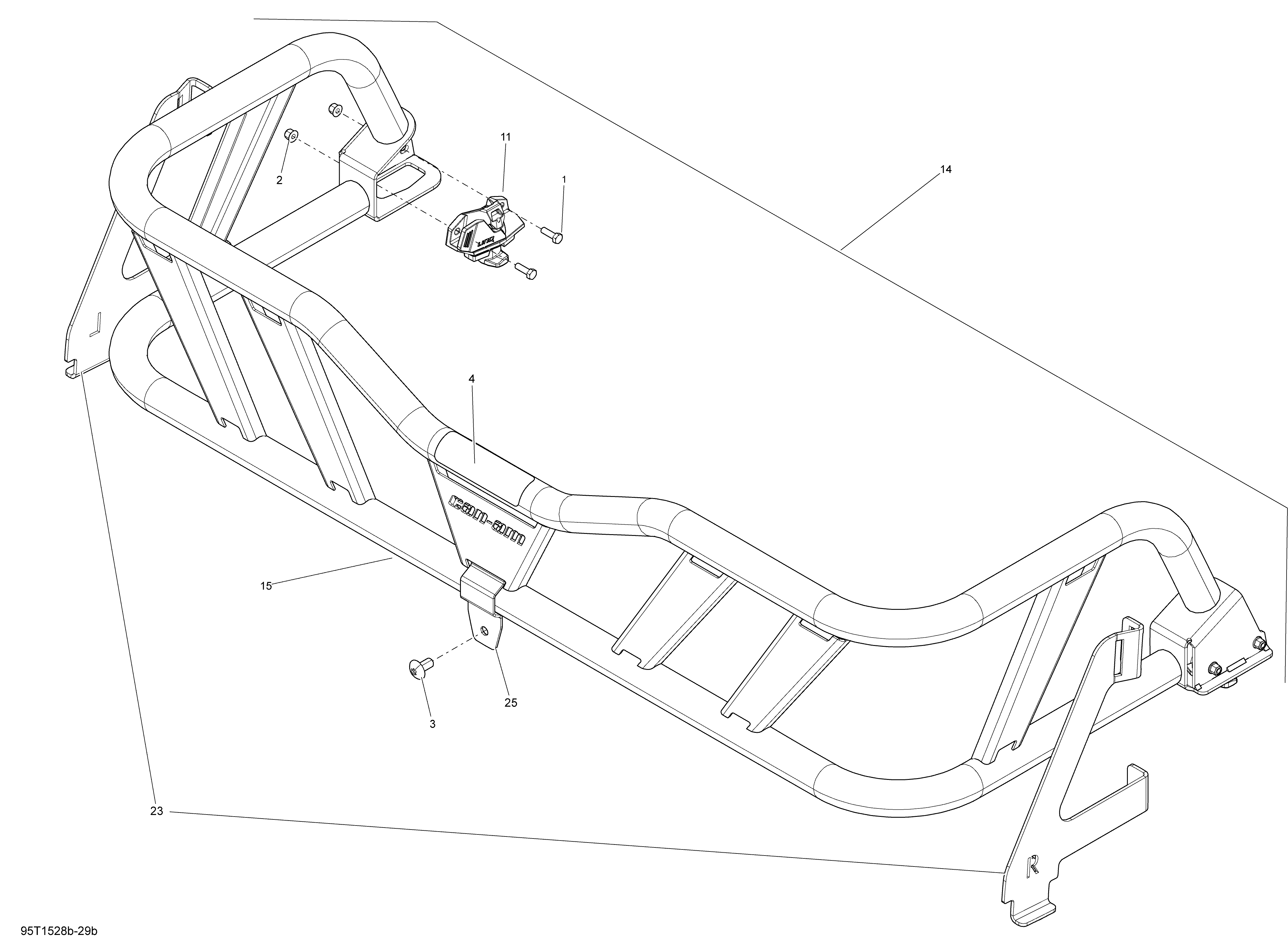

09- Farmer Cargo Extender_95T1528b для BRP Outlander 6X6 1000 EFI - 2015
-
№АртикулНазвание
-
1207151644 Hex. Screw M5 X 16Hex. Screw M5 X 16
-
2233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
3250000198 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
4704904232 Warning LabelWarning Label
-
11715001707 Link KitLink Kit
-
23715002080 Tailgate Limiter KitTailgate Limiter Kit
-
25708301276 Locking HookLocking Hook
