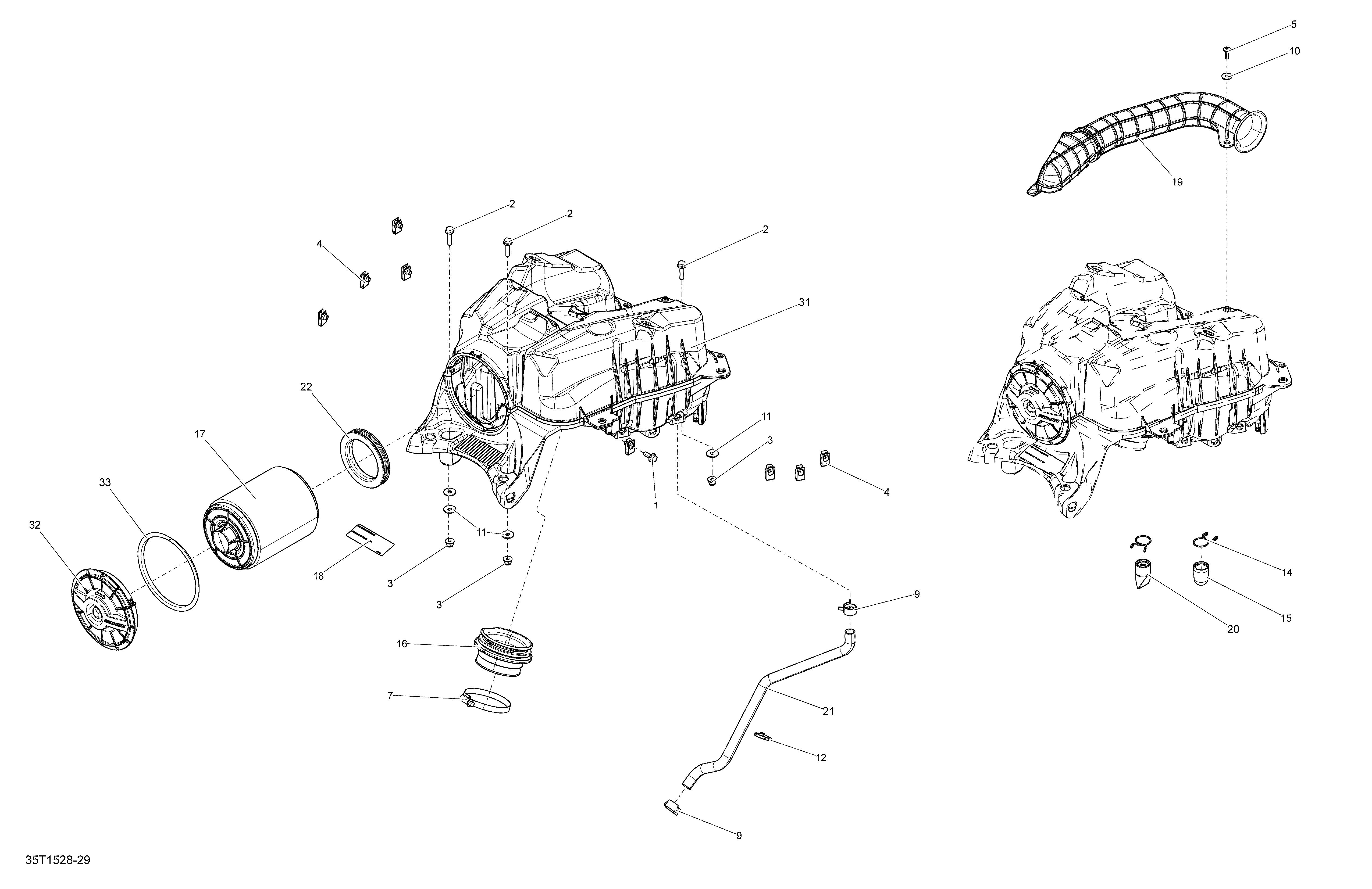

02- Air Intake _35T1528 для BRP Outlander 6X6 650 EFI - 2015
-
№АртикулНазвание
-
1207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
2207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
3233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
4250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
5250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
7293650091 Norma ClampNorma Clamp
-
9293650110 Norma ClampNorma Clamp
-
10391301600 WasherWasher
-
11250200082 Flat WasherFlat Washer
-
12414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
14707800278 Retainer ClipRetainer Clip
-
15707800080 Drain TubeDrain Tube
-
16707800333 Intake AdaptorIntake Adaptor
-
17707800371 Air FilterAir Filter
-
18707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
-
19707800375 Air Intake HoseAir Intake Hose
-
20707800404 Drain TubeDrain Tube
-
21707800453 Vent HoseVent Hose
-
22707800470 Air Filter AdaptorAir Filter Adaptor
-
31707800599 Welded Air BoxWelded Air Box
-
32707800518 Intake Silencer CapIntake Silencer Cap
-
33293300175 GasketGasket
