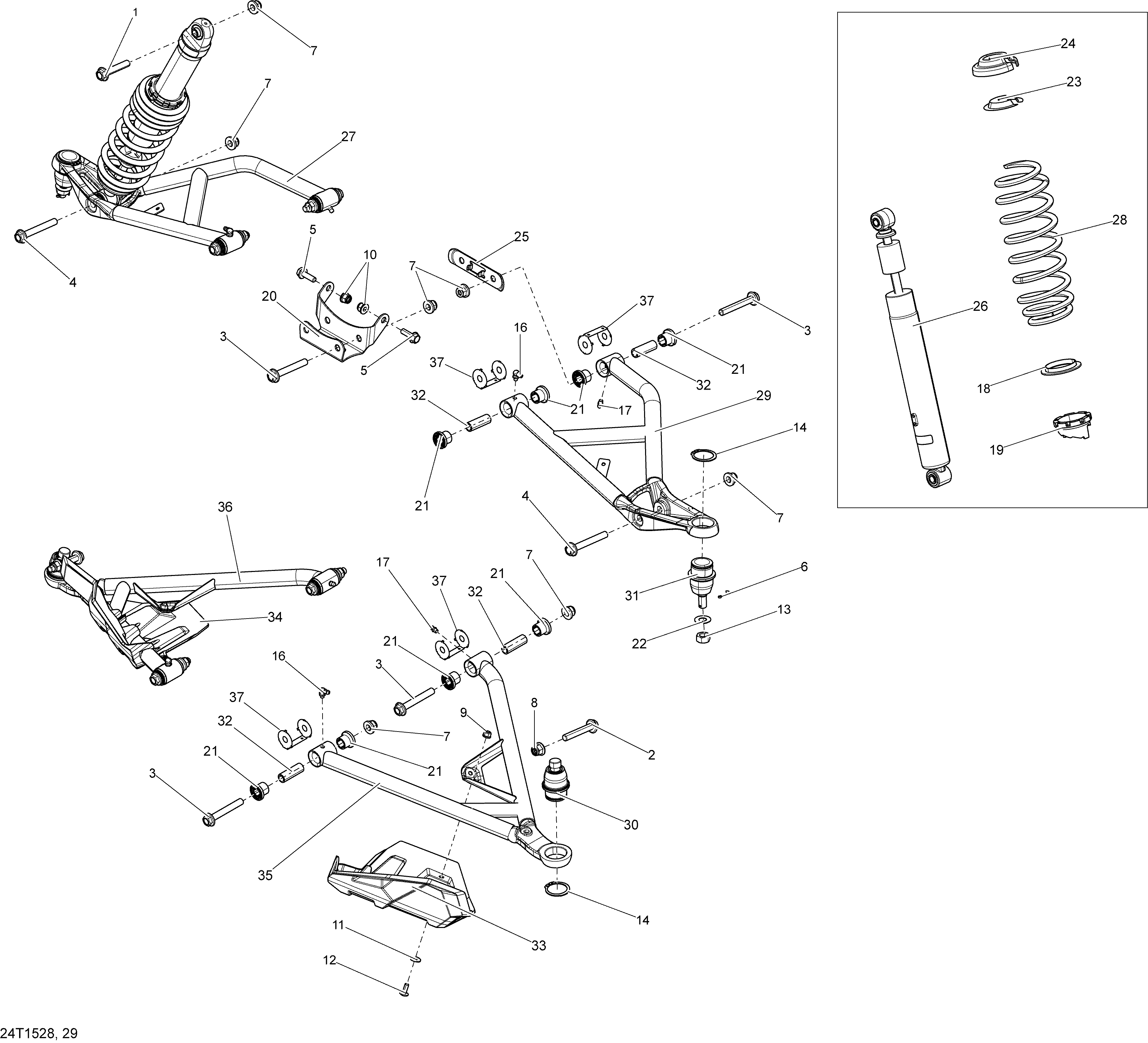

07- Front Suspension _24T1528 для BRP Outlander 6X6 650 EFI - 2015
-
№АртикулНазвание
-
1207605546 Flanged Hex. Screw M10 X 55Flanged Hex. Screw M10 X 55
-
2207606044 Hex. Flange Screw M10 X 60Hex. Flange Screw M10 X 60
-
3207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
4207607587 Flanged Hex. Screw M10 X 75Flanged Hex. Screw M10 X 75
-
5207682534 Hex. Flanged ScrewHex. Flanged Screw
-
6211400017 Cotter PinCotter Pin
-
7233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
7233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
7233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
8233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
9233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11234062670 Flat WasherFlat Washer
-
12250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
13250100099 Nut M12Nut M12
-
14293370035 CirclipCirclip
-
16293550056 Grease Fitting 90°Grease Fitting 90°
-
17408200700 Grease FittingGrease Fitting
-
18503187500 Spring GuideSpring Guide
-
19505070150 Adjustment CamAdjustment Cam
-
20705203247 Upper Front HolderUpper Front Holder
-
21706202088 CushionCushion
-
22250200086 Flat WasherFlat Washer
-
23706200785 CapCap
-
24706200881 Spring StopperSpring Stopper
-
25706200998 Front Suspension Cross PlateFront Suspension Cross Plate
-
26706201170 Shock AbsorberShock Absorber
-
27706201797 Black RH Upper ArmBlack RH Upper Arm
-
28706201173 Black SpringBlack Spring
-
29706201796 Black LH Upper ArmBlack LH Upper Arm
-
30706202044 Ball JointBall Joint
-
31706202045 Ball JointBall Joint
-
32706202133 Inner BushingInner Bushing
-
33706201829 LH Joint ProtectorLH Joint Protector
-
34706201830 RH Joint ProtectorRH Joint Protector
-
35706201874 Black LH Lower ArmBlack LH Lower Arm
-
36706201875 Black RH Lower ArmBlack RH Lower Arm
-
37706202089 Wear PlateWear Plate
