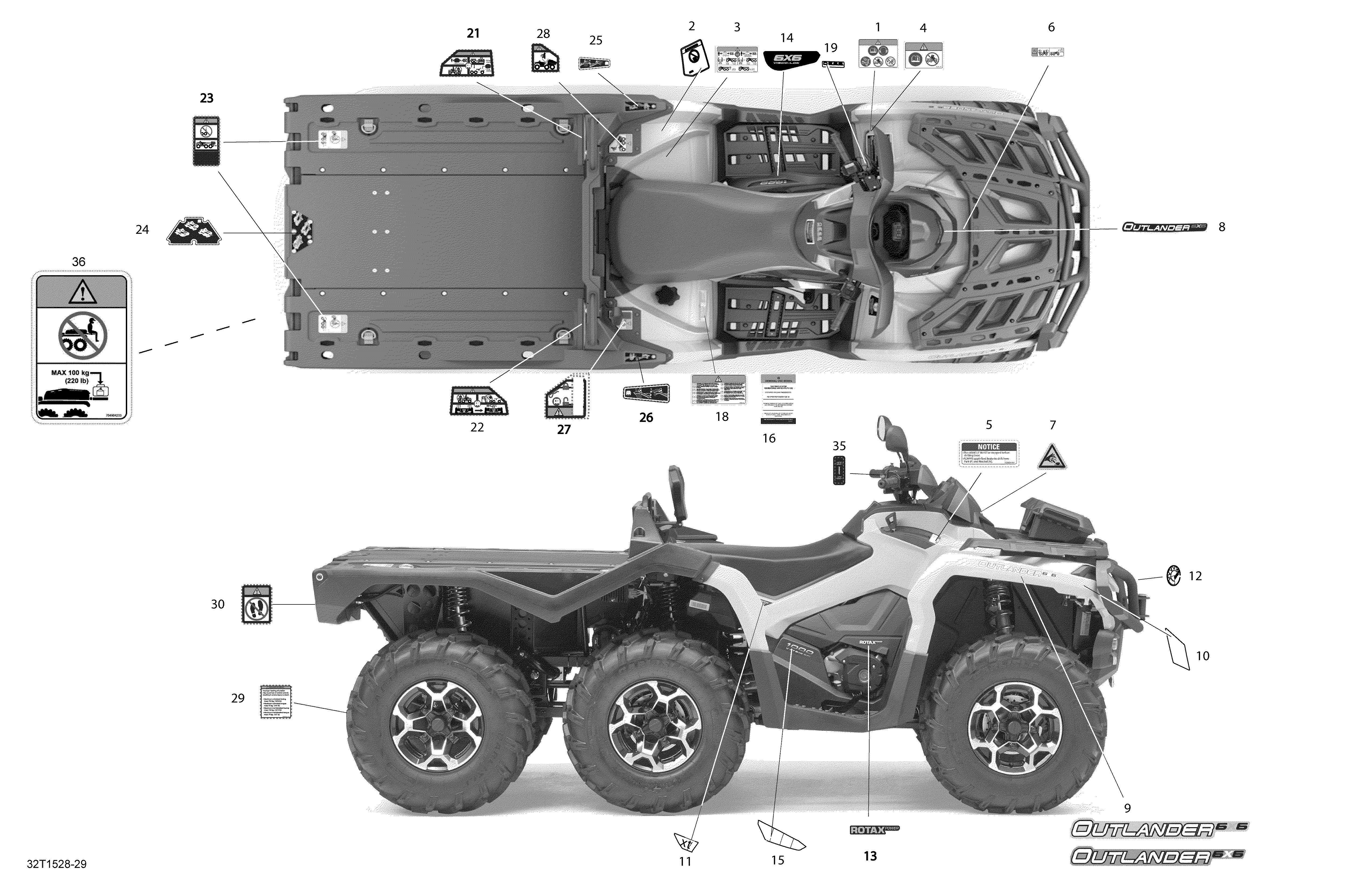

09- Decals _32T1528 для BRP Outlander 6X6 650 EFI - 2015
-
№АртикулНазвание
-
1704904168 Warning Label. Model-InternationalWarning Label. Model-International
-
1704904373 Warning Label. Model-North AmericaWarning Label. Model-North America
-
2704902775 Warning Decal, Under 16 Years OldWarning Decal, Under 16 Years Old
-
3704904157 Warning Label. Model-InternationalWarning Label. Model-International
-
3704904374 Warning Label. Model-North AmericaWarning Label. Model-North America
-
4704904169 Warning Label. Model-InternationalWarning Label. Model-International
-
4704904380 Warning Label. Model-North AmericaWarning Label. Model-North America
-
5704904383 Warning Decal, Shifting Lever. Model-North AmericaWarning Decal, Shifting Lever. Model-North America
-
6704904384 Warning Label. Model-North AmericaWarning Label. Model-North America
-
7704903688 Warning Decal, Hot LiquidWarning Decal, Hot Liquid
-
8704904152 Pod Decal. Package-DPSPod Decal. Package-DPS
-
8704904503 Pod Decal. Package-XTPod Decal. Package-XT
-
9704904418 Outlander 6X6 Decal. Model-YellowOutlander 6X6 Decal. Model-Yellow
-
9704904419 Outlander 6X6 Decal. Model-GrayOutlander 6X6 Decal. Model-Gray
-
9704904421 Outlander Decal. Model-CAMOOutlander Decal. Model-CAMO
-
10704902865 LH Front Side Reflector. Model-InternationalLH Front Side Reflector. Model-International
-
10704902866 RH Front Side Reflector. Model- InternationalRH Front Side Reflector. Model- International
-
11704902755 LH Decal, XT. Package-XTLH Decal, XT. Package-XT
-
11704902756 RH Decal, XT. Package-XTRH Decal, XT. Package-XT
-
12704904613 BRP Logo, 68 mmBRP Logo, 68 mm
-
13704904151 ROTAX DecalROTAX Decal
-
14704904149 CVT DecalCVT Decal
-
15704902234 LH Engine Cover DecalLH Engine Cover Decal
-
15704903041 RH Engine Cover DecalRH Engine Cover Decal
-
16704904171 Warning Label. Model-InternationalWarning Label. Model-International
-
16704904378 Warning Label. Model-North AmericaWarning Label. Model-North America
-
18704904174 Decal, Multi-Lingual InternationalDecal, Multi-Lingual International
-
19704903497 Decal, D.E.S.S.Decal, D.E.S.S.
-
21704904226 Warning LabelWarning Label
-
22704904227 Warning LabelWarning Label
-
23704904228 Warning LabelWarning Label
-
24704904229 Instruction LabelInstruction Label
-
25704904230 Instruction LabelInstruction Label
-
26704904231 Instruction LabelInstruction Label
-
27704904234 Warning LabelWarning Label
-
28704904236 Warning LabelWarning Label
-
29704904023 Warning LabelWarning Label
-
30704904368 Warning LabelWarning Label
-
35704904237 4x6 Switch Decal4x6 Switch Decal
-
36704904233 Warning LabelWarning Label
