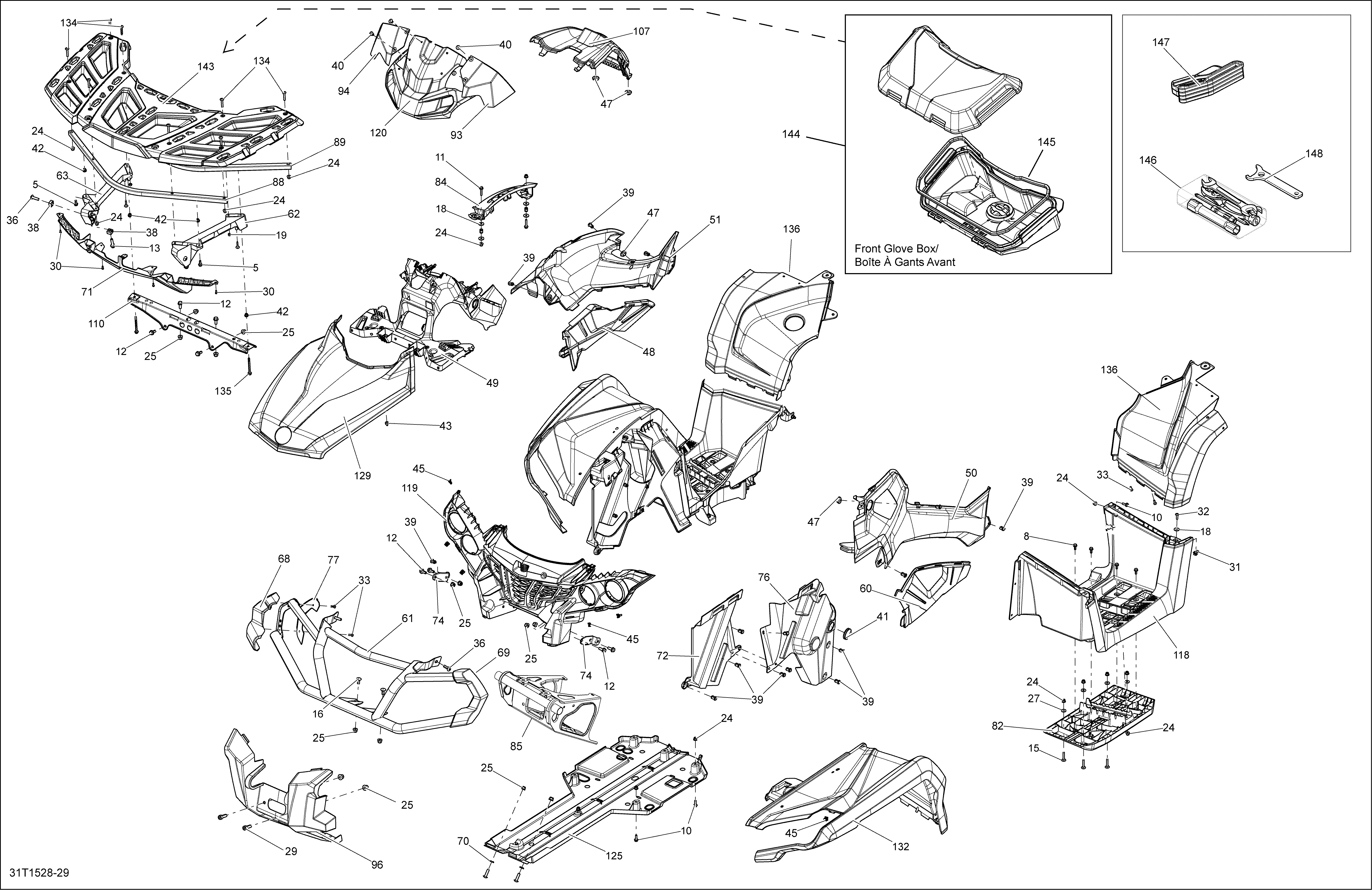

09- Body And Accessories, Front View _31T1528 для BRP Outlander 6X6 650 EFI - 2015
-
№АртикулНазвание
-
5207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
8207661684 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
10207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
12207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
13207683534 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
15207763584 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
16207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
18224061201 Flat WasherFlat Washer
-
19232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
24233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
25233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
27234062410 Flat Washer 6 mmFlat Washer 6 mm
-
29236282084 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
30241140060 Screw K40 X 10Screw K40 X 10
-
31250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
32250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
33250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
36250000544 Torx Screw M8 X 30Torx Screw M8 X 30
-
38269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
39293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
40293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
41293250242 Rubber CoverRubber Cover
-
42293450274 InsertInsert
-
43293830005 Rubber BumperRubber Bumper
-
45517302785 ClipClip
-
47705003264 GrommetGrommet
-
48705003444 Engine CoverEngine Cover
-
49715001552 Dash Support Kit. Model-North AmericaDash Support Kit. Model-North America
-
49715002245 Dash Support Kit. Model-InternationalDash Support Kit. Model-International
-
50705003446 Yellow LH Lateral PanelYellow LH Lateral Panel
-
50705005238 Camo LH PanelCamo LH Panel
-
50705007530 Quarry Gray LH Lateral PanelQuarry Gray LH Lateral Panel
-
51705009019 Yellow RH Lateral PanelYellow RH Lateral Panel
-
51705009116 Quarry Gray RH Lateral PanelQuarry Gray RH Lateral Panel
-
51705009118 CAMO RH Lateral PanelCAMO RH Lateral Panel
-
60705004147 LH Extension PannelLH Extension Pannel
-
61705005018 Front Bumper. Package-XTFront Bumper. Package-XT
-
62705006700 LH Support Ass'yLH Support Ass'y
-
63705006701 RH Support Ass'yRH Support Ass'y
-
68705004409 Cap (Front LH) (Rear RH). Package-XTCap (Front LH) (Rear RH). Package-XT
-
69705004410 Cap (Front RH) (Rear LH). Package-XTCap (Front RH) (Rear LH). Package-XT
-
70705004497 RingRing
-
71705004523 Lugage Rack MouldingLugage Rack Moulding
-
72705004558 RH Inner FenderRH Inner Fender
-
72705004557 LH Inner FenderLH Inner Fender
-
74705004565 Lower Fender SupportLower Fender Support
-
76705004587 RH Inner FenderRH Inner Fender
-
76705004588 LH Inner FenderLH Inner Fender
-
77705004987 Bracket Cover. Package-XTBracket Cover. Package-XT
-
82705005254 LH. FootboardLH. Footboard
-
82705005253 RH. FootboardRH. Footboard
-
84705005257 IndicatorIndicator
-
85705004165 Front Bumper SupportFront Bumper Support
-
88705005469 TubeTube
-
89705005470 TubeTube
-
93705006134 LH Air DeflectorLH Air Deflector
-
94705006135 RH Air DeflectorRH Air Deflector
-
96705006299 Front Guard PlateFront Guard Plate
-
107715001765 Dash KitDash Kit
-
110705006812 Cargo Rack Center SupportCargo Rack Center Support
-
118705007040 LH FootrestLH Footrest
-
118705007039 RH FootrestRH Footrest
-
119705007041 Front FaciaFront Facia
-
120705007095 Gauge SupportGauge Support
-
125705007553 Central Skid PlateCentral Skid Plate
-
129715002777 Yellow Hood Kit. Model-North AmericaYellow Hood Kit. Model-North America
-
129715002779 Yellow Hood Kit. Model-InternationalYellow Hood Kit. Model-International
-
129715002774 CAMO Hood Kit. Model-North AmericaCAMO Hood Kit. Model-North America
-
129715002776 CAMO Hood Kit. Model-InternationalCAMO Hood Kit. Model-International
-
129715002780 Quarry Gray Hood Kit. Model-North AmericaQuarry Gray Hood Kit. Model-North America
-
129715002782 Quarry Gray Hood Kit. Model-InternationalQuarry Gray Hood Kit. Model-International
-
132715002743 Yellow LH Front Fender Kit. Model-North AmericaYellow LH Front Fender Kit. Model-North America
-
132715002745 Yellow LH Front Fender Kit. Model-InternationalYellow LH Front Fender Kit. Model-International
-
132715002739 CAMO LH Front Fender Kit. Model-North AmericaCAMO LH Front Fender Kit. Model-North America
-
132715002741 CAMO LH Front Fender Kit. Model-InternationalCAMO LH Front Fender Kit. Model-International
-
132715002746 Quarry Gray LH Front Fender Kit. Model-North AmericaQuarry Gray LH Front Fender Kit. Model-North America
-
132715002749 Quarry Gray LH Front Fender Kit. Model-InternationalQuarry Gray LH Front Fender Kit. Model-International
-
132715001510 Yellow RH Front Fender Kit. Model-North AmericaYellow RH Front Fender Kit. Model-North America
-
132715002208 Yellow RH Front Fender Kit. Model-InternationalYellow RH Front Fender Kit. Model-International
-
132715001516 Camo RH Front Fender Kit. Model-North AmericaCamo RH Front Fender Kit. Model-North America
-
132715002753 Camo RH Front Fender Kit. Model-InternationalCamo RH Front Fender Kit. Model-International
-
132715002209 Grey RH Front Fender Kit. Model-North AmericaGrey RH Front Fender Kit. Model-North America
-
132715002211 Grey RH Front Fender Kit. Model-InternationalGrey RH Front Fender Kit. Model-International
-
134250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
135207567044 Hex. Flanged Screw M6x70, Scotch GripHex. Flanged Screw M6x70, Scotch Grip
-
136715002760 Grey LH Rear Fender. Model-North AmericaGrey LH Rear Fender. Model-North America
-
136715002762 Grey LH Rear Fender. Model-InternationalGrey LH Rear Fender. Model-International
-
136715002757 Yellow LH Rear Fender. Model-North AmericaYellow LH Rear Fender. Model-North America
-
136715002759 Yellow LH Rear Fender. Model-InternationalYellow LH Rear Fender. Model-International
-
136715002754 CAMO-LH Rear Fender. Model-North AmericaCAMO-LH Rear Fender. Model-North America
-
136715002756 CAMO-LH Rear Fender. Model-InternationalCAMO-LH Rear Fender. Model-International
-
136715002770 Grey RH Rear Fender. Model-North AmericaGrey RH Rear Fender. Model-North America
-
136715002771 Grey RH Rear Fender. Model-InternationalGrey RH Rear Fender. Model-International
-
136715002772 Yellow RH Rear Fender. Model-North AmericaYellow RH Rear Fender. Model-North America
-
136715002773 Yellow RH Rear Fender. Model-InternationalYellow RH Rear Fender. Model-International
-
136715002768 CAMO-RH Rear Fender. Model-North AmericaCAMO-RH Rear Fender. Model-North America
-
136715002769 CAMO-RH Rear Fender. Model-InternationalCAMO-RH Rear Fender. Model-International
-
143715001852 Rack Kit. Model-North AmericaRack Kit. Model-North America
-
143715002240 Rack Kit. Model-InternationalRack Kit. Model-International
-
144708200408 Box Ass'yBox Ass'y
-
145293250312 Neoprene SealNeoprene Seal
-
146704700148 Tool KitTool Kit
-
147710002270 Remote ControlRemote Control
-
148529000035 Adjustement WrenchAdjustement Wrench
