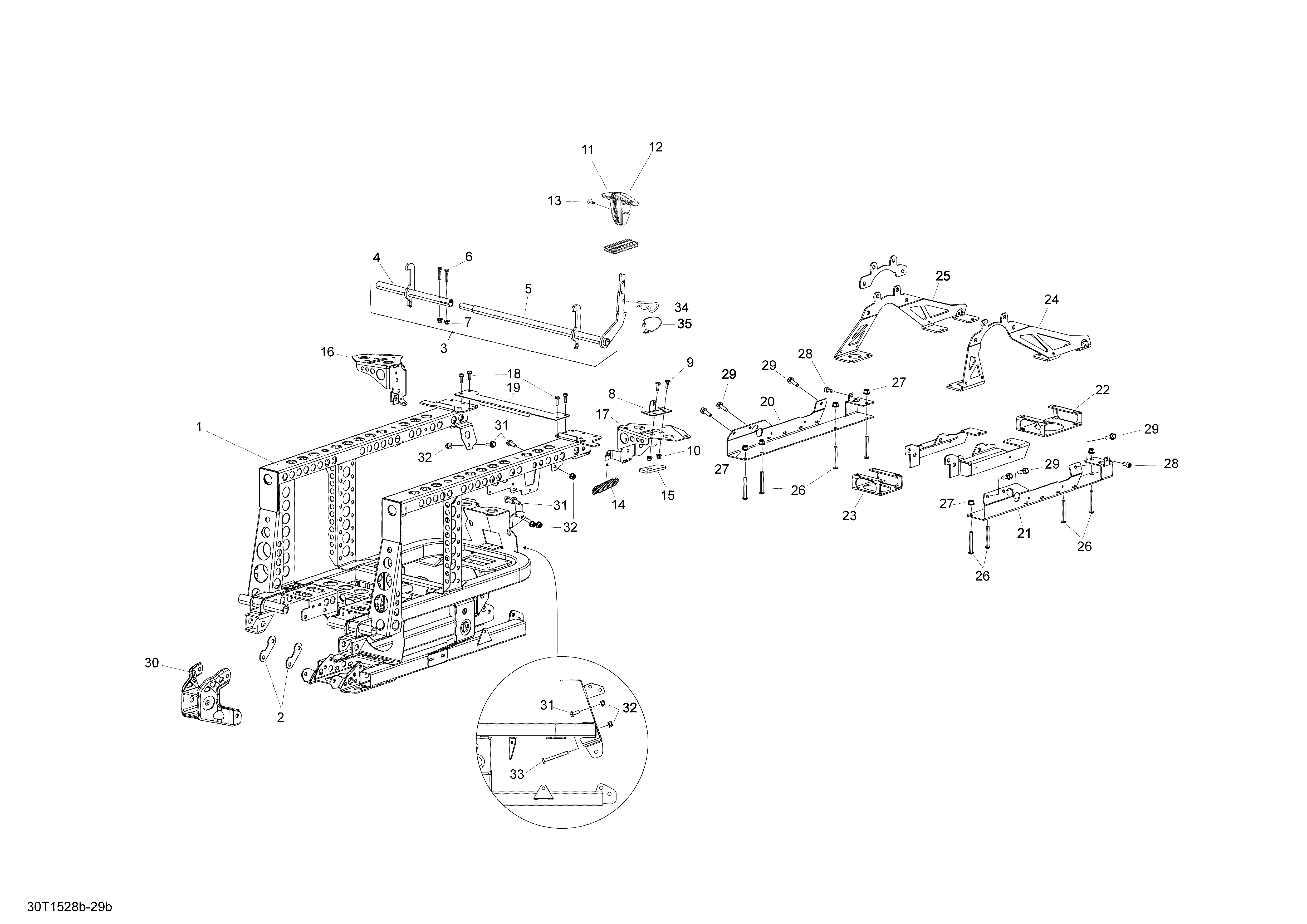

09- Frame _30T1528b для BRP Outlander 6X6 650 EFI - 2015
-
№АртикулНазвание
-
1705204221 Rear Frame PaintedRear Frame Painted
-
2705203564 Support PlateSupport Plate
-
4705203669 LH Tube WeldedLH Tube Welded
-
5705203670 RH Tube WeldedRH Tube Welded
-
6207063044 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8705203834 Lever SupportLever Support
-
9250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11705008420 Left Half KnobLeft Half Knob
-
12705008048 Right Half KnobRight Half Knob
-
14415107100 SpringSpring
-
15708301280 Rubber CollarRubber Collar
-
16705203611 Rear Fender Support, Weld. LHRear Fender Support, Weld. LH
-
17705203612 Rear Fender Support, Weld. RHRear Fender Support, Weld. RH
-
18250000331 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
19705203954 Filler PlateFiller Plate
-
20705203724 Lower Beam Reinforcement LH WeldLower Beam Reinforcement LH Weld
-
21705203725 Lower Beam Reinforcement RH WeldLower Beam Reinforcement RH Weld
-
22705203726 Support Plate FrontSupport Plate Front
-
23705203727 Support Plate RearSupport Plate Rear
-
24705203728 Differential Support Reinforcement LHDifferential Support Reinforcement LH
-
25705203729 Differential Support Reinforcement RHDifferential Support Reinforcement RH
-
26250000383 Torx Screw M8 X 60, Scotch GripTorx Screw M8 X 60, Scotch Grip
-
27233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
28250000678 Forming Screw HD.DIN.7500EForming Screw HD.DIN.7500E
-
29250000376 Hex Forming Screw DIN.7500DHex Forming Screw DIN.7500D
-
30715002812 Trailer HookTrailer Hook
-
31207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
32233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
33207087544 Hex. Screw M8 X 75Hex. Screw M8 X 75
-
34505073670 Spring CotterSpring Cotter
-
35293750069 Retainer CableRetainer Cable
