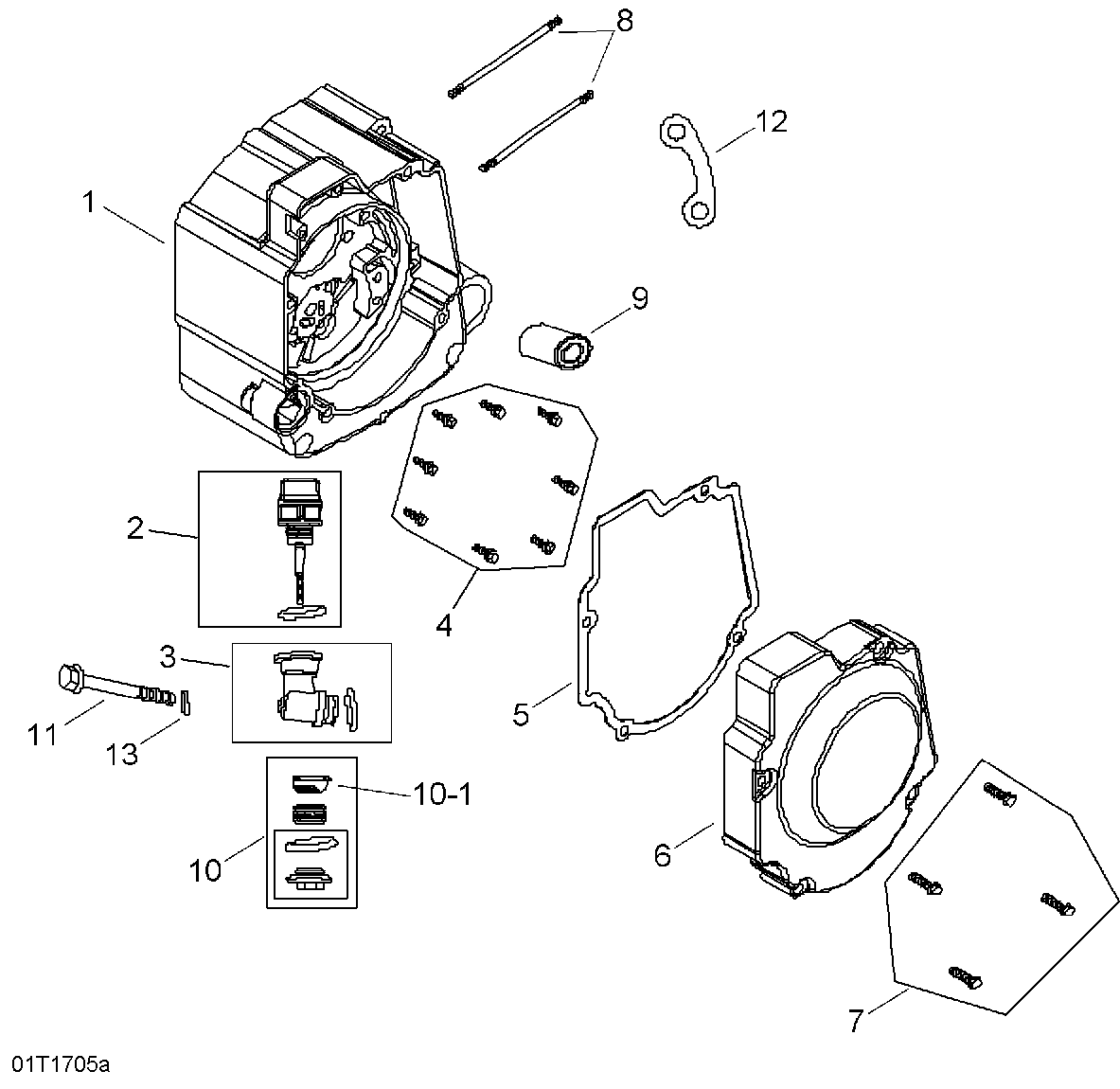

01- Crankcase, Right для BRP 2- DS 90 - 2018
-
№АртикулНазвание
-
1V11100CJF030LL RH CrankcaseRH Crankcase
-
2V15650CJF010LL Oil Level GaugeOil Level Gauge
-
3V11165CJF010LL Gauge ConduitGauge Conduit
-
4207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
5V11393CJF000 GasketGasket
-
6V11330CJF020LL CoverCover
-
7207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
8V9100106193 Stud Bolt M6 X 193Stud Bolt M6 X 193
-
9V11103CJF010 Rubber BushingRubber Bushing
-
10V12361GYK000 Cap Tappet AdjustingCap Tappet Adjusting
-
10-1V15421GYK000 Oil Filter ScreenOil Filter Screen
-
11207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
12V11392CJF010 SupportSupport
-
13V9460805015 Oil RingOil Ring
