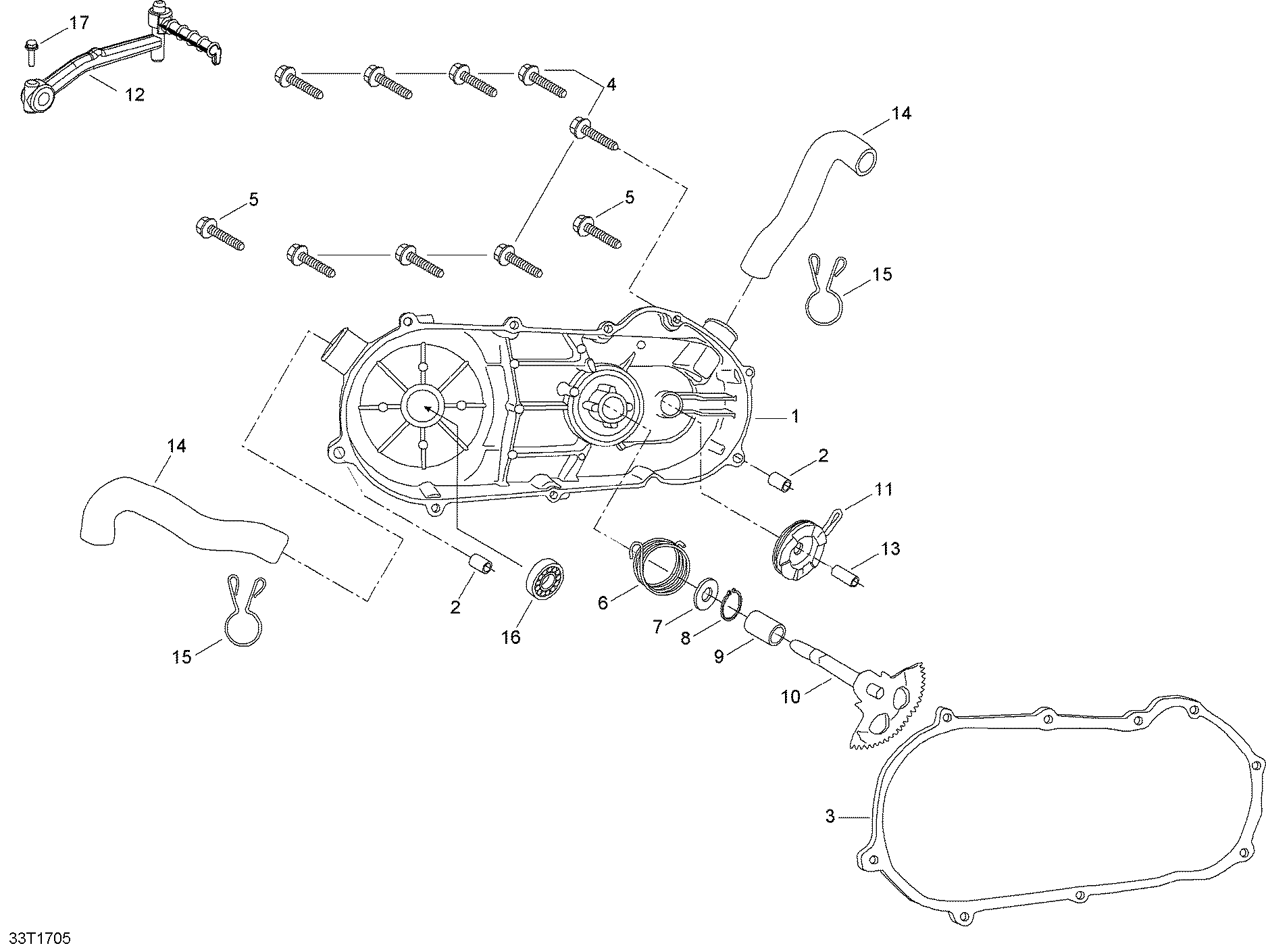

05- CVT Cover And Kick Starter для BRP 2- DS 90 - 2018
-
№АртикулНазвание
-
1V13341CJF020LL CVT CoverCVT Cover
-
2A9430110140 Dowel PinDowel Pin
-
3V11359CJF000 CVT Cover GasketCVT Cover Gasket
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
6V282814DM00 Spring TorsionSpring Torsion
-
7V9410415010LL WasherWasher
-
8V9451015000 CirclipCirclip
-
9V282544DM00 Rubber BushingRubber Bushing
-
10V282504DM020LL Kick ShaftKick Shaft
-
11V2823A4DM02 Pinion Ass'y, KickPinion Ass'y, Kick
-
12V28301DGF020LL Kick StarterKick Starter
-
13V281024DM010 Shaft Idle GearShaft Idle Gear
-
14V11345DGF030LL CVT DuckCVT Duck
-
15V95002025030010LL ClipClip
-
16V96100638ZZ BearingBearing
-
17207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
