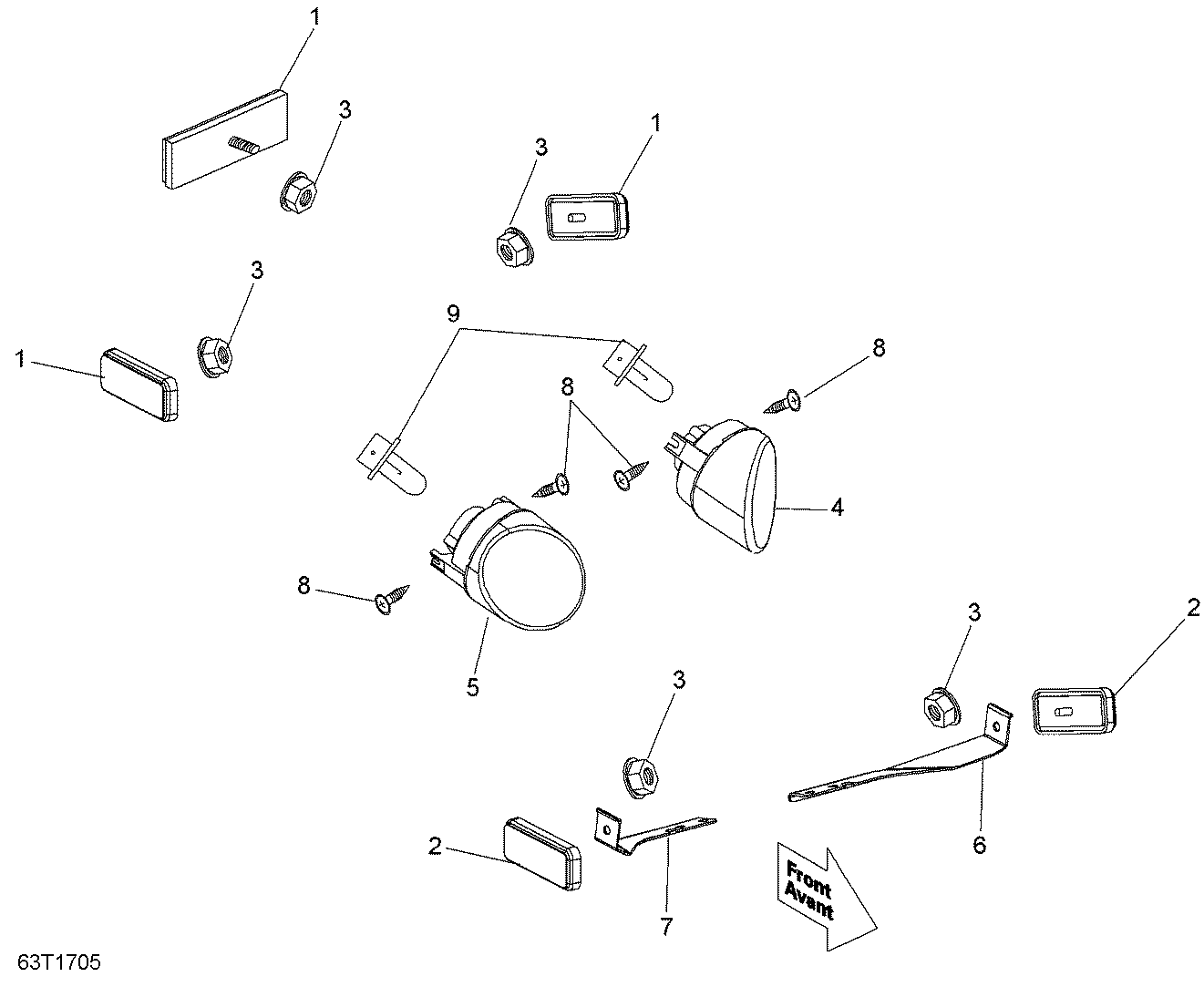

10- Headlights And Reflectors для BRP 2- DS 90 - 2018
-
№АртикулНазвание
-
1V64501MAA010LL Reflector, RedReflector, Red
-
2V64502DGF040LL Reflector, YellowReflector, Yellow
-
3232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4V80112DGF050LL LH HeadlightLH Headlight
-
5V80212DGF050LL RH HeadlightRH Headlight
-
6V50292DGF020 LH Front Reflector BracketLH Front Reflector Bracket
-
7V50295DGF010 RH Front Reflector BracketRH Front Reflector Bracket
-
8V9600004012010LL Round Head BoltRound Head Bolt
-
9V33100DGF000 LightLight
Все узлы модели:
- 00- Model Numbers
- 01- Chain Tensioner
- 01- Crankcase, Left
- 01- Crankcase, Right
- 01- Crankshaft and Pistons
- 01- Cylinder
- 01- Cylinder Head And Intake Manifold
- 01- Exhaust System
- 02- Carburetor And Air Cleaner
- 02- Fuel Tank
- 02- Oil Pump
- 03- Magneto And Electric Starter
- 05- Clutch
- 05- CVT Cover And Kick Starter
- 05- Gear Box
- 05- Shift Lever
- 06- Brakes
- 07- Front Suspension Arm
- 07- Handlebar
- 07- Shocks
- 07- Steering
- 07- Wheels And Tires
- 08- Chain
- 08- Drive System, Rear
- 09- Accessories And Decals
- 09- Body And Accessories
- 09- Frame
- 09- Seat
- 09- Tools
- 10- Electrical Components
- • 10- Headlights And Reflectors
- 10- Indicator Lights And Cover
- 10- Main Harness
