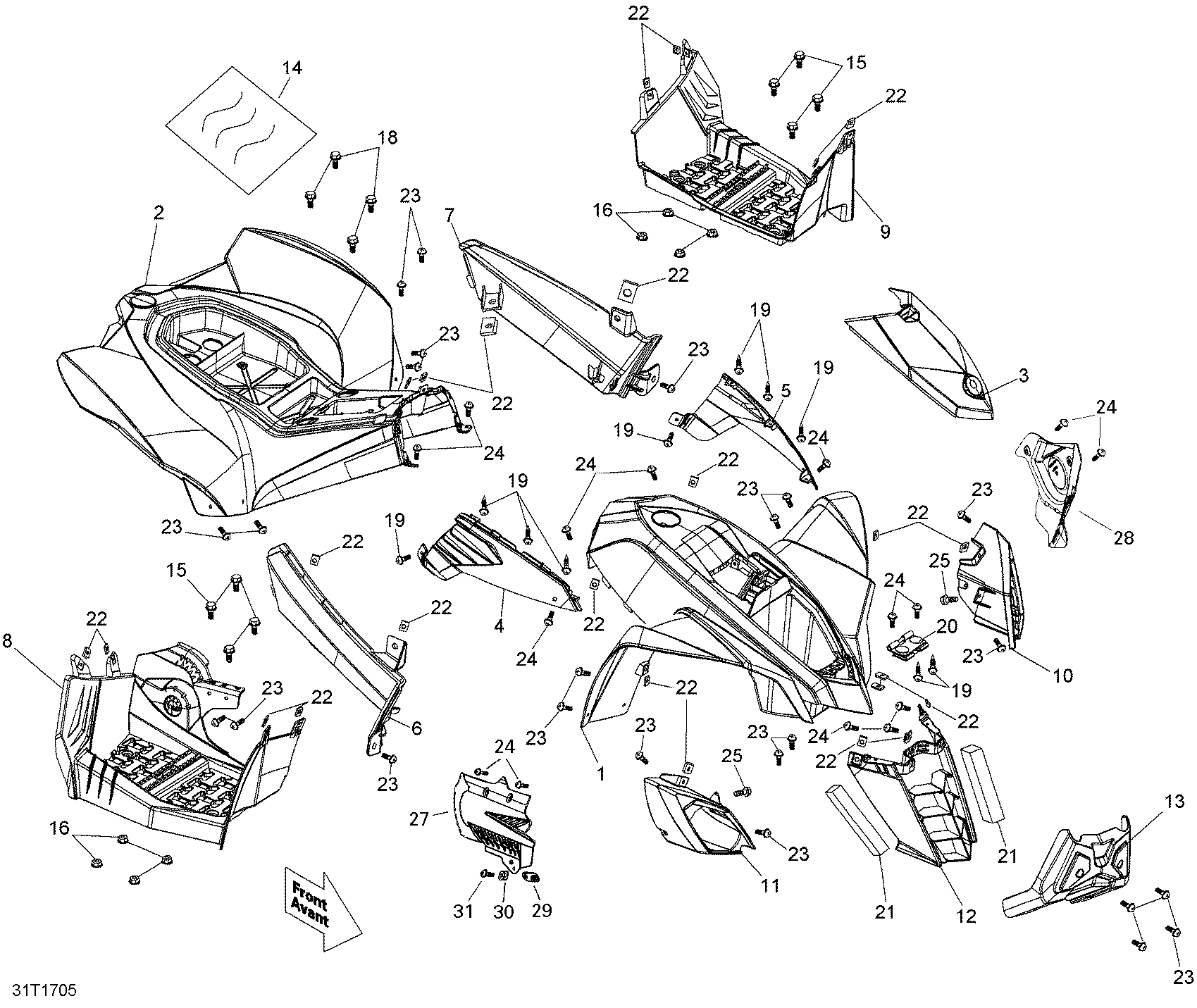

09- Body And Accessories для BRP 2- DS 90 - 2018
-
№АртикулНазвание
-
1V82010DGF020 Front Fender, Red. North AmericaFront Fender, Red. North America
-
1V82011DGF030 Front Fender, Red. InternationalFront Fender, Red. International
-
1V82110DGF000WH Front Fender, White. North America, Blue DecalFront Fender, White. North America, Blue Decal
-
1V82110DGF000RD Front Fender, White. North America, Red DecalFront Fender, White. North America, Red Decal
-
2V82012DGF030 Rear Fender, Red. North AmericaRear Fender, Red. North America
-
2V82013DGF020 Rear Fender, Red. InternationalRear Fender, Red. International
-
2V82012DGF040 Rear Fender, White. North AmericaRear Fender, White. North America
-
3V82103DGF010 Cargo CoverCargo Cover
-
4V80104DGF010BKLL RH Front Side PanelRH Front Side Panel
-
5V80105DGF010BKLL LH Front Side PanelLH Front Side Panel
-
6V80116DGF000BKLL RH Rear Side PanelRH Rear Side Panel
-
7V80117DGF000BKLL LH Rear Side PanelLH Rear Side Panel
-
8V80106DGF020BKLL RH FootrestRH Footrest
-
9V80107DGF020BKLL LH FootrestLH Footrest
-
10V80110DGF020BKLL LH Headlamp HousingLH Headlamp Housing
-
11V80111DGF020BKLL RH Headlamp HousingRH Headlamp Housing
-
12V80114DGF000BK Front GrillFront Grill
-
13V80113DGF010BKLL Skid PlateSkid Plate
-
14V18450DGF000LL Heat Insulation SheetHeat Insulation Sheet
-
15207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
16232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
18207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
19V9309304012LL Tapping ScrewTapping Screw
-
20V50262DGF030 Cargo Cover HingeCargo Cover Hinge
-
21V81146DGF020 Waterproof StripWaterproof Strip
-
22V9034506000KLL Spring NutSpring Nut
-
23V930000601501LL Round Head ScrewRound Head Screw
-
24V930000601201LL Round Head ScrewRound Head Screw
-
25V9200006017 Round Head ScrewRound Head Screw
-
27V80118DGF00BK RH CoverRH Cover
-
28V80119DGF00BK LH CoverLH Cover
-
29V50302DGF000 BracketBracket
-
30V15235DGF030LL Cushion RubberCushion Rubber
-
31V9300006020 Round Head Bolt M6x20Round Head Bolt M6x20
