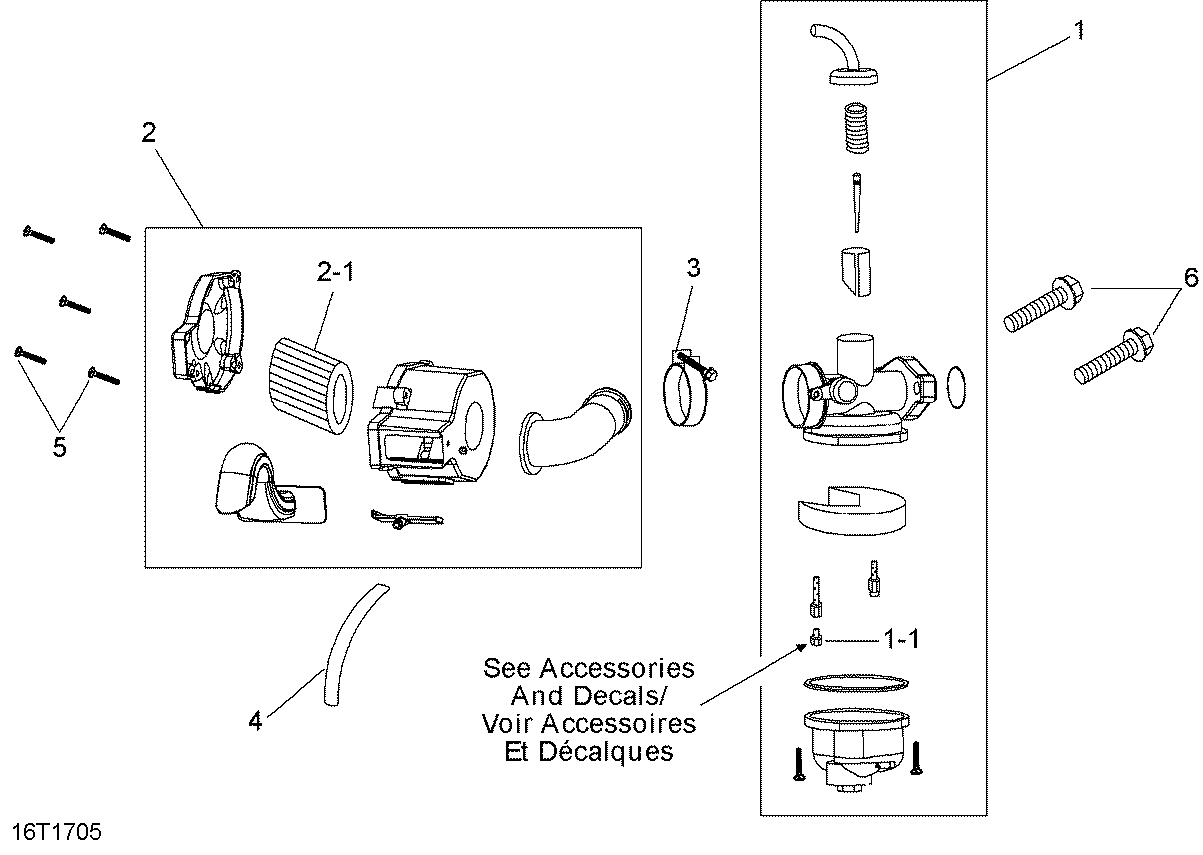

02- Carburetor And Air Cleaner для BRP 2- DS 90 - 2018
-
№АртикулНазвание
-
1V16100DGF000 Carburetor Ass'yCarburetor Ass'y
-
2V17200DGF050 Air Silencer Ass'yAir Silencer Ass'y
-
2-1V17205DGF060 Air Cleaner Element SetAir Cleaner Element Set
-
3V17208DGF010 ClampClamp
-
5V9300005016010LL Round Head BoltRound Head Bolt
-
6207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
