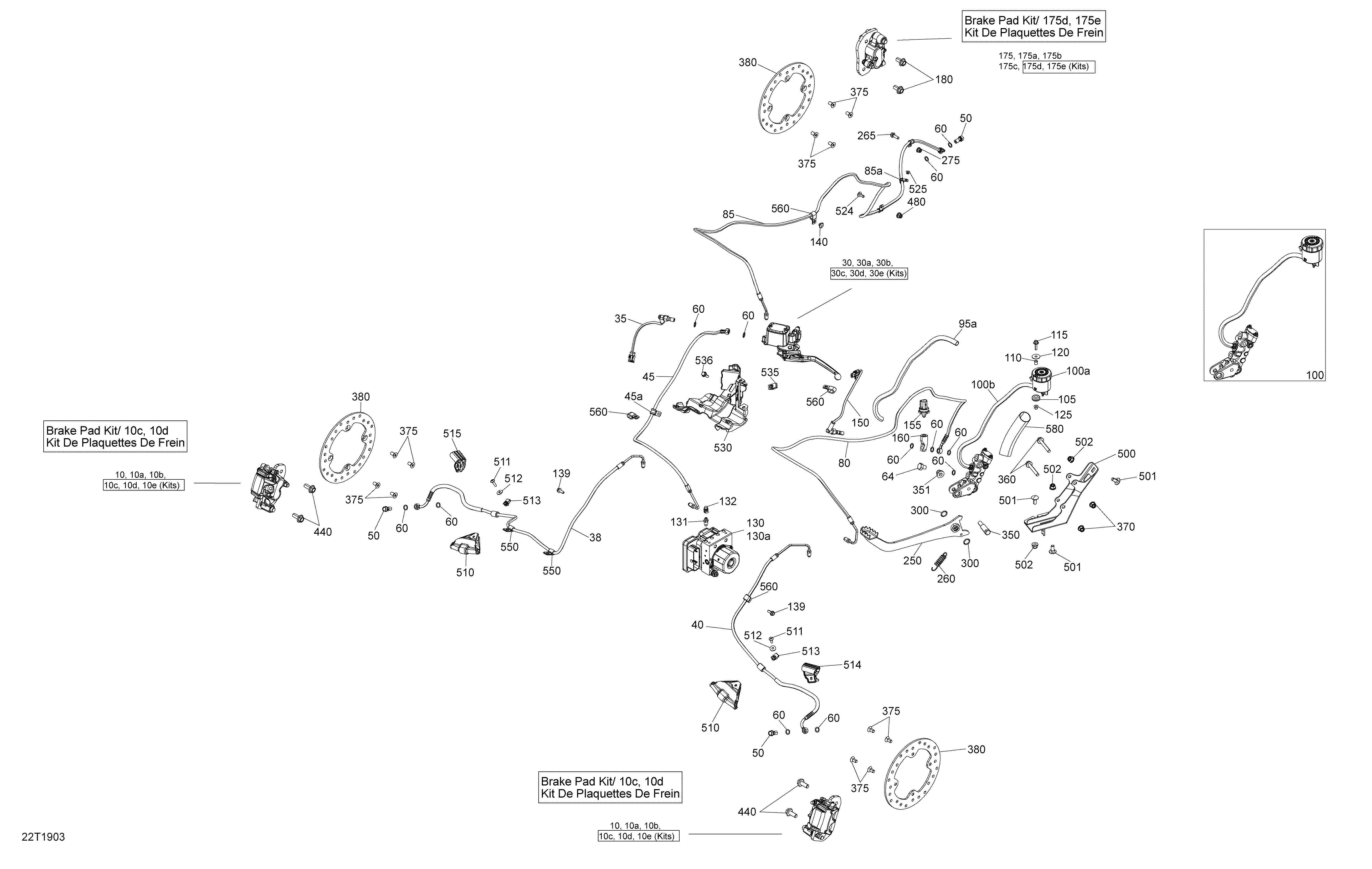

06- Brakes для BRP 005 - Outlander MAX 570 EFI - DPS_XT - T3 - 2019
-
№АртикулНазвание
-
10705600861 RH Front Caliper Ass'y. Includes 10a to 10bRH Front Caliper Ass'y. Includes 10a to 10b
-
10a705601017 Bleeding ScrewBleeding Screw
-
10b705601018 SpringSpring
-
10c705601014 RH Brake Pad KitRH Brake Pad Kit
-
10d705601016 Pin SetPin Set
-
10705600862 LH Front Caliper Ass'y. Includes 20a to 20bLH Front Caliper Ass'y. Includes 20a to 20b
-
10a705601017 Bleeding ScrewBleeding Screw
-
10b705601018 SpringSpring
-
10c705601015 LH Brake Pad KitLH Brake Pad Kit
-
10d705601016 Pin SetPin Set
-
30705601431 LH Front Master Cylinder Ass'y. Includes 30 to 30bLH Front Master Cylinder Ass'y. Includes 30 to 30b
-
30a415129356 Screw M4 X 20Screw M4 X 20
-
30b250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
30c705601013 Lever SetLever Set
-
30d507032477 Clamp And Screw KitClamp And Screw Kit
-
30e219800096 Cap SetCap Set
-
35705601669 Brake SwitchBrake Switch
-
38705601572 RH Front HoseRH Front Hose
-
40705601573 LH Front HoseLH Front Hose
-
45705601574 Brake Hose. Includes 45 to 45aBrake Hose. Includes 45 to 45a
-
45a293650256 ClampClamp
-
50705600609 Banjo Bolt (M10 x 1.25 thread)Banjo Bolt (M10 x 1.25 thread)
-
60705601628 Copper WasherCopper Washer
-
64250000163 Hex. Screw M10 X 14, Scotch GripHex. Screw M10 X 14, Scotch Grip
-
80705601575 Brake HoseBrake Hose
-
85705601577 RH Rear Hose. Includes 85 to 85aRH Rear Hose. Includes 85 to 85a
-
85a293650256 ClampClamp
-
95a415079900 Tubing 10 mmTubing 10 mm
-
100705601274 Rear Master Cylinder Ass'y. Includes 100 to 100bRear Master Cylinder Ass'y. Includes 100 to 100b
-
100a705601020 Oil TankOil Tank
-
100b705601019 Housing Oil HoseHousing Oil Hose
-
105414036300 GrommetGrommet
-
110293900112 BushingBushing
-
115207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
120224060201 Flat WasherFlat Washer
-
130703500984 VCM Module. Includes 130 to 130aVCM Module. Includes 130 to 130a
-
130a710003279 Damper ShockDamper Shock
-
131705600502 Bleeder ScrewBleeder Screw
-
132705601190 Bleeder Bolt CapBleeder Bolt Cap
-
135710003279 Damper ShockDamper Shock
-
139210261640 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
140390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
150705601670 Dual Brake SwitchDual Brake Switch
-
155705601617 Banjo CouplingBanjo Coupling
-
160705601578 Pressure SensorPressure Sensor
-
175705600859 RH Rear Caliper Ass'y. Includes 175 to 175bRH Rear Caliper Ass'y. Includes 175 to 175b
-
175a705601017 Bleeding ScrewBleeding Screw
-
175b705601018 SpringSpring
-
175c705601016 Pin SetPin Set
-
175d705601014 RH Brake Pad KitRH Brake Pad Kit
-
180207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
250705601155 Brake PedalBrake Pedal
-
260705600792 Brake Pedal SpringBrake Pedal Spring
-
265207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
275233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
300293300144 O-RingO-Ring
-
350250000513 Shoulder Screw M10Shoulder Screw M10
-
351233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
360207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
370233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
375235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
380705600999 Disc BrakeDisc Brake
-
440207502546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
480233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
500705202000 Bracket Brake PedalBracket Brake Pedal
-
501207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
502233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
510705600962 Front Hose ProtectorFront Hose Protector
-
511250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
512250200025 Washer M5Washer M5
-
513250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
524250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
525390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
530705600983 Front Hose BracketFront Hose Bracket
-
535250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
536207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
540518321570 Open ClampOpen Clamp
-
541390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
550293650219 ClampClamp
-
560293650220 ClampClamp
-
580409902200 Tubing 25 mmTubing 25 mm
