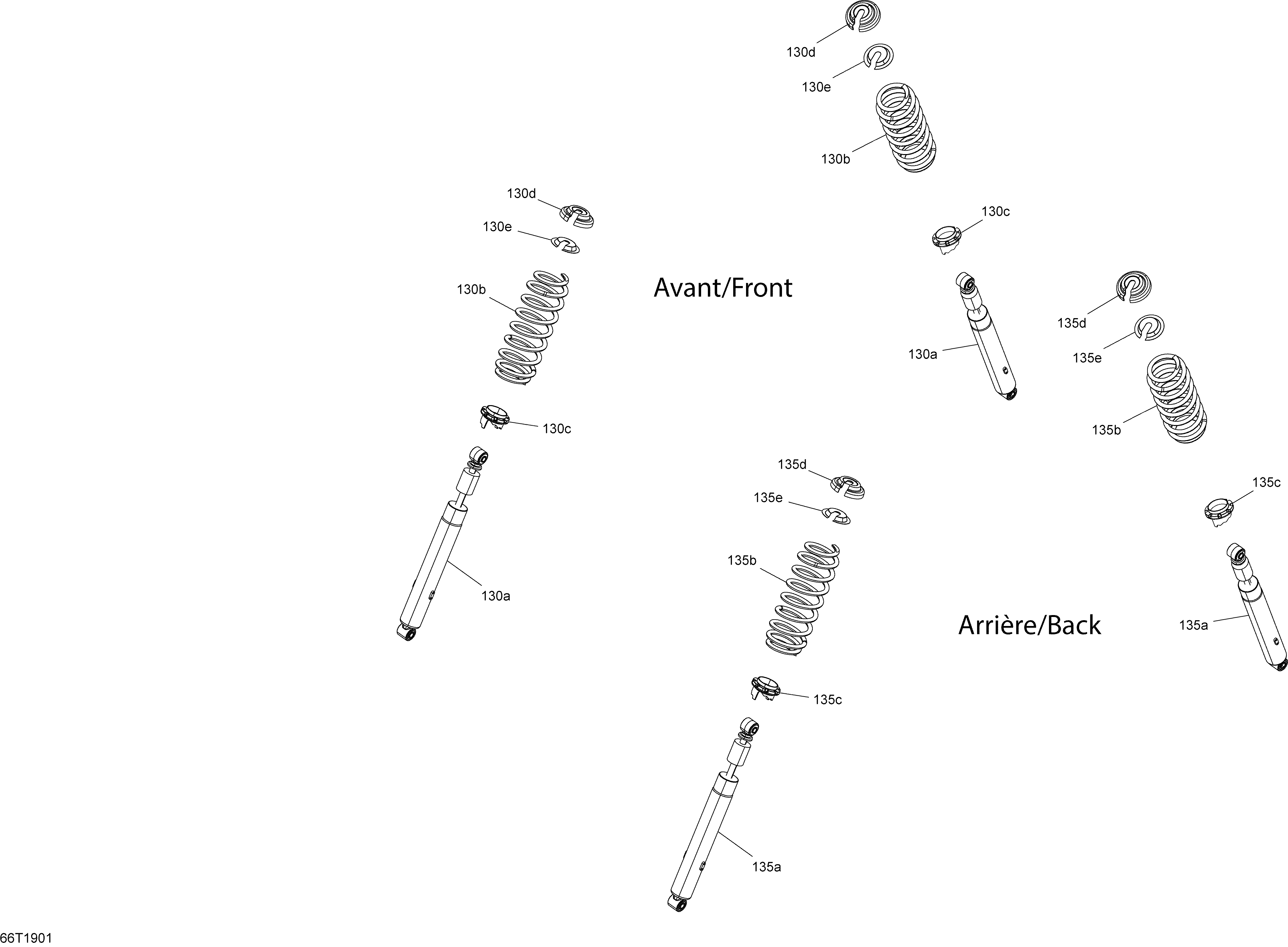

07- Shocks - DPS - XT для BRP 005 - Outlander MAX 570 EFI - DPS_XT - T3 - 2019
-
№АртикулНазвание
-
130a706201163 Front ShockFront Shock
-
130b706202675 Black SpringBlack Spring
-
130c706002356 Adjuster RingAdjuster Ring
-
130d706200881 Spring StopperSpring Stopper
-
130e706200785 CapCap
-
135a706001524 Rear ShockRear Shock
-
135b706002543 Black SpringBlack Spring
-
135c706002356 Adjuster RingAdjuster Ring
-
135d706200881 Spring StopperSpring Stopper
-
135e706200785 CapCap
