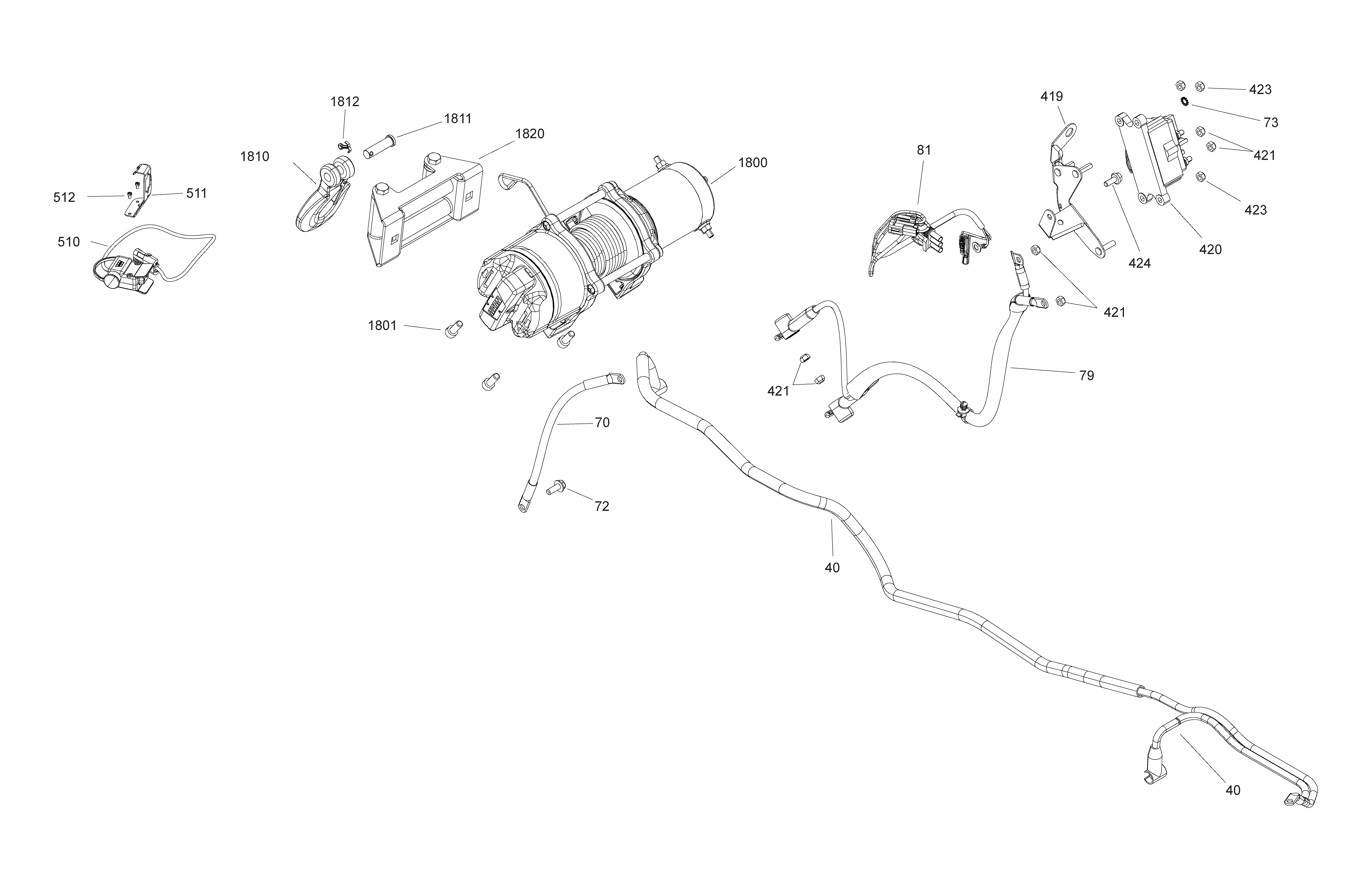

10- Electrical - Winch для BRP 005 - Outlander MAX 570 EFI - DPS_XT - T3 - 2019
-
№АртикулНазвание
-
40710004375 Connector Ass'yConnector Ass'y
-
70710005163 Negative CableNegative Cable
-
72210261640 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
73234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
79710005164 Winch CableWinch Cable
-
81710005246 Winch CableWinch Cable
-
419710004935 Module SupportModule Support
-
420710001000 Winch SolenoidWinch Solenoid
-
421232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
423232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
424207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
510710005241 Winch SwitchWinch Switch
-
511710004670 Black Support. North AmericaBlack Support. North America
-
511710002631 Winch Interrupter Support. T3Winch Interrupter Support. T3
-
512250000153 Hex. Cap Screw 6-32 X 1/4''Hex. Cap Screw 6-32 X 1/4''
-
1800705008546 WinchWinch
-
1801250000746 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
1802234181401 Lock Washer 8 mmLock Washer 8 mm
-
1810705002329 HookHook
-
1811250400021 Clevis PinClevis Pin
-
1812250400022 Cotter PinCotter Pin
-
1820715000011 Winch RollerWinch Roller
