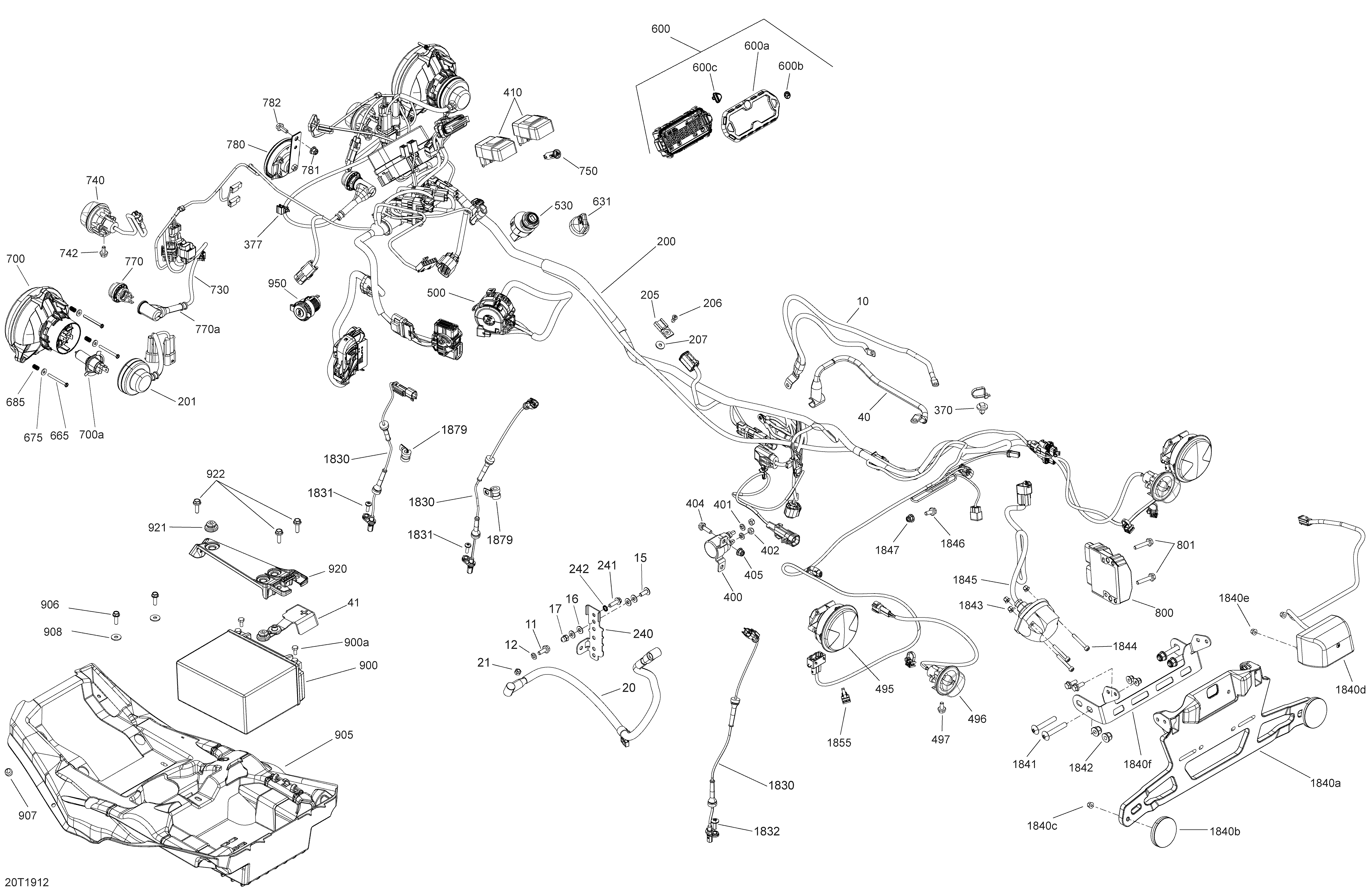

10- Electrical - 570 EFI - Package DPS & XT (ABS) для BRP 005 - Outlander MAX 570 EFI - DPS_XT - T3 - 2019
-
№АртикулНазвание
-
10710004382 Ground CableGround Cable
-
11207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
12234161601 Lock Washer Helical M6Lock Washer Helical M6
-
15250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
16224061121 Flat WasherFlat Washer
-
17232361493 Domed Nut M6Domed Nut M6
-
20710004377 Positive CablePositive Cable
-
21232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
41710002569 CapCap
-
40710004376 Positive CablePositive Cable
-
200710006169 HarnessHarness
-
201710005780 Light CableLight Cable
-
205270000141 ClipClip
-
206390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
207391301600 WasherWasher
-
211710000992 ClipClip
-
240710004118 Connector BracketConnector Bracket
-
241210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
242234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
370293730040 Mount DartMount Dart
-
377293750058 2-Pieces Fixing Tie Rap for Edges2-Pieces Fixing Tie Rap for Edges
-
400710001364 Starter RelayStarter Relay
-
401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
402232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
404207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
405233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
410710003239 Flasher UnitFlasher Unit
-
495710001645 Tail LightTail Light
-
496710002964 FlasherFlasher
-
497207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
500710006211 LH Multi Fonction ControlLH Multi Fonction Control
-
530710004570 Ignition SwitchIgnition Switch
-
600710006216 SpeedometerSpeedometer
-
631710002183 Grey, Electronic KeyGrey, Electronic Key
-
645414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
665250000718 Hex. Screw K40 X 45Hex. Screw K40 X 45
-
675517225900 Flat WasherFlat Washer
-
685517168600 SpringSpring
-
700710003900 Low Beam. Includes 700 to 700aLow Beam. Includes 700 to 700a
-
700a710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
740710002964 FlasherFlasher
-
742207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
750710003909 Pilot LampPilot Lamp
-
770710001726 Day Light. Includes 770 to 770aDay Light. Includes 770 to 770a
-
770a710003269 Cap ProtectorCap Protector
-
780710004791 HornHorn
-
781233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
782207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
800710005569 Voltage RegulatorVoltage Regulator
-
801207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
900410301203 Battery Ass'y, 18 Amperes. Includes 900 to 900aBattery Ass'y, 18 Amperes. Includes 900 to 900a
-
900a250000282 Battery Bolt KitBattery Bolt Kit
-
905710005528 Battery SupportBattery Support
-
906210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
907293830005 Rubber BumperRubber Bumper
-
908234062670 Flat Washer, StainlessFlat Washer, Stainless
-
920710002404 Fixation PlateFixation Plate
-
921705003666 Rubber GrommetRubber Grommet
-
922207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
950710001248 Outlet DCOutlet DC
-
1830710005610 Speed SensorSpeed Sensor
-
1831250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1832250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
1840a708300434 Plate SupportPlate Support
-
1840b705011221 Red ReflectorRed Reflector
-
1840c710005563 License Plate LightLicense Plate Light
-
1840d710005812 Bracket License PlateBracket License Plate
-
1840e207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
1840f233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1841250000298 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
1842233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1843233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
1844205053588 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
1845710005846 Trailer HarnessTrailer Harness
-
1846207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
1847233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1855710002896 Tie-Rap ClipTie-Rap Clip
-
1879293650256 ClampClamp
