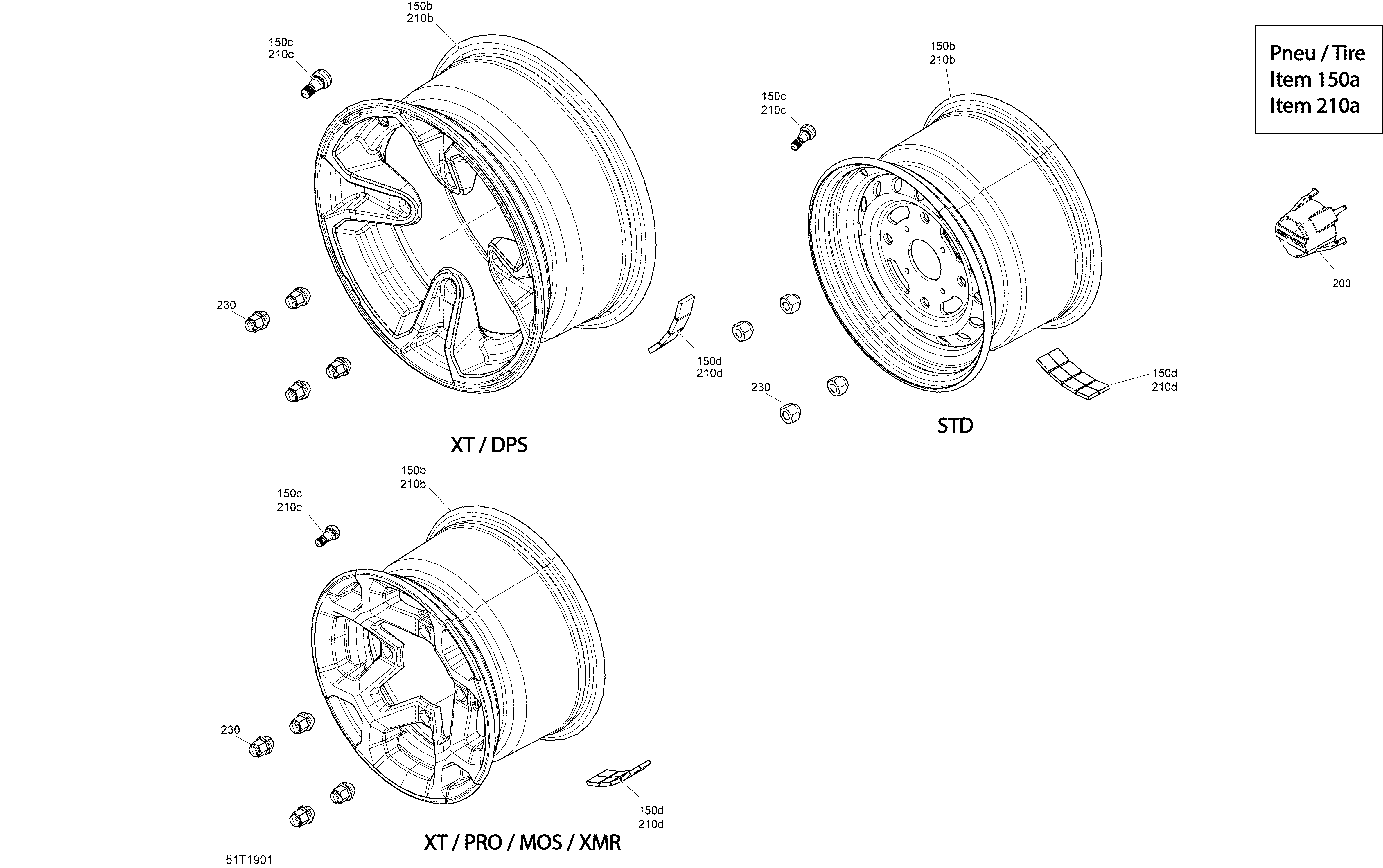

07- Wheels - DPS - XT для BRP 005 - Outlander MAX 570 EFI - DPS_XT - T3 - 2019
-
№АртикулНазвание
-
150a705502743 Rear tireRear tire
-
150b705502034 Black RimBlack Rim
-
150c705400193 Rim Valve With CapRim Valve With Cap
-
150d705501385 1/2 OZ Weight1/2 OZ Weight
-
200705400928 Wheel CapWheel Cap
-
210a705402264 Front TireFront Tire
-
210b705401522 Black RimBlack Rim
-
210c705400193 Rim Valve With CapRim Valve With Cap
-
210d705501385 1/2 OZ Weight1/2 OZ Weight
-
230250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
