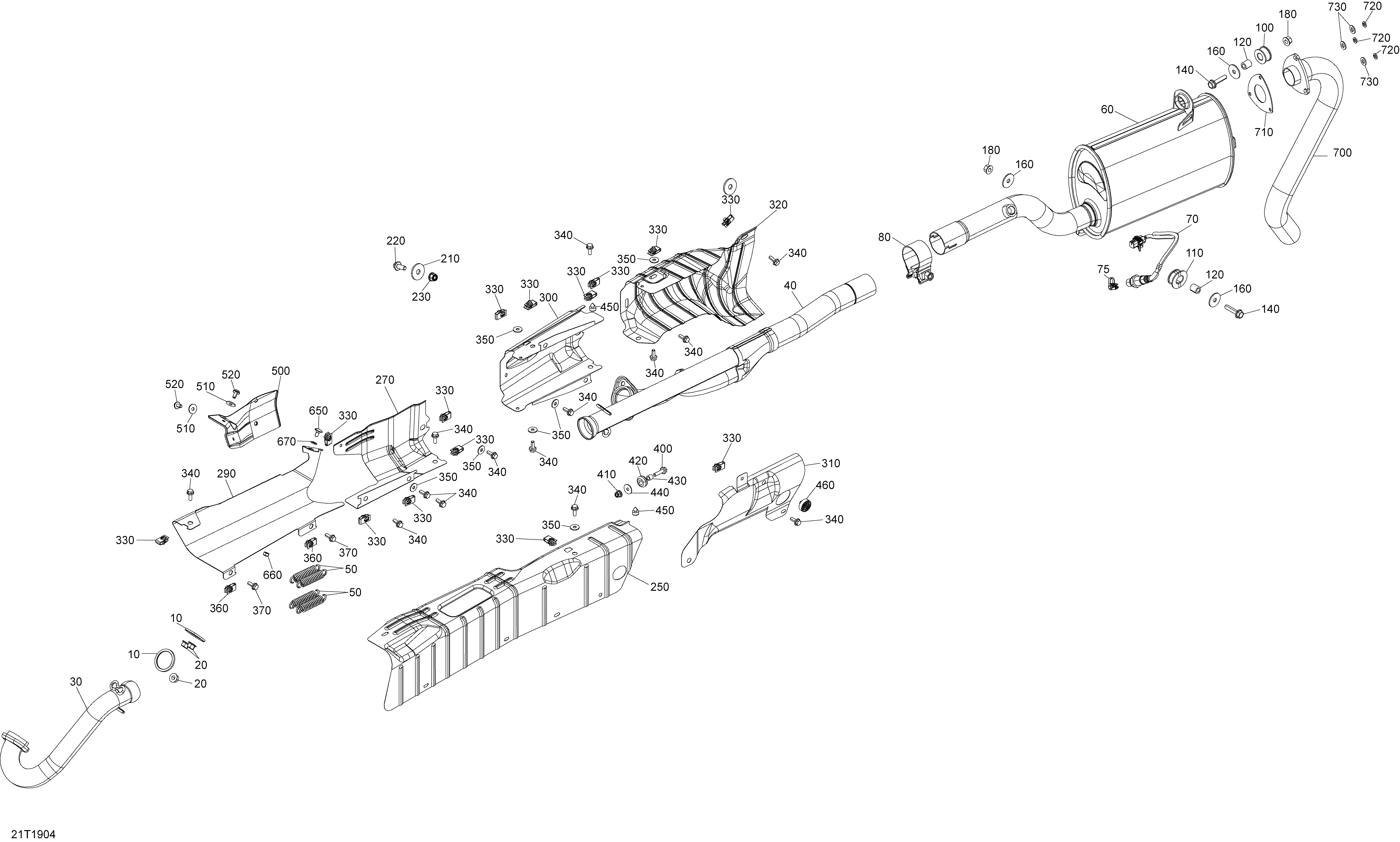

01- Exhaust 6X6 - 650 EFI для BRP 005 - Outlander MAX 6X6 - 650 EFI - T3 - 2019
-
№АртикулНазвание
-
10707600317 GasketGasket
-
20233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
30707600764 Front Head PipeFront Head Pipe
-
40707601447 Rear Head PipeRear Head Pipe
-
50415107100 SpringSpring
-
60707602184 MUFFLER. Includes 60a to 60fMUFFLER. Includes 60a to 60f
-
60a715900089 Spark ArrestorSpark Arrestor
-
60b707601799 GasketGasket
-
60d205062060 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
60e715900143 Muffler End PieceMuffler End Piece
-
60f715900147 SupportSupport
-
70707600872 Oxygen SensorOxygen Sensor
-
80293650228 Exhaust Pipe ClampExhaust Pipe Clamp
-
100707600701 Anti-Vibration RubberAnti-Vibration Rubber
-
110707600448 RubberRubber
-
120293900116 Spacer BushingSpacer Bushing
-
120293900116 Spacer BushingSpacer Bushing
-
140207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
160250200158 Flat Washer M8Flat Washer M8
-
180233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
250707602603 ProtectorProtector
-
270707601484 ProtectorProtector
-
290707600996 Heat ShieldHeat Shield
-
300707601485 ProtectorProtector
-
310707602604 Heat ShieldHeat Shield
-
320707601425 ProtectorProtector
-
330250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
340207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
350234062410 Flat Washer 6 mmFlat Washer 6 mm
-
360250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
370207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
400207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
410233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
420293720053 GrommetGrommet
-
430293900105 BushingBushing
-
440224060201 Flat WasherFlat Washer
-
450293830005 Rubber BumperRubber Bumper
-
460708000506 Rubber StopperRubber Stopper
-
500707600932 Pipe ProtectorPipe Protector
-
510250200082 Flat WasherFlat Washer
-
520250000574 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
650207761244 Carriage Bolt M6 X 12Carriage Bolt M6 X 12
-
660232561414 Elastic Stop Nut M6 x 1.0Elastic Stop Nut M6 x 1.0
-
670234061410 Flat Washer 6 mmFlat Washer 6 mm
-
700707601604 Welded PipeWelded Pipe
-
710707601799 GasketGasket
-
720234161601 Lock Washer Helical M6Lock Washer Helical M6
-
730234081430 Flat Washer M8Flat Washer M8
-
1000503032900 WasherWasher
-
1100207683534 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
1200233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
