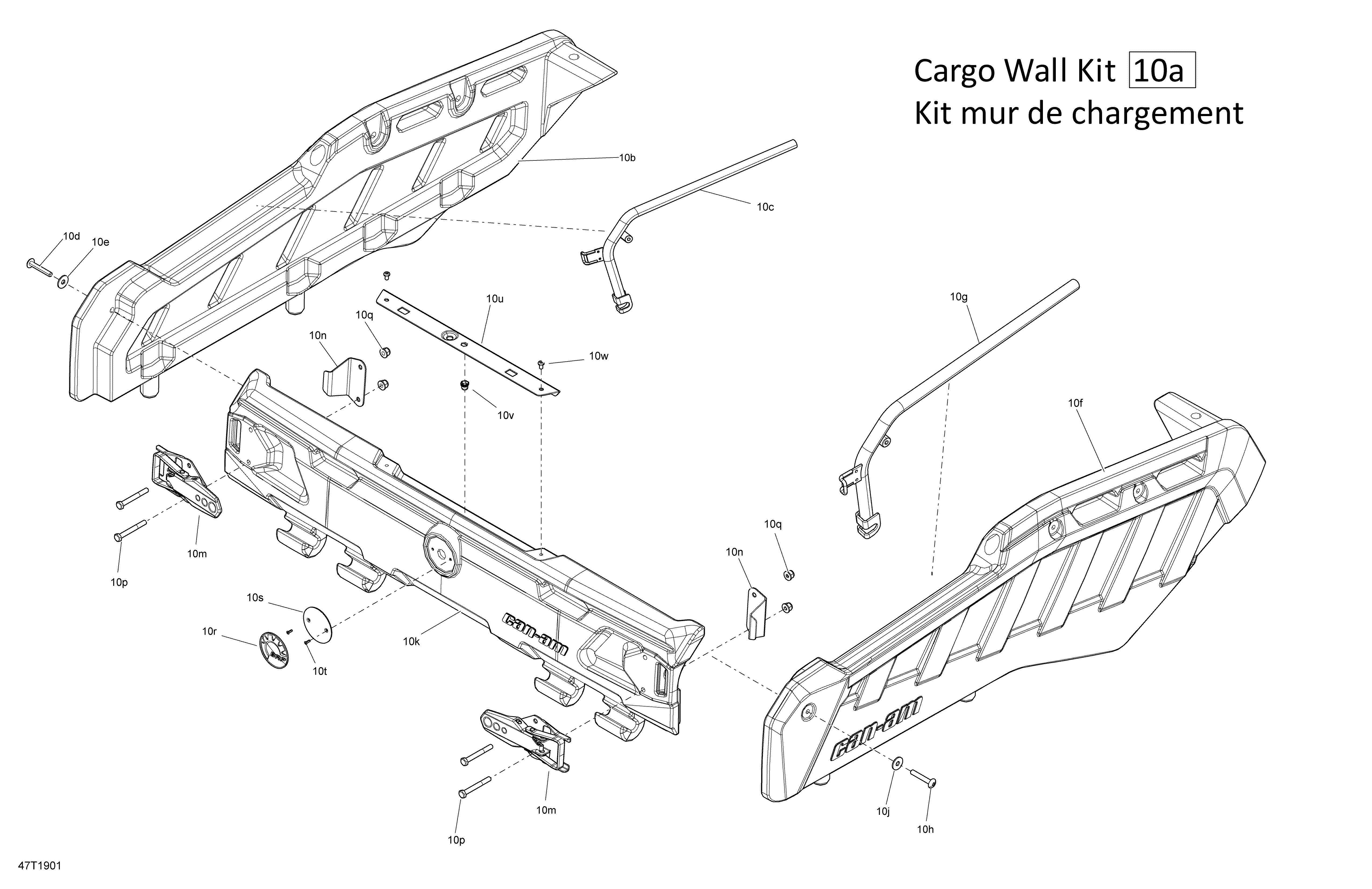

09- Options 6X6 - Cargo Wall Kit для BRP 005 - Outlander MAX 6X6 - 650 EFI - T3 - 2019
-
№АртикулНазвание
-
10a715005153 Cargo Wall Kit. Includes 10a to 10wCargo Wall Kit. Includes 10a to 10w
-
10b708302078 Black, LH Side PanelBlack, LH Side Panel
-
10c708302800 LH Side RailingLH Side Railing
-
10d250000761 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
10e234082670 Flat Washer, StainlessFlat Washer, Stainless
-
10f708302079 Black, RH Side PanelBlack, RH Side Panel
-
10g708302799 RH Side RailingRH Side Railing
-
10h250000761 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
10j234082670 Flat Washer, StainlessFlat Washer, Stainless
-
10k708302080 Black, TailgateBlack, Tailgate
-
10m511001014 Latch AssyLatch Assy
-
10n708301005 Latch Fixing PlateLatch Fixing Plate
-
10p207086544 Hex. Screw M8 x 65Hex. Screw M8 x 65
-
10q233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
10r516008739 BRP Logo, 68mmBRP Logo, 68mm
-
10s708301177 Logo BaseLogo Base
-
10t250000698 Countersunk Head Screw K30 X 10Countersunk Head Screw K30 X 10
-
10u708301184 Lock ListLock List
-
10v605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
10w250000436 Socket Screw Button Head M6 X 10Socket Screw Button Head M6 X 10
