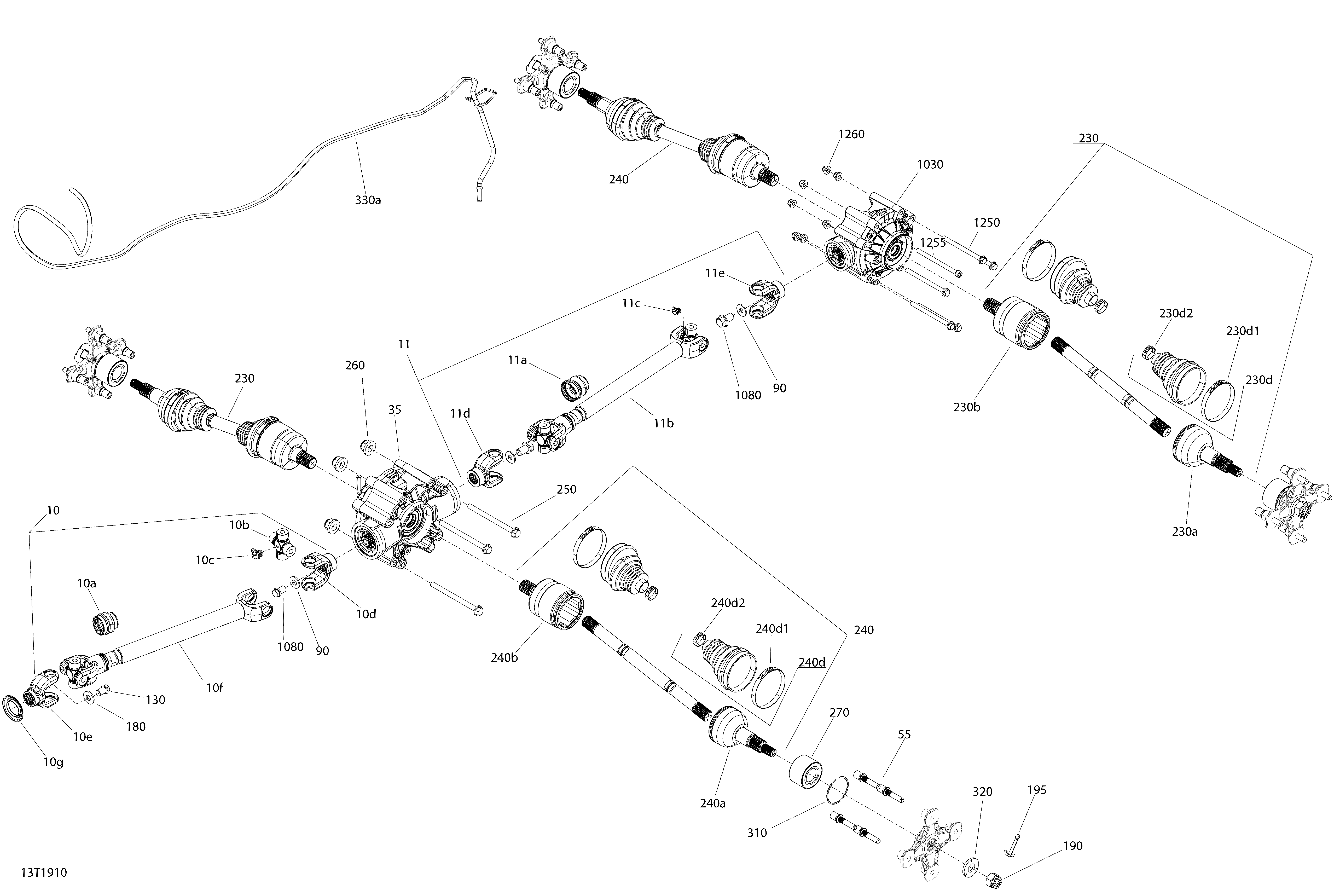

08- Rear Drive 6X6 для BRP 005 - Outlander MAX 6X6 - 650 EFI - T3 - 2019
-
№АртикулНазвание
-
10703500992 Shaft Ass'y Kit. Built Before Feb 2019. Includes 10 to 10gShaft Ass'y Kit. Built Before Feb 2019. Includes 10 to 10g
-
10703500989 Shaft Ass'y Kit. Built Feb 2019 and Up. Includes 10 to 10gShaft Ass'y Kit. Built Feb 2019 and Up. Includes 10 to 10g
-
10a715900118 Rubber BootRubber Boot
-
10b703500846 Universal Joint Ass'y. Includes 10b to 10cUniversal Joint Ass'y. Includes 10b to 10c
-
10c715900295 Grease FittingGrease Fitting
-
10d715900500 YokeYoke
-
10e715900436 JointJoint
-
10f715900106 Spline YokeSpline Yoke
-
10g705501123 ProtectorProtector
-
11703500987 Shaft Ass'y Kit. Built Before Feb 2019. Includes 11 to 11fShaft Ass'y Kit. Built Before Feb 2019. Includes 11 to 11f
-
11703501084 Shaft Ass'y Kit. Built Feb 2019 and Up. Includes 11 to 11fShaft Ass'y Kit. Built Feb 2019 and Up. Includes 11 to 11f
-
11a715900118 Rubber BootRubber Boot
-
11b715900326 Universal Joint. Includes 11b to 11cUniversal Joint. Includes 11b to 11c
-
11c715900295 Grease FittingGrease Fitting
-
11d715900438 YokeYoke
-
11e715900500 Yoke. Built Before Feb 2019Yoke. Built Before Feb 2019
-
11e715900499 Yoke. Built Feb 2019 and UpYoke. Built Feb 2019 and Up
-
11f705501123 Protector. not shownProtector. not shown
-
15705501123 Protector. not shownProtector. not shown
-
35705502230 Final Drive Unit. Built Before Feb 2019. Includes 35 to 35xFinal Drive Unit. Built Before Feb 2019. Includes 35 to 35x
-
35705502968 Final Drive Unit. Built Feb 2019 and Up. Includes 35 to 35xFinal Drive Unit. Built Feb 2019 and Up. Includes 35 to 35x
-
55250300643 Wheel StudWheel Stud
-
90250200102 Flat Washer M12Flat Washer M12
-
130250001039 Hex Flanged Screw M12 X 16Hex Flanged Screw M12 X 16
-
180250200005 Conical Spring Washer M12Conical Spring Washer M12
-
190250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
195250400071 Cotter PinCotter Pin
-
230705502711 RH CV Joint. Includes 230 to 230d2RH CV Joint. Includes 230 to 230d2
-
230a705501776 CV JointCV Joint
-
230b705501780 Plunging JointPlunging Joint
-
230c705501781 Circlip. not shownCirclip. not shown
-
230d705501864 Boot Kit. Includes 230d to 230d2Boot Kit. Includes 230d to 230d2
-
230d1715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
230d2715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
240705502710 LH CV Joint. Includes 240 to 240d2LH CV Joint. Includes 240 to 240d2
-
240a705501776 CV JointCV Joint
-
240b705501780 Plunging JointPlunging Joint
-
240c705501781 Circlip. not shownCirclip. not shown
-
240d705501864 Boot Kit. Includes 240d to 240d2Boot Kit. Includes 240d to 240d2
-
240d1715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
240d2715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
250250001041 Hex. Flanged Screw M10 X 135Hex. Flanged Screw M10 X 135
-
260233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
270293350118 Cone BearingCone Bearing
-
310293370019 CirclipCirclip
-
320250200171 Conical Spring Washer M18Conical Spring Washer M18
-
330a293830193 Polyurethane HosePolyurethane Hose
-
1030705502370 Rear Drive Unit Ass'y. Includes 1030 to 1030uRear Drive Unit Ass'y. Includes 1030 to 1030u
-
1080250000378 Hex Flanged Screw M12 X 16, Scotch GripHex Flanged Screw M12 X 16, Scotch Grip
-
1085250000615 Hex Flanged Screwv M10 X 16. not shownHex Flanged Screwv M10 X 16. not shown
-
1095250200014 Flat Washer M10. not shownFlat Washer M10. not shown
-
1245705502741 Screw Hex. Flanged M10x145. not shownScrew Hex. Flanged M10x145. not shown
-
1250250000508 Hex. Flanged Screw M10 x 135Hex. Flanged Screw M10 x 135
-
1255231003587 Screw-socket Hd.din.912Screw-socket Hd.din.912
-
1260233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
1265232500416 Elastic Stop Nut M10. not shownElastic Stop Nut M10. not shown
