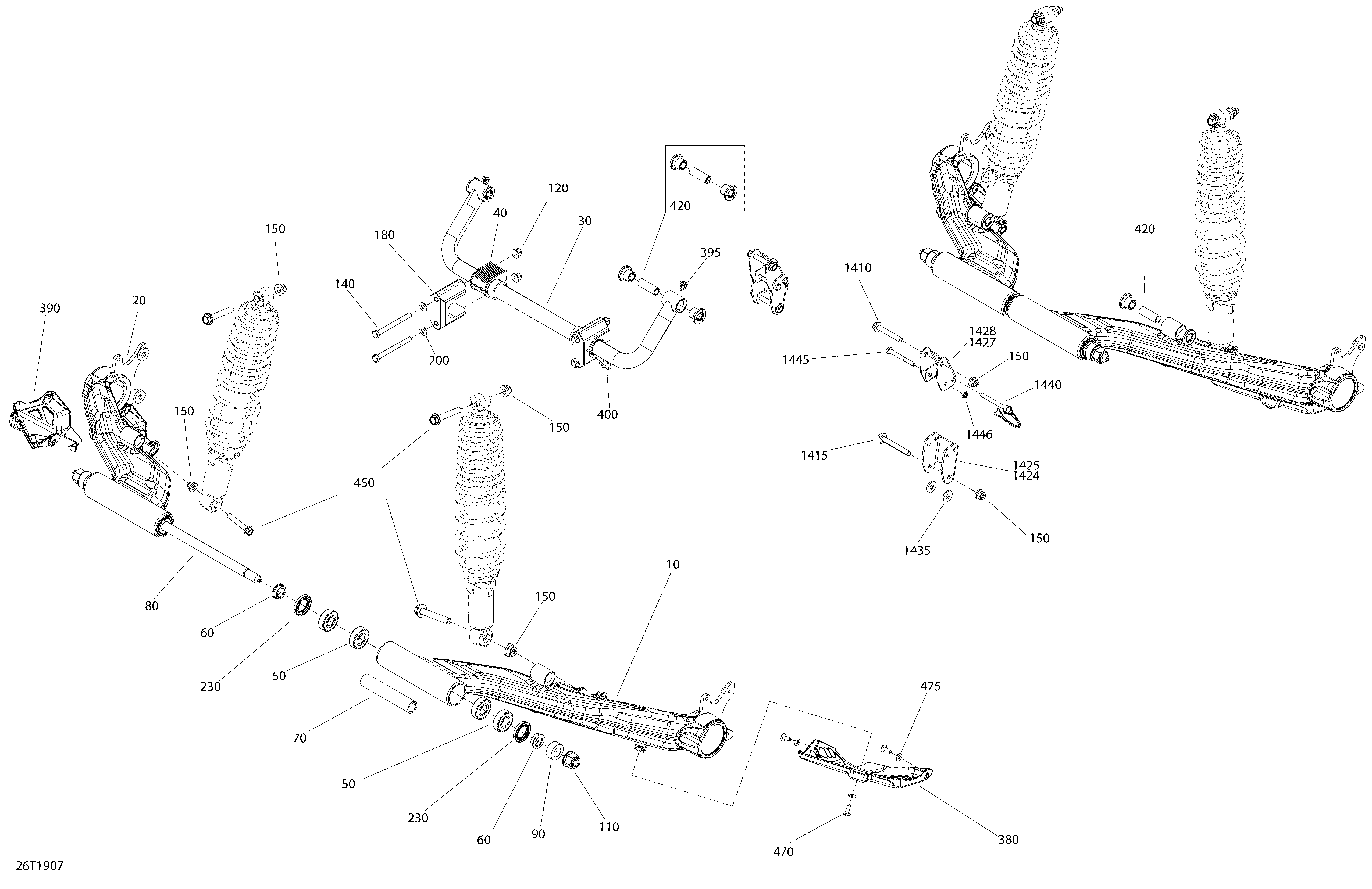

08- Rear Suspension 6X6 для BRP 005 - Outlander MAX 6X6 - 650 EFI - T3 - 2019
-
№АртикулНазвание
-
10706003041 LH Swing ArmLH Swing Arm
-
20706003042 RH Swing ArmRH Swing Arm
-
30706003050 SwaybarSwaybar
-
40706003130 BushingBushing
-
50706000826 Ball BearingBall Bearing
-
60706001282 SpacerSpacer
-
70706002259 SpacerSpacer
-
80706001664 Axial Pivot M16Axial Pivot M16
-
90250200112 Flat Washer M17Flat Washer M17
-
110233211466 Hex. Flanged Elastic Nut M16Hex. Flanged Elastic Nut M16
-
120233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
140250001035 Hex,. Screw M8 X 85Hex,. Screw M8 X 85
-
150233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
180706001099 Bushing HolderBushing Holder
-
200234081430 Flat Washer M8Flat Washer M8
-
230293200144 SealSeal
-
380706003052 LH ProtectorLH Protector
-
390706003053 RH ProtectorRH Protector
-
395293550056 Grease Fitting 90°Grease Fitting 90°
-
400250000315 Grease FittingGrease Fitting
-
420703500875 Bushing KitBushing Kit
-
450207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
-
470250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
475250200039 Flat WasherFlat Washer
-
1410207606536 Hex. Flanged Screw M10 X 65Hex. Flanged Screw M10 X 65
-
1415250000520 Hex. Screw M10 X 70Hex. Screw M10 X 70
-
1424706001765 Linkage, Outer Part RHLinkage, Outer Part RH
-
1425706001600 Linkage, Outer Part LeftLinkage, Outer Part Left
-
1427706001766 Linkage, Inner Part RHLinkage, Inner Part RH
-
1428706001601 Linkage, Inner PartLinkage, Inner Part
-
1435505073634 WasherWasher
-
1440706001602 Pin Onto The ShaftPin Onto The Shaft
-
1445207086544 Hex. Screw M8 x 65Hex. Screw M8 x 65
-
1446232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
