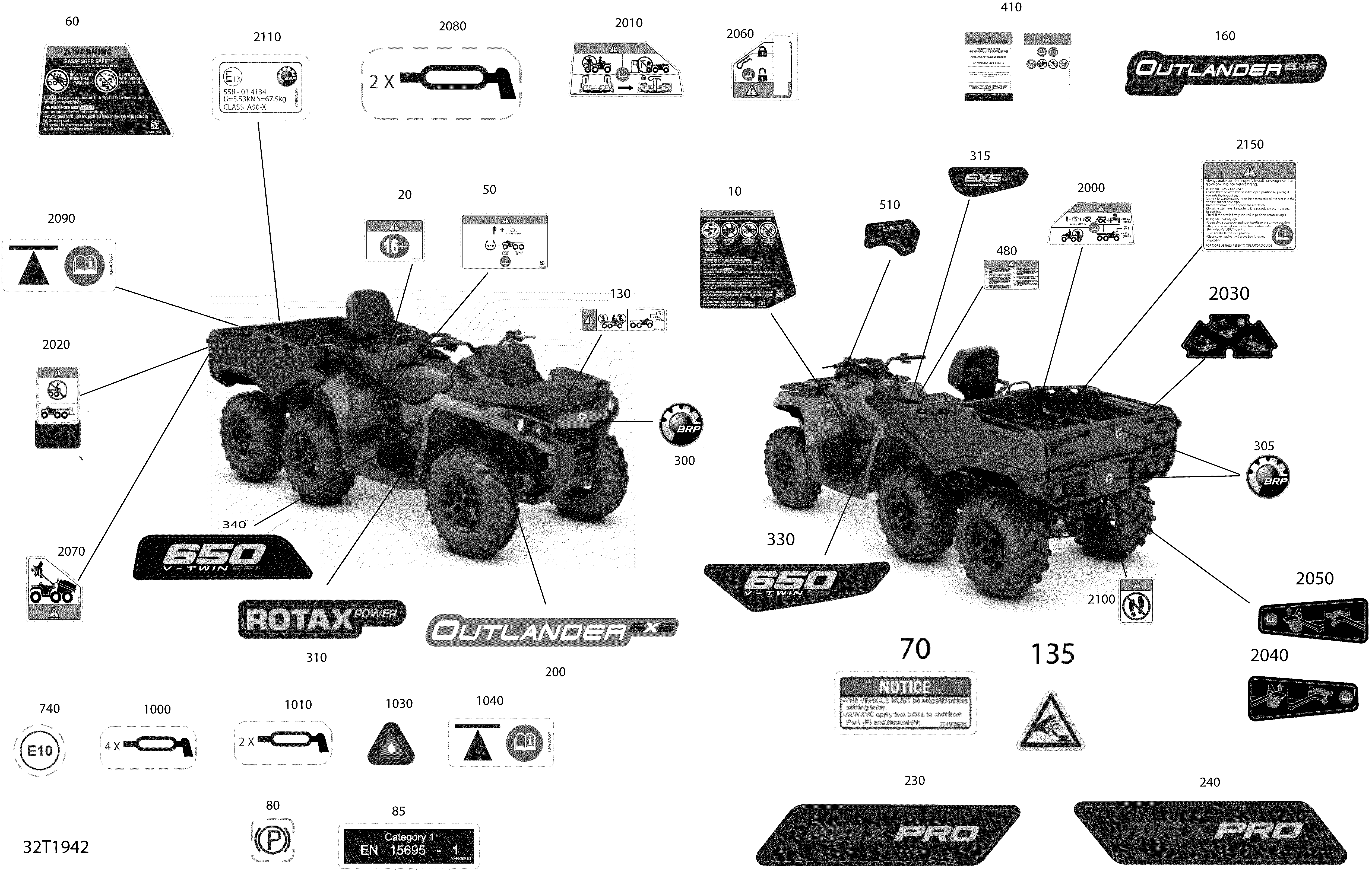

09- Decals Outlander MAX - 6X6 - Pro Nordic для BRP 005 - Outlander MAX 6X6 - 650 EFI - T3 - 2019
-
№АртикулНазвание
-
10704907276 Warning LabelWarning Label
-
20704905679 Warning Decal Over 16Warning Decal Over 16
-
50704907107 Warning LabelWarning Label
-
60704906104 Warning LabelWarning Label
-
70704905695 Warning Decal, Shifting LeverWarning Decal, Shifting Lever
-
80704906894 Parking Brake DecalParking Brake Decal
-
85704906301 Warning Decal, Cat. 1Warning Decal, Cat. 1
-
120704905701 Warning Decal, Seat PassengerWarning Decal, Seat Passenger
-
130704906105 Warning LabelWarning Label
-
135704905706 Warning Decal, Hot LiquidWarning Decal, Hot Liquid
-
160704907203 Console Decal '' Outlander 6x6 Max ''Console Decal '' Outlander 6x6 Max ''
-
200704906767 Outlander 6x6 DecalOutlander 6x6 Decal
-
230704906022 LH Pro Max DecalLH Pro Max Decal
-
240704906023 RH Pro Max DecalRH Pro Max Decal
-
300516008739 BRP Logo, 68mmBRP Logo, 68mm
-
305516008738 Logo BRP, 48mmLogo BRP, 48mm
-
310704905746 Rotax Power DecalRotax Power Decal
-
315704906120 Decal Cvt 6 X 6 Visco-lokDecal Cvt 6 X 6 Visco-lok
-
330704906034 LH 650 Engine DecalLH 650 Engine Decal
-
340704906035 RH 650 Engine DecalRH 650 Engine Decal
-
470704907111 Warning Decal, Road UseWarning Decal, Road Use
-
480704905720 Decal, MutltilingualDecal, Mutltilingual
-
510704906243 Decal DESS KeyDecal DESS Key
-
740704907278 Decal - Ethanol Percantage (E10)Decal - Ethanol Percantage (E10)
-
1000704906895 Decal Front Grease FittingDecal Front Grease Fitting
-
1010704906896 Decal Rear Grease FittingDecal Rear Grease Fitting
-
1030704906395 Brake Liquid DecalBrake Liquid Decal
-
1040704907067 Decal Support PointDecal Support Point
-
2000704904226 Warning LabelWarning Label
-
2010704904227 Warning LabelWarning Label
-
2020704904228 Warning LabelWarning Label
-
2030704904229 Instruction LabelInstruction Label
-
2040704904230 Instruction LabelInstruction Label
-
2050704904231 Instruction LabelInstruction Label
-
2060704904234 Warning LabelWarning Label
-
2070704904236 Warning LabelWarning Label
-
2080704906896 Decal Rear Grease FittingDecal Rear Grease Fitting
-
2090704907067 Decal Support PointDecal Support Point
-
2100704904368 Warning LabelWarning Label
-
2110704906367 Hitch Approval DecalHitch Approval Decal
-
2120704904233 Warning LabelWarning Label
-
2150704905701 Warning Decal, Seat PassengerWarning Decal, Seat Passenger
