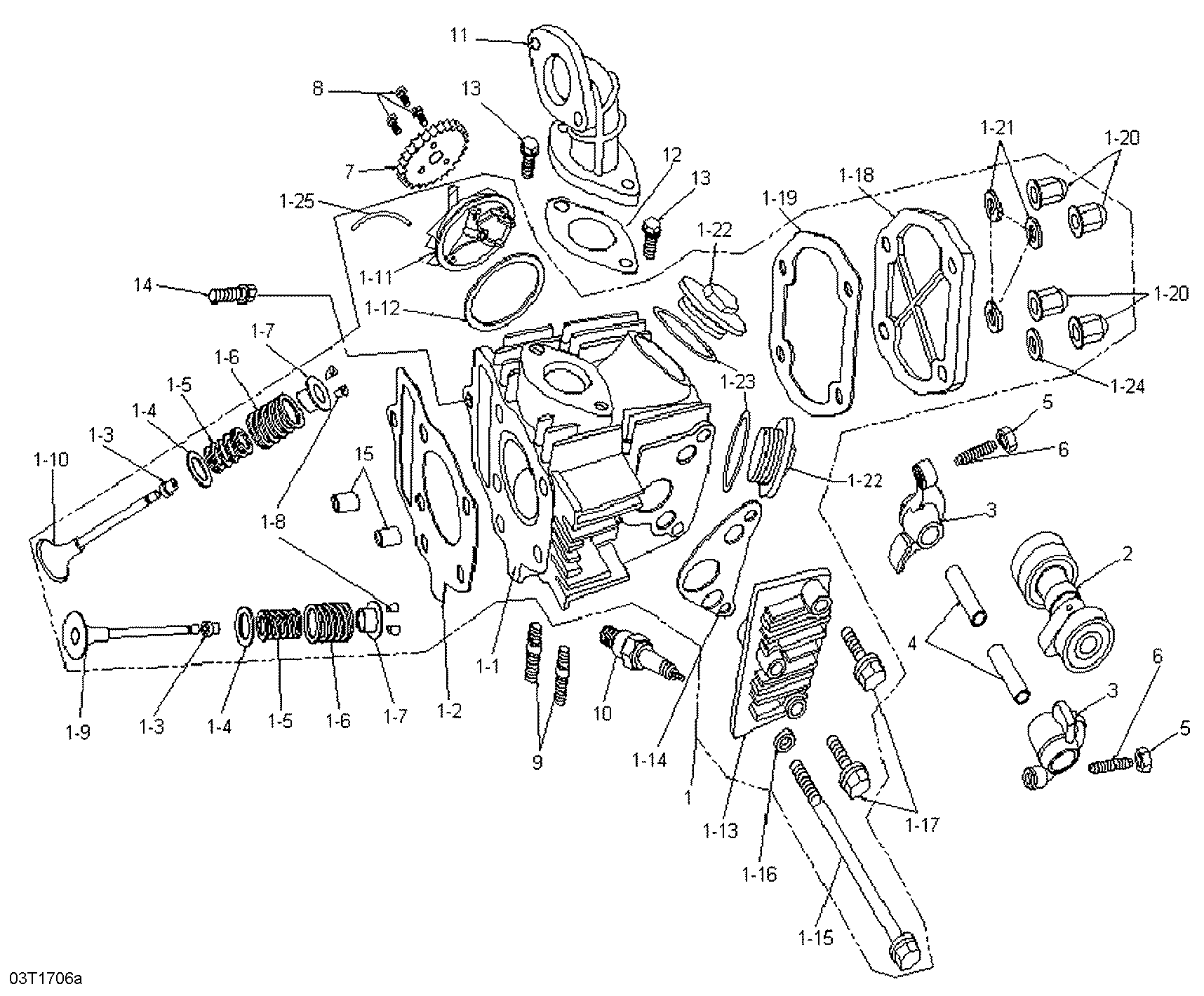

01- Cylinder Head And Intake Manifold для BRP 003 - DS 90 X - 2020
-
№АртикулНазвание
-
1-1V12201CJF020LL Cylinder Head DSCylinder Head DS
-
1-2V12251CJF020 Cylinder Head GasketCylinder Head Gasket
-
1-3V12209GYK000 Valve Stem SealValve Stem Seal
-
1-4V14775GYK000 Valve Spring SeatValve Spring Seat
-
1-5V14751GYK000 Spring Valve OuterSpring Valve Outer
-
1-6V14761GYK000 Spring Valve InnerSpring Valve Inner
-
1-7V14771GYK000 Retainer Valve SpringRetainer Valve Spring
-
1-8V14781GYK000 CotterCotter
-
1-9V14711CJF000 Intake ValveIntake Valve
-
1-10V14721CJF000 Exaust ValveExaust Valve
-
1-11V12341CJF030LL LH Cover Cylinder HeadLH Cover Cylinder Head
-
1-12V12395CJF000 Cylinder Head Cover GasketCylinder Head Cover Gasket
-
1-13V12331CJF010LL RH Cover Cylinder HeadRH Cover Cylinder Head
-
1-14V12394CJF000 Cylinder Head Cover GasketCylinder Head Cover Gasket
-
1-15V9600006110 Hexagonal Flange BoltHexagonal Flange Bolt
-
1-16V941040614016 Washer FlatWasher Flat
-
1-17207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1-18V12301CJF000 Valve CoverValve Cover
-
1-19V12391CJF010 GasketGasket
-
1-20V9030406000010LL Cap NutCap Nut
-
1-21V941010612016 Flat WasherFlat Washer
-
1-22V12361CJF030LL Adjusting Cap. Incl 1-23 O-RingAdjusting Cap. Incl 1-23 O-Ring
-
1-25V11224DGF000 BreatherBreather
-
2V14400CJF010 CamshaftCamshaft
-
3V14431CJF030 Rocker ArmRocker Arm
-
4V14452CJF010 Rocker Arm ShaftRocker Arm Shaft
-
5V90206GYK000 Valve Gap Adjusting NutValve Gap Adjusting Nut
-
6V90012GYK000 Valve Gap Adjusting ScrewValve Gap Adjusting Screw
-
7V14321CJF030 Timer SprocketTimer Sprocket
-
8V920100501208 Hexagonal BoltHexagonal Bolt
-
9V9270006033LL Stud BoltStud Bolt
-
10V9805656723 Spark Plug P-Z9HCSpark Plug P-Z9HC
-
11V17111CJF07A Intake ManifoldIntake Manifold
-
12V16229GYK000 Joint EtancheJoint Etanche
-
13207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
14207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
15A9430108120 Dowel Pin, 8 X 12Dowel Pin, 8 X 12
