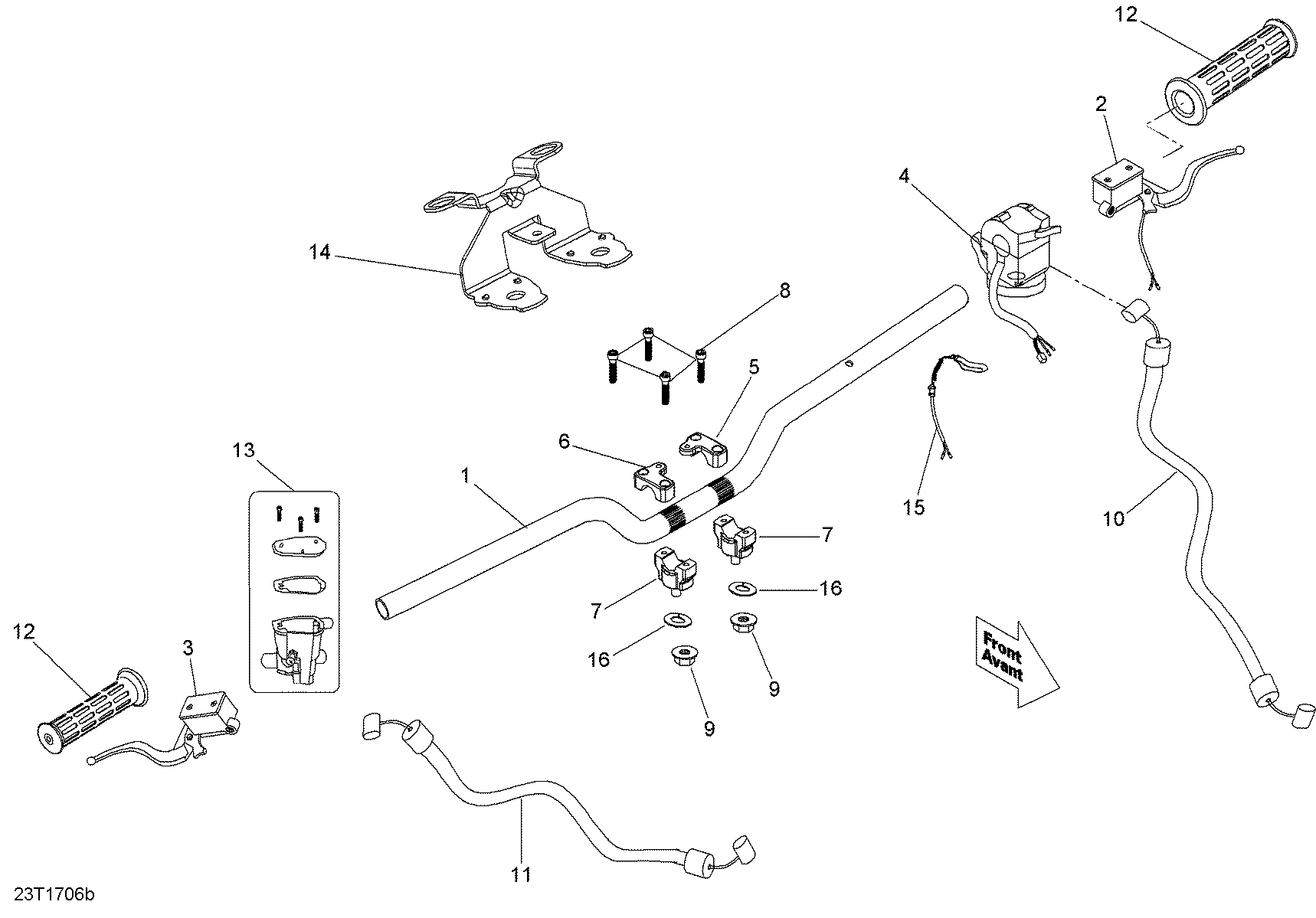

07- Handlebar для BRP 003 - DS 90 X - 2020
-
№АртикулНазвание
-
1V53100DGF06HLL Handle BarHandle Bar
-
2V53178DGF03HLL LH Brake Lever and Master CylinderLH Brake Lever and Master Cylinder
-
3V53179DGF02HLL RH Brake Lever And Master CylinderRH Brake Lever And Master Cylinder
-
4V35160DGF04HLL Multi-Fonction SwitchMulti-Fonction Switch
-
5V53170MAA020BKLL LH Upper Handle Bar ClampLH Upper Handle Bar Clamp
-
6V53175MAA020BKLL RH Upper Handle Bar ClampRH Upper Handle Bar Clamp
-
7V45517DGF04HLL Lower Handle Bar ClampLower Handle Bar Clamp
-
8V9100006025LL Hexagonal Bolt M6 X 25Hexagonal Bolt M6 X 25
-
9232501416 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
10V43316DGF060LL Choke CableChoke Cable
-
11V17910DGF03HLL Throttle CableThrottle Cable
-
12V53140DGF000BK Handle GripHandle Grip
-
13V53177CEK010BKLL Housing Throttle Ass.Housing Throttle Ass.
-
14V50223DGF03H SupportSupport
-
15V35110DGF00H Tether CordTether Cord
-
16234101601 Helicoidal Lock Washer M10Helicoidal Lock Washer M10
