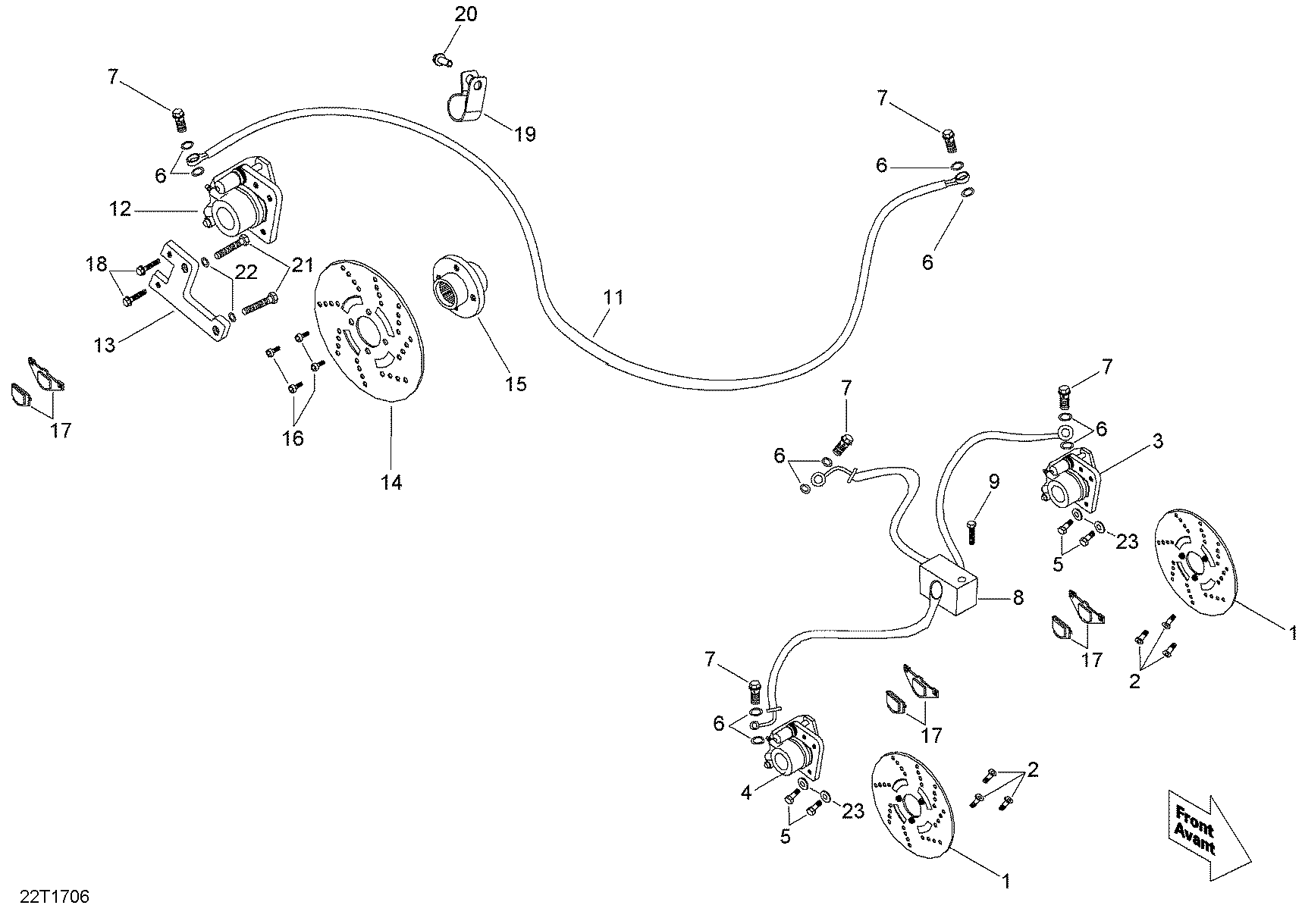

06- Brakes для BRP 003 - DS 90 X - 2020
-
№АртикулНазвание
-
1V45111CEK000LL Front Brake DiskFront Brake Disk
-
2V9010508024 Front Brake Disc BoltFront Brake Disc Bolt
-
3V45222DGF01HLL LH Front CaliperLH Front Caliper
-
4V45221DGF01HLL RH Front CaliperRH Front Caliper
-
5207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
6V46964MAC000 WasherWasher
-
7V46963MAC020LL BoltBolt
-
8V46966DGF11HLL 3 Way Brake3 Way Brake
-
9207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
11V46964DGF04H Brake HoseBrake Hose
-
12V45200MAC000LL Rear CaliperRear Caliper
-
13V50295MAC020 Rear Caliper BracketRear Caliper Bracket
-
14V45121MAC000 Rear Brake DiscRear Brake Disc
-
15V45122MAC000 Rear Brake Disc BracketRear Brake Disc Bracket
-
16A9100006012 Hexagonal Socket BoltHexagonal Socket Bolt
-
17V45151DGF00HBKLL Brake Pad KitBrake Pad Kit
-
18207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
19V50126DGF00H ClipClip
-
20207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
21V9200012050 Hex. ScrewHex. Screw
-
22V9411112000 Spring WasherSpring Washer
-
23V941010816015L WasherWasher
