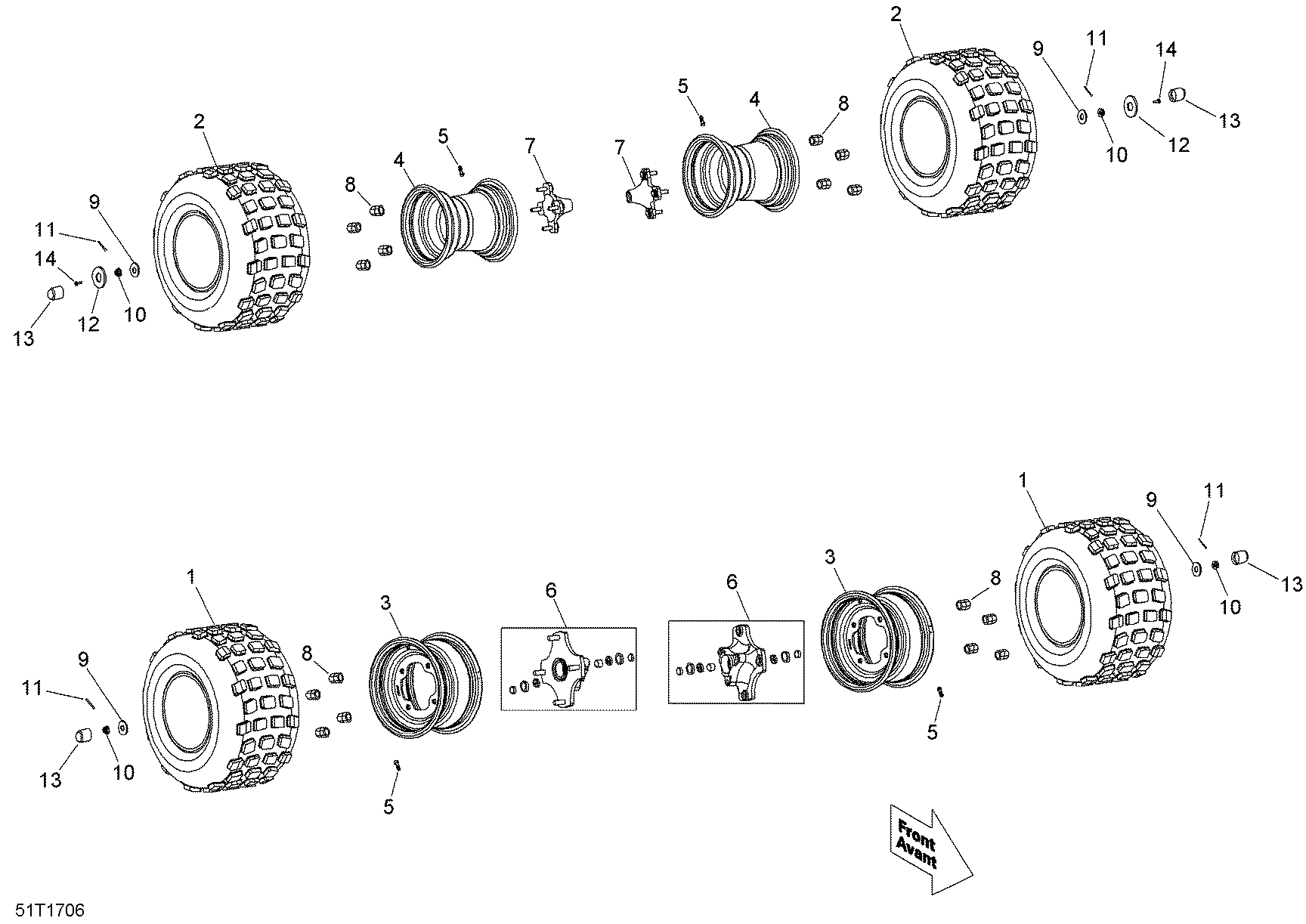

07- Wheels And Tires для BRP 003 - DS 90 X - 2020
-
№АртикулНазвание
-
1V42711DGF01HLL Front TireFront Tire
-
2V42712DGF01HLL Rear TireRear Tire
-
3V42701DGF01HLL Front RimFront Rim
-
4V42702DGF02HLL Rear RimRear Rim
-
5V42751MAA000LL Rim ValveRim Valve
-
6V44650CEK010LL Front HubFront Hub
-
7V44630CEK010SLLL Rear Wheel Axle Fixed BracketRear Wheel Axle Fixed Bracket
-
8V9030210017LL Auminium Nut M10Auminium Nut M10
-
9V55002MAA010LL WasherWasher
-
10V9405214000LL Castle Nut M14Castle Nut M14
-
11V9420130032LL Cotter PinCotter Pin
-
12V55002MEM010ZC Rear Wheel WasherRear Wheel Washer
-
13V53456CEK030LL Rubber CapRubber Cap
-
14V9600006010LL Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
