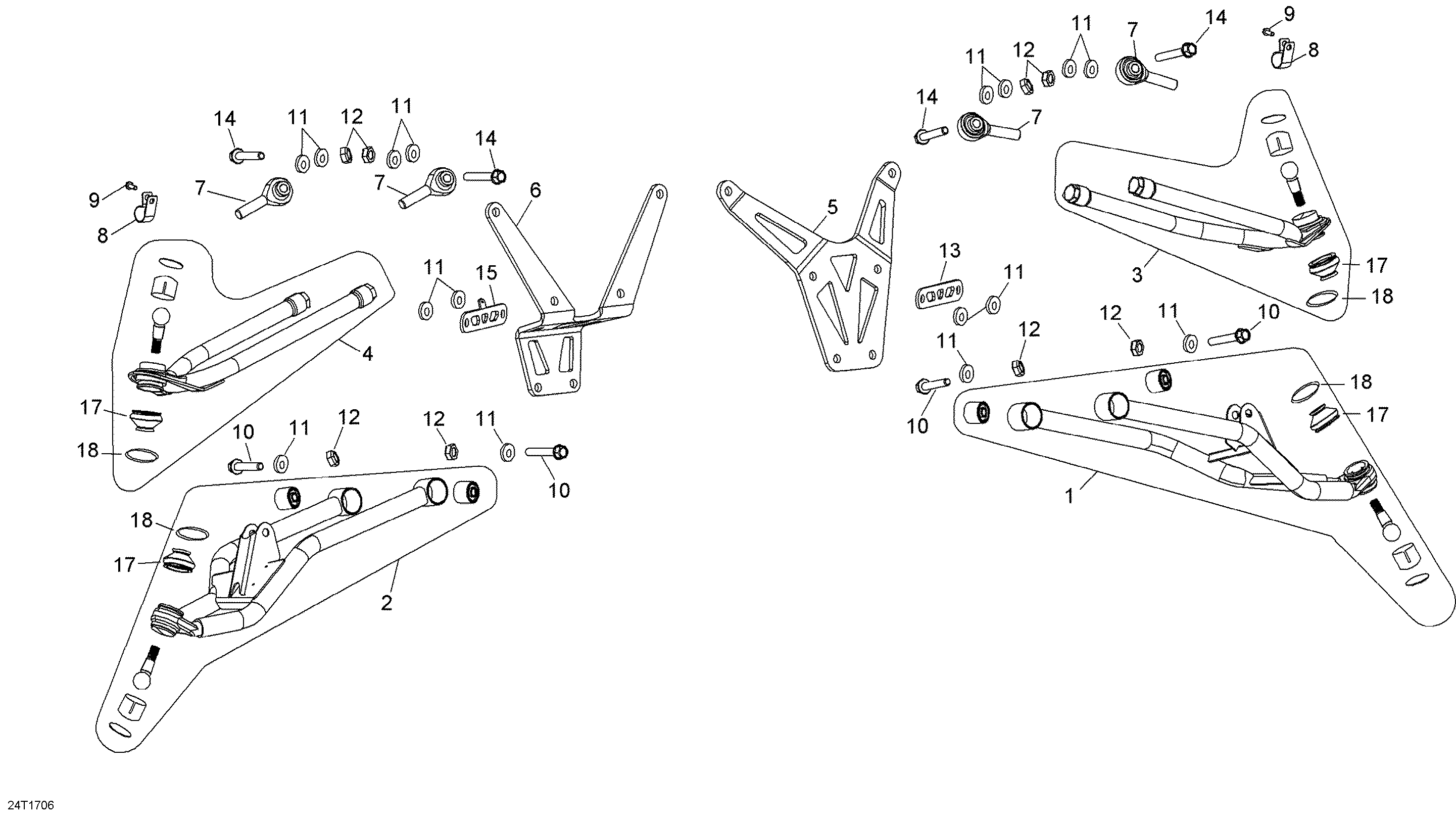

07- Front Suspension Arm для BRP 003 - DS 90 X - 2020
-
№АртикулНазвание
-
1V51449DGF06H LH Lower Suspension Arm. Includes Item 17 and 18LH Lower Suspension Arm. Includes Item 17 and 18
-
2V51459DGF07H RH Lower Suspension Arm. Includes Item 17 and 18RH Lower Suspension Arm. Includes Item 17 and 18
-
3V51469DGF09H LH Upper Suspension Arm. Includes Item 17 and 18LH Upper Suspension Arm. Includes Item 17 and 18
-
4V51479DGF08H RH Upper Suspension Arm. Includes Item 17 and 18RH Upper Suspension Arm. Includes Item 17 and 18
-
5V50120DGF07HLL Front PlateFront Plate
-
6V50121DGF06HLL Rear PlateRear Plate
-
7V51472DGF02HLL Ball JointBall Joint
-
8V50126DGF00H ClipClip
-
9207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
10207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
11V941011121020LL Flat WasherFlat Washer
-
12232501416 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
13V50130DGF05H PlatePlate
-
14V958211006090L Haxagonal Flanged BoltHaxagonal Flanged Bolt
-
15V50132DGF03H PlatePlate
-
17V52247DGF01HLL Protector RubberProtector Rubber
-
18V95011CEK000 CirclipCirclip
