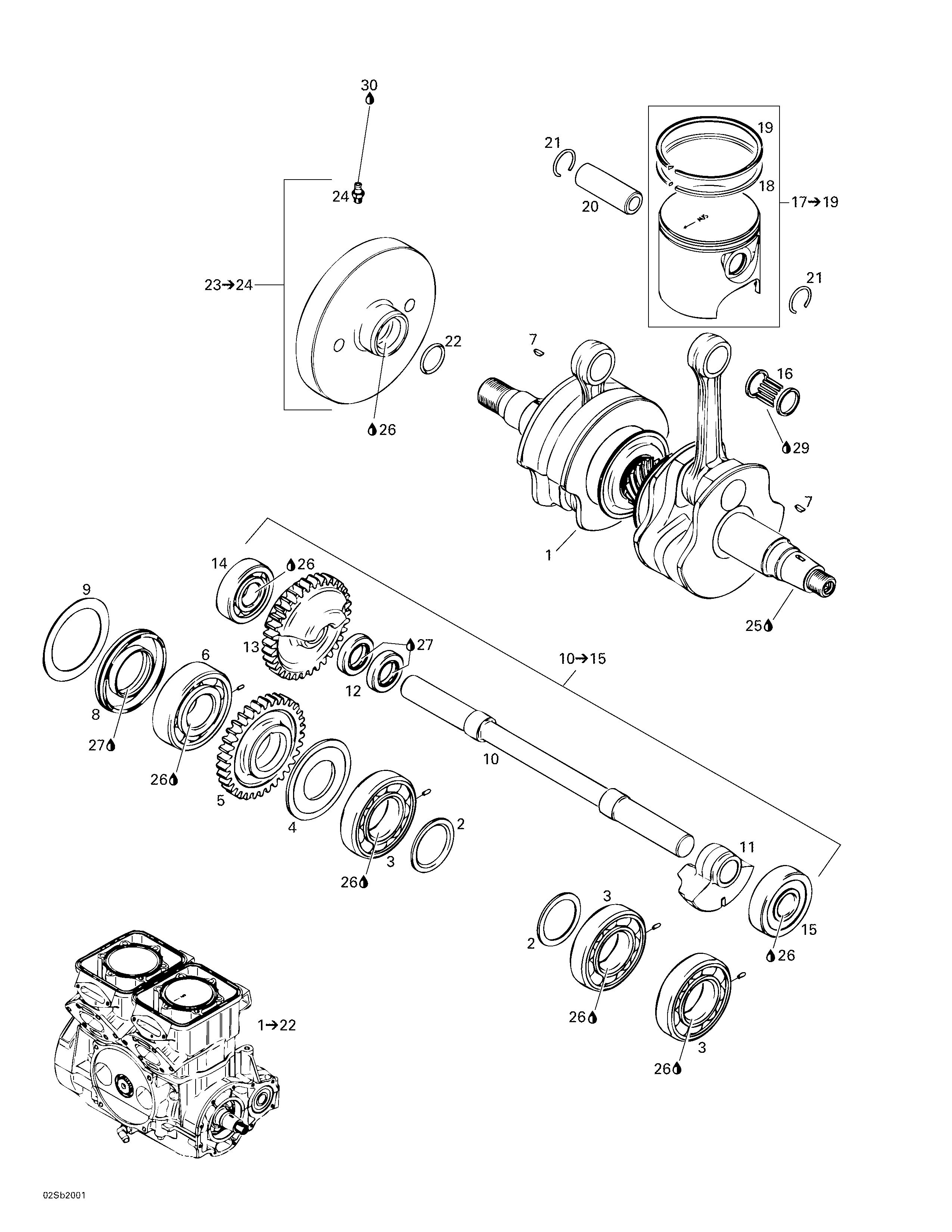

01- Crankshaft And Pistons для BRP GSX RFI, 5645/5654 - 2000
-
№АртикулНазвание
-
1290078703 Short Block Ass'y. Includes 1 - 22.Short Block Ass'y. Includes 1 - 22.
-
1290887890 Crankshaft Ass'y. Includes 1 - 7.Crankshaft Ass'y. Includes 1 - 7.
-
2420827760 Distance RingDistance Ring
-
3420832573 Ball Bearing > Ass'yBall Bearing > Ass'y
-
4290926140 Washer LabyrinthWasher Labyrinth
-
5290834315 Gear 43 TeethGear 43 Teeth
-
6290932579 Ball Bearing >Ball Bearing >
-
7420246055 Woodruff KeyWoodruff Key
-
8290830638 Oil SealOil Seal
-
9290926060 Retaining ShimRetaining Shim
-
10290837406 Balance Shaft Ass'y. Includes 10 - 15.Balance Shaft Ass'y. Includes 10 - 15.
-
14290932095 Ball Bearing >Ball Bearing >
-
15290932098 Ball Bearing >Ball Bearing >
-
16290832420 Needle BearingNeedle Bearing
-
17290888410 Piston with 2 Rings, 81.89 mm. Includes 17 - 19.Piston with 2 Rings, 81.89 mm. Includes 17 - 19.
-
290888411 Piston Oversize, 2 Rings, 82.15 mmPiston Oversize, 2 Rings, 82.15 mm
-
18290815080 Rectangular Ring 82.00 mmRectangular Ring 82.00 mm
-
290815081 Rectangular Ring 82.25 mmRectangular Ring 82.25 mm
-
19290815100 Semi-Trapez Ring 82.00 mmSemi-Trapez Ring 82.00 mm
-
290815101 Semi-Trapez Ring 82.25 mmSemi-Trapez Ring 82.25 mm
-
20290916402 Piston PinPiston Pin
-
21420845100 CirclipCirclip
-
22420430782 O-RingO-Ring
-
23290958141 Clutch-Flywheel. Includes 23 - 24.Clutch-Flywheel. Includes 23 - 24.
-
24290499113 Grease FittingGrease Fitting
-
25293800060 Loctite 243, 10mlLoctite 243, 10ml
-
26293800023 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
27413707000 Molykote 111Molykote 111
-
28290886392 Engine Gasket Set (Not Shown)Engine Gasket Set (Not Shown)
-
28290886396 Cylinder Gasket Set (Not Shown)Cylinder Gasket Set (Not Shown)
-
29413802900 Injection Oil (12x1L)Injection Oil (12x1L)
-
30293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
