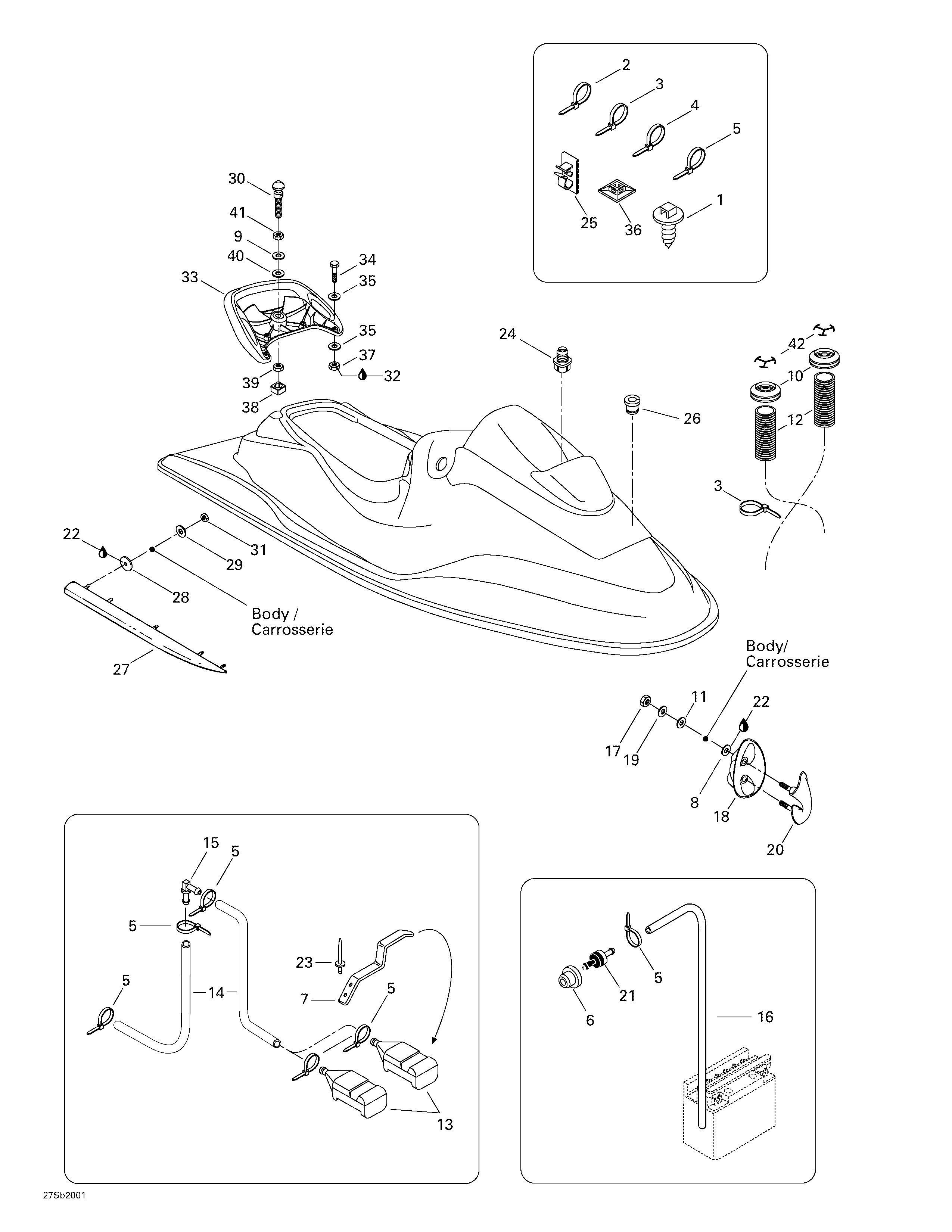

09- Body, Front View для BRP GSX RFI, 5645/5654 - 2000
-
№АртикулНазвание
-
1293730018 DartDart
-
2414115200 Tie Rap 180 mmTie Rap 180 mm
-
3293750008 Tie Rap 350 mmTie Rap 350 mm
-
4293750002 Tie Rap 130 mmTie Rap 130 mm
-
5293750001 Tie Rap 94 mmTie Rap 94 mm
-
6293720029 GrommetGrommet
-
7292000398 L.H. Spring ClipL.H. Spring Clip
-
8234081600 Flat Washer 8 mmFlat Washer 8 mm
-
9234002600 Washer 10 mmWasher 10 mm
-
10293720036 GrommetGrommet
-
11293830037 Rubber WasherRubber Washer
-
12291000870 Vent TubeVent Tube
-
13292000688 Screen BailerScreen Bailer
-
14275000007 Hose 8 mmHose 8 mm
-
15293710057 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
16275500446 Vent Hose 6 mmVent Hose 6 mm
-
17232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
18292000488 ShellShell
-
19250200011 Flat Washer 8 mmFlat Washer 8 mm
-
20292000486 Eye-Bow (Yellow)Eye-Bow (Yellow)
-
21275500167 Check ValveCheck Valve
-
22296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
23293150037 Rivet 3/16Rivet 3/16
-
24293720042 GrommetGrommet
-
25293750005 Tie-ClampTie-Clamp
-
26293720046 GrommetGrommet
-
27292000494 R.H. SponsonR.H. Sponson
-
292000495 L.H. SponsonL.H. Sponson
-
28293250026 GasketGasket
-
29234062600 Washer 6 mmWasher 6 mm
-
30291000691 Seat StudSeat Stud
-
31232561600 Nut M6Nut M6
-
32293800060 Loctite 243, 10mlLoctite 243, 10ml
-
33295500369 Grab Handle Kit (Black). Includes 33 - 37.Grab Handle Kit (Black). Includes 33 - 37.
-
34207064060 Hex. Screw M6 x 40Hex. Screw M6 x 40
-
35234062600 Flat Washer 6 mmFlat Washer 6 mm
-
36293750015 Tie Rap MountTie Rap Mount
-
37232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
38271000598 Nut Housing. Includes 38 - 39.Nut Housing. Includes 38 - 39.
-
39232501600 Elastic Stop Nut M10Elastic Stop Nut M10
-
40291000628 Rubber WasherRubber Washer
-
41232100600 Jam Nut M10Jam Nut M10
-
42291001098 RestrictorRestrictor
