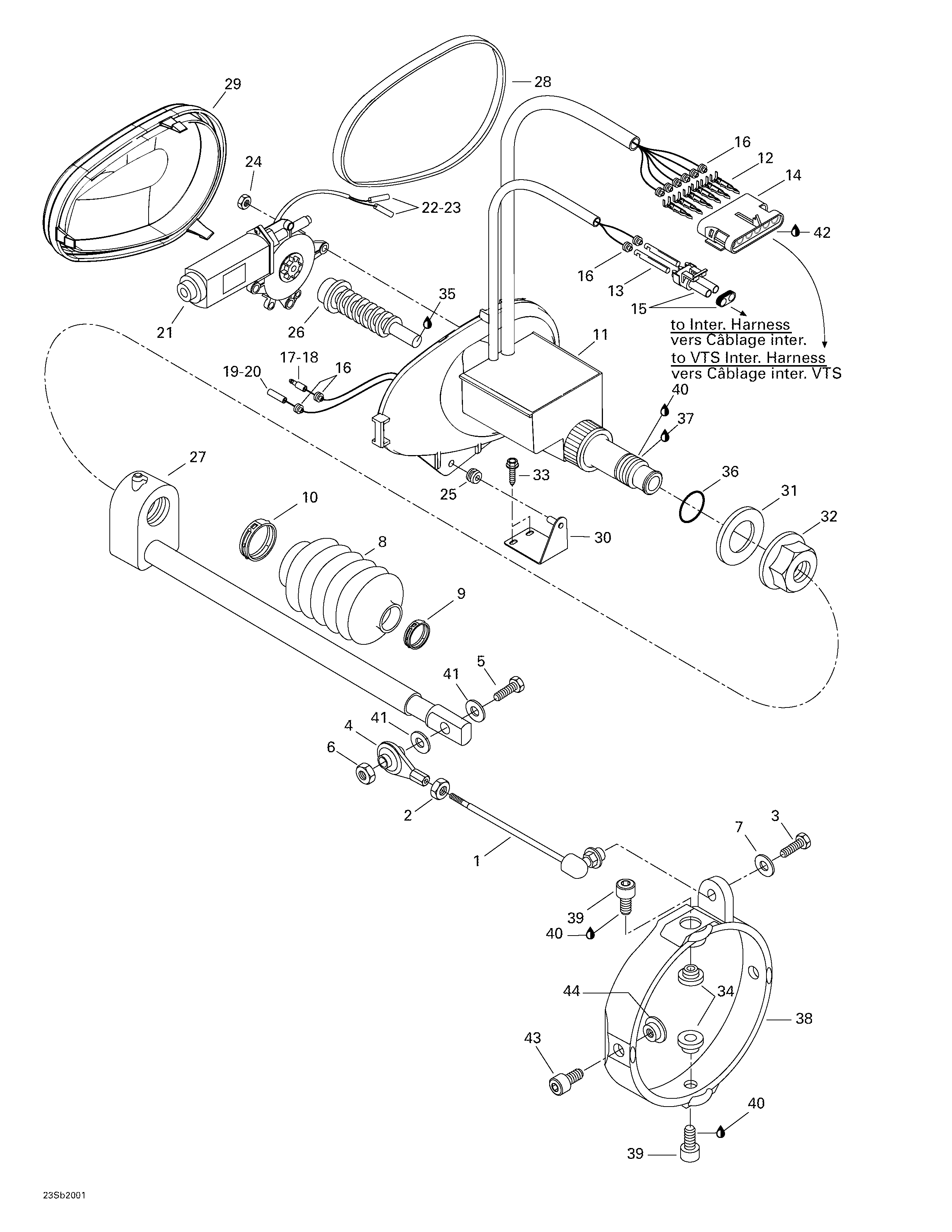

05- Trim для BRP GSX RFI, 5645/5654 - 2000
-
№АртикулНазвание
-
1271000580 Moulding RodMoulding Rod
-
2212100005 NutNut
-
3243041660 Screw M4 x 16Screw M4 x 16
-
4277000153 Ball JointBall Joint
-
5207063560 Hex. Screw M6 x 35Hex. Screw M6 x 35
-
6232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
7234052600 Flat Washer 5 mmFlat Washer 5 mm
-
8271000459 Protector HoseProtector Hose
-
9293650082 Daemar ClampDaemar Clamp
-
10293650083 Daemar ClampDaemar Clamp
-
11278001293 V.T.S Housing Ass'y. Includes 11 - 29.V.T.S Housing Ass'y. Includes 11 - 29.
-
11278001074 V.T.S Housing Ass'y. Includes 11 - 20.V.T.S Housing Ass'y. Includes 11 - 20.
-
12278000222 Male TerminalMale Terminal
-
13278000223 Female TerminalFemale Terminal
-
14278000156 Female Housing (6 Ways)(Packard)Female Housing (6 Ways)(Packard)
-
15278000220 Male Housing (2 Ways)(Packard)Male Housing (2 Ways)(Packard)
-
16278000218 Wire SealWire Seal
-
17278000230 Male TerminalMale Terminal
-
18278001008 Insulation Sleeve (Yasaki)Insulation Sleeve (Yasaki)
-
19278001009 Female Terminal (14 and 18 Gauge) (AMP)Female Terminal (14 and 18 Gauge) (AMP)
-
20278001007 Insulation Sleeve (Yasaki)Insulation Sleeve (Yasaki)
-
21278001292 VTS Motor Ass'y. Includes 21 - 23.VTS Motor Ass'y. Includes 21 - 23.
-
22278000231 Insulating SheetInsulating Sheet
-
23278000230 Male TerminalMale Terminal
-
24232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
25293720015 GrommetGrommet
-
26278000428 Worm ScrewWorm Screw
-
27278000883 Sliding BlockSliding Block
-
28293200027 GasketGasket
-
29278000595 V.T.S CoverV.T.S Cover
-
30292000250 V.T.S SupportV.T.S Support
-
31293830027 Seal WasherSeal Washer
-
32211100020 Special Nut M27Special Nut M27
-
33243041660 Hex. Plastic Screw M4 x 16Hex. Plastic Screw M4 x 16
-
34293900007 Venturi BushingVenturi Bushing
-
35293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
36293300044 O-RingO-Ring
-
37293800041 Loctite - Primer NLoctite - Primer N
-
38271000578 Trimming RingTrimming Ring
-
39211000089 Socket Head Screw M8 x 10Socket Head Screw M8 x 10
-
40293800060 Loctite 243, 10mLLoctite 243, 10mL
-
41234061600 Washer 6 mmWasher 6 mm
-
42293550004 Dielectric Grease, 150 grDielectric Grease, 150 gr
-
43211000007 ScrewScrew
-
44271000321 Venturi BushingVenturi Bushing
