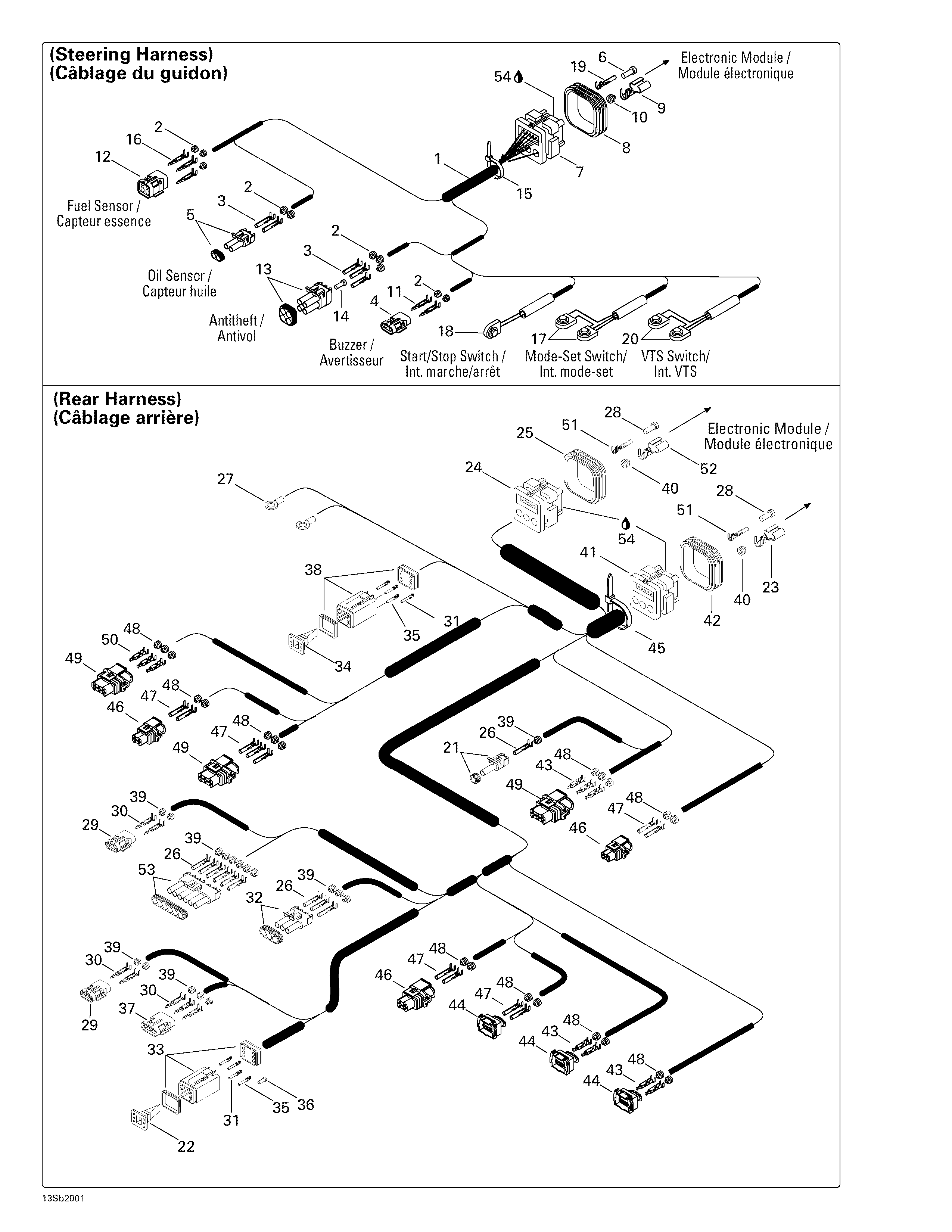

10- Electrical Harness для BRP GSX RFI, 5645/5654 - 2000
-
№АртикулНазвание
-
1278001393 Steering Harness. Includes 1 - 20.Steering Harness. Includes 1 - 20.
-
2278000218 Wire Seal (16-18 Gauge) (Green) (Packard)Wire Seal (16-18 Gauge) (Green) (Packard)
-
3278000223 Female Terminal (18 Gauge)(Packard)Female Terminal (18 Gauge)(Packard)
-
4278000217 Female Housing (2 Circuits)(Packard)Female Housing (2 Circuits)(Packard)
-
5278000220 Male Housing (2 Circuits)(Packard)Male Housing (2 Circuits)(Packard)
-
6293000070 Sealing Cap (AMP)Sealing Cap (AMP)
-
7278001062 Male Housing (26 Circuits) (AMP). Includes 7 - 8.Male Housing (26 Circuits) (AMP). Includes 7 - 8.
-
8278001307 Wire Seal (AMP)Wire Seal (AMP)
-
9278000994 Female Terminal(AMP)Female Terminal(AMP)
-
10278000996 Wire Seal(AMP)Wire Seal(AMP)
-
11278000222 Male Terminal (18 Gauge)(Packard)Male Terminal (18 Gauge)(Packard)
-
12278001308 Male Housing (4 Circuits)Male Housing (4 Circuits)
-
13278000891 Male Housing (4 Circuits)(Packard)Male Housing (4 Circuits)(Packard)
-
14278000216 Wire Seal (Cap)(Packard)Wire Seal (Cap)(Packard)
-
15293750002 Tie Rap 130 mmTie Rap 130 mm
-
16278001114 Terminal Female (Packard)Terminal Female (Packard)
-
17278001375 Mode-Set Switch Ass'yMode-Set Switch Ass'y
-
18278001403 Stop/Start Switch Ass'yStop/Start Switch Ass'y
-
19278000995 Female Terminal(AMP)Female Terminal(AMP)
-
20278001404 VTS Switch Ass'yVTS Switch Ass'y
-
21278001357 Rear Harness. Includes 21 - 53.Rear Harness. Includes 21 - 53.
-
21278000219 Male Housing (1 Circuit)(Packard)Male Housing (1 Circuit)(Packard)
-
22278000738 (Male) Secondary Lock (4 Circuits)(Male) Secondary Lock (4 Circuits)
-
23409011700 Female Terminal(AMP)Female Terminal(AMP)
-
24278001063 Male Housing (26 Circuits) (AMP). Includes 24 - 25.Male Housing (26 Circuits) (AMP). Includes 24 - 25.
-
25278001307 Wire Seal (AMP)Wire Seal (AMP)
-
26278000223 Female TerminalFemale Terminal
-
27409012600 Open BarrelOpen Barrel
-
28293000070 Sealing CapSealing Cap
-
29278000217 Female Housing (2 Circuits)(Packard)Female Housing (2 Circuits)(Packard)
-
30409004300 Male TerminalMale Terminal
-
31278001276 Female Terminal (Deutsch)Female Terminal (Deutsch)
-
32278000273 Male Housing (3 Circuits)(Packard)Male Housing (3 Circuits)(Packard)
-
33278000736 Male Housing (6 Circuits)(Deutsch)Male Housing (6 Circuits)(Deutsch)
-
34278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
35278000632 Female Terminal (16-18 Gauge)(Deutsch)Female Terminal (16-18 Gauge)(Deutsch)
-
36293000052 Sealing Cap (Deutsch)Sealing Cap (Deutsch)
-
37278000281 Female Housing (3 Circuits)(Packard)Female Housing (3 Circuits)(Packard)
-
38278000739 Male Housing (4 Circuits) (Deutsch)Male Housing (4 Circuits) (Deutsch)
-
39278000218 Wire Seal (16-18 Gauge) (Green) (Packard)Wire Seal (16-18 Gauge) (Green) (Packard)
-
40278001223 Female Terminal (18 Gauge)(Packard)Female Terminal (18 Gauge)(Packard)
-
41278001211 Male Housing (26 Circuits) (AMP). Includes 41 - 42.Male Housing (26 Circuits) (AMP). Includes 41 - 42.
-
42278001307 Wire Seal(AMP)Wire Seal(AMP)
-
43278001310 Female Terminal(AMP)Female Terminal(AMP)
-
44278001003 Male Housing (2 Circuits)(Bosch)Male Housing (2 Circuits)(Bosch)
-
45293750002 Tie Rap 130 mmTie Rap 130 mm
-
46278001005 Male Housing (2 Circuits)(Bosch)Male Housing (2 Circuits)(Bosch)
-
47278000998 Female Terminal(AMP)Female Terminal(AMP)
-
48278000999 Wire Seal(AMP)Wire Seal(AMP)
-
49278000997 Male Housing (3 Circuits)(Bosch)Male Housing (3 Circuits)(Bosch)
-
50278001210 Female Terminal(AMP)Female Terminal(AMP)
-
51278000995 Female Terminal(AMP)Female Terminal(AMP)
-
52409011700 Female Terminal(AMP)Female Terminal(AMP)
-
53278000221 Male Housing (6 Circuits)(Packard)Male Housing (6 Circuits)(Packard)
-
54293550015 ''Deoxit'' Spray Lube''Deoxit'' Spray Lube
