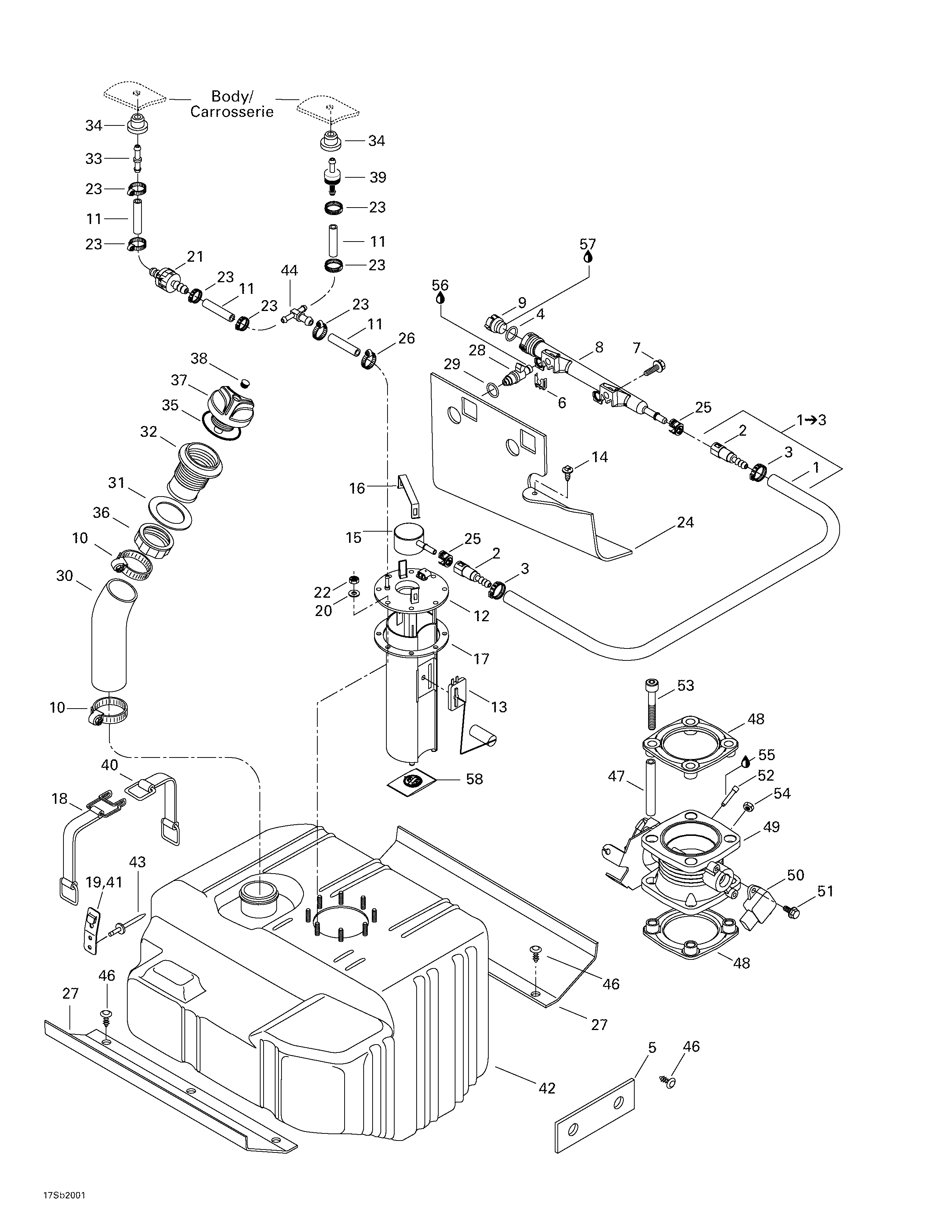

02- Fuel System для BRP GSX RFI, 5645/5654 - 2000
-
№АртикулНазвание
-
1275500437 Hose Ass'y. Includes 1 - 3.Hose Ass'y. Includes 1 - 3.
-
1204000068 Hose 1/4 ''Hose 1/4 ''
-
2275500428 ConnectorConnector
-
3293650053 Crimp ClampCrimp Clamp
-
4293300042 O'RingO'Ring
-
5292000343 Rubber PadRubber Pad
-
6270600010 Injector CirclipInjector Circlip
-
7207562560 Hex. Flanged Screw (Scotch Grip)Hex. Flanged Screw (Scotch Grip)
-
8270600008 Fuel RailFuel Rail
-
9270600009 CapCap
-
10293650023 Tridon ClampTridon Clamp
-
11275500139 Hose 6 mmHose 6 mm
-
12270600029 Fuel Pump Module. Includes 12 - 16.Fuel Pump Module. Includes 12 - 16.
-
13270600012 Sensor LevelSensor Level
-
14293730018 Dart MountDart Mount
-
17293250088 GasketGasket
-
18293850025 Strap. Includes 18 - 19.Strap. Includes 18 - 19.
-
19293850024 Strap ClipStrap Clip
-
20234052400 Flat Washer 5 mmFlat Washer 5 mm
-
21275500416 Check ValveCheck Valve
-
22232551200 Elastic Stop Nut M5Elastic Stop Nut M5
-
23293650042 Clamp OetikerClamp Oetiker
-
24275500441 Rail ProtectorRail Protector
-
25275500429 Connector StopperConnector Stopper
-
26293650038 Tridon ClampTridon Clamp
-
27293830077 Pad RubberPad Rubber
-
28270600017 Injector. Includes 28 - 29.Injector. Includes 28 - 29.
-
29293300071 O'RingO'Ring
-
30275500353 Filler Neck HoseFiller Neck Hose
-
31293250029 GasketGasket
-
32275500231 Filler NeckFiller Neck
-
33293710039 Straight FittingStraight Fitting
-
34293720029 GrommetGrommet
-
35293250075 GasketGasket
-
36211100012 Nut-Fuel Filler NeckNut-Fuel Filler Neck
-
37275500430 Fuel Tank Cap. Includes 37 - 38.Fuel Tank Cap. Includes 37 - 38.
-
38293000034 Cap SnapCap Snap
-
39275500398 Check ValveCheck Valve
-
40293850026 Strap. Includes 40 - 41.Strap. Includes 40 - 41.
-
41293850024 Strap ClipStrap Clip
-
42275500427 Fuel TankFuel Tank
-
43293150037 Rivet 3/16Rivet 3/16
-
44293710024 > Fitting> Fitting
-
46293730006 Dart BlackDart Black
-
47275500352 Spacer TubeSpacer Tube
-
48293250071 GasketGasket
-
49270600020 Throttle Body Ass'y. Includes 49 - 51.Throttle Body Ass'y. Includes 49 - 51.
-
50270000251 Position SensorPosition Sensor
-
51211000205 Potentiometer Screw M4Potentiometer Screw M4
-
52205063060 Socket Head Screw M6 x 30Socket Head Screw M6 x 30
-
53205569060 Socket Head Screw M6 x 90 (Scotch Grip)Socket Head Screw M6 x 90 (Scotch Grip)
-
54232160600 Hexagonal Jam Nut M6Hexagonal Jam Nut M6
-
55293800060 Loctite 243, 10 mLLoctite 243, 10 mL
-
56293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
57413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
58219700368 Lower FilterLower Filter
