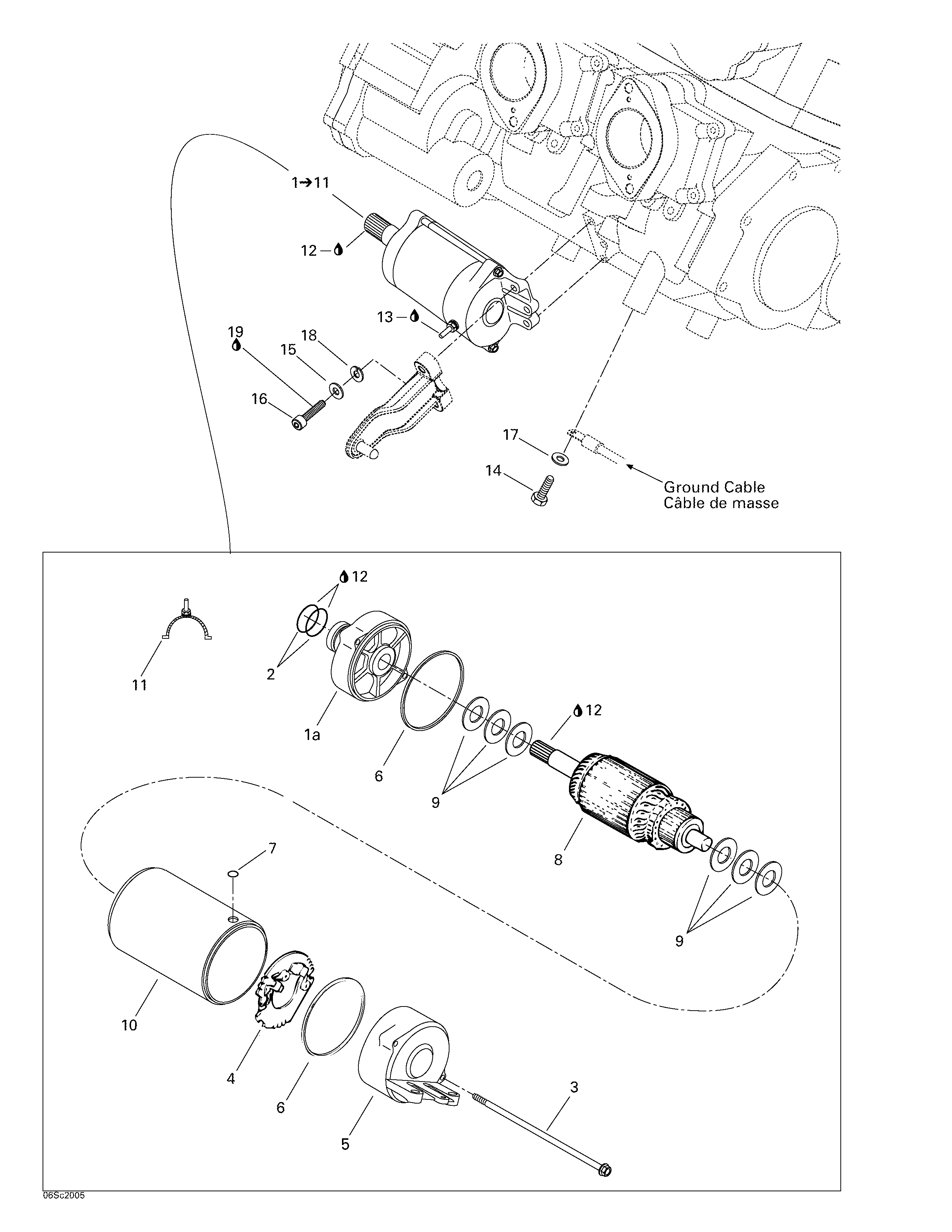

04- Starter для BRP GTX DI, 5649/5659 - 2000
-
№АртикулНазвание
-
1278000987 Starter Ass'y. Includes 1 - 11.Starter Ass'y. Includes 1 - 11.
-
1a278001152 Front HousingFront Housing
-
2278001159 O-RingO-Ring
-
3278001157 ScrewScrew
-
4278001154 Brush HolderBrush Holder
-
5278001156 Rear HousingRear Housing
-
6278001158 Square RingSquare Ring
-
7278001160 O-RingO-Ring
-
8278001155 ArmatureArmature
-
9278001161 Set WasherSet Washer
-
10278001153 Starter HousingStarter Housing
-
11278001385 Brush SetBrush Set
-
12293550010 Synthetic Grease, 400 grSynthetic Grease, 400 gr
-
13293550004 Dielectric Grease, 150 grDielectric Grease, 150 gr
-
14207302060 Scew Hex. M10 x 20 (Scotch Grip)Scew Hex. M10 x 20 (Scotch Grip)
-
15234061600 Flat Washer 6 mmFlat Washer 6 mm
-
16205063560 Socket Head Screw M6 x 35Socket Head Screw M6 x 35
-
17234001600 Flat Washer 10 mmFlat Washer 10 mm
-
18234161601 Helical Lock Washer 6 mmHelical Lock Washer 6 mm
-
19293800060 Loctite 243, 10 mlLoctite 243, 10 ml
