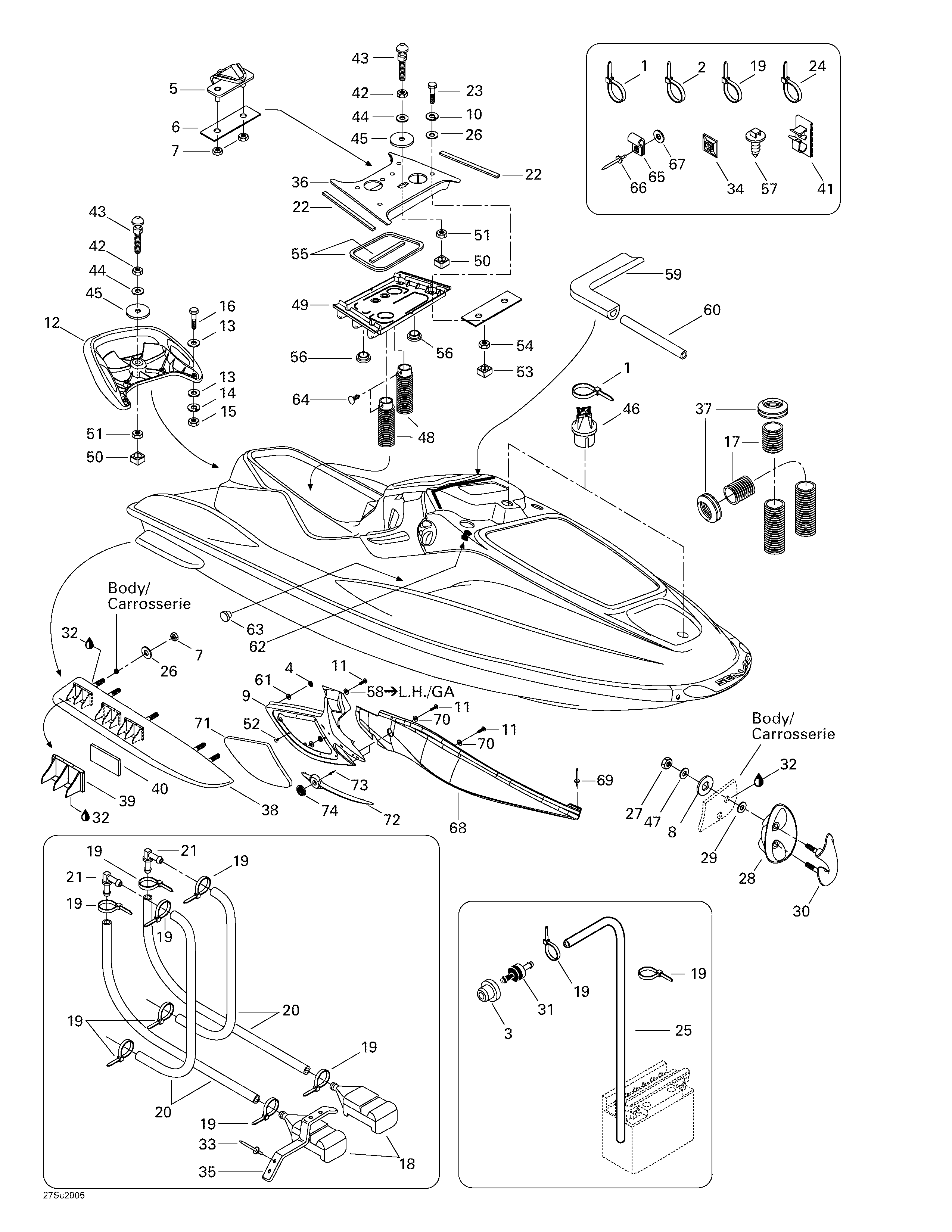

09- Body, Front View для BRP GTX DI, 5649/5659 - 2000
-
№АртикулНазвание
-
1414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
2293750008 Tie Rap 350 mmTie Rap 350 mm
-
3293720029 GrommetGrommet
-
4211200055 Flat WasherFlat Washer
-
5291001479 Hook (Rear Seat)Hook (Rear Seat)
-
6291000079 Plate ReinforcementPlate Reinforcement
-
7232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
8293830037 Rubber WasherRubber Washer
-
9269500715 R.H. Intake GrillR.H. Intake Grill
-
269500714 LH Intake GrillLH Intake Grill
-
10234161601 Lock Washer 6 mmLock Washer 6 mm
-
11241141660 Screw K40 x 16Screw K40 x 16
-
12295500369 Grab Handle (Black). Includes 12 - 16.Grab Handle (Black). Includes 12 - 16.
-
13234062600 Flat washer M6Flat washer M6
-
14234161601 Lock washer M6Lock washer M6
-
15232061600 Nut M6Nut M6
-
16207064060 Hex. Screw M6 x 40Hex. Screw M6 x 40
-
17291001473 Vent TubeVent Tube
-
18292000688 Screen BailerScreen Bailer
-
19293750001 Tie Rap 94 mmTie Rap 94 mm
-
20275000007 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
21293710057 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
22293250008 Gasket (Meter)Gasket (Meter)
-
23207067060 Hex. Screw M6 x 70Hex. Screw M6 x 70
-
24293750002 Tie Rap 130 mmTie Rap 130 mm
-
25275500446 Hose 6 mm (Meter)Hose 6 mm (Meter)
-
26234062600 Flat Washer 6 mmFlat Washer 6 mm
-
27232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
28292000638 Shell (Blue)Shell (Blue)
-
29234081600 Washer 8 mmWasher 8 mm
-
30292000712 Bow Eye (Blue)Bow Eye (Blue)
-
31275500167 Check ValveCheck Valve
-
32296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
33293150037 Rivet 3/16Rivet 3/16
-
34293750015 Tie Rap MountTie Rap Mount
-
35292000398 LH Spring ClipLH Spring Clip
-
36291000851 Bridge UpperBridge Upper
-
37291001100 Adapter VentAdapter Vent
-
38292000594 R.H. SponsonR.H. Sponson
-
292000595 LH SponsonLH Sponson
-
39293450149 Insert SponsonInsert Sponson
-
40292000414 CushionCushion
-
41293750005 Tie-ClampTie-Clamp
-
42232100600 Jam Nut M10Jam Nut M10
-
43291000945 Latch StudLatch Stud
-
44234002600 Washer 10 mmWasher 10 mm
-
45291000628 Rubber WasherRubber Washer
-
46293720042 GrommetGrommet
-
47250200011 Washer 8 mmWasher 8 mm
-
48291001441 Vent TubeVent Tube
-
49291001281 Bridge LowerBridge Lower
-
50271000598 Nut Housing. Includes 50 - 51.Nut Housing. Includes 50 - 51.
-
51232501600 Elastic Stop Nut M10Elastic Stop Nut M10
-
52414644300 DartDart
-
53269500252 Nut Housing. Includes 53 - 54.Nut Housing. Includes 53 - 54.
-
54232061600 Elastic Stop Nut M6Elastic Stop Nut M6
-
55293200003 Seal (Meter)Seal (Meter)
-
56293000049 PlugPlug
-
57293730018 DartDart
-
58211200033 Flat Washer (Left Side Only)Flat Washer (Left Side Only)
-
59293200017 Neoprene SealNeoprene Seal
-
60275500018 Hose 6 mm (Meter)Hose 6 mm (Meter)
-
61250100008 Push NutPush Nut
-
62291001512 Protective StripProtective Strip
-
63293000089 CapCap
-
64293730011 Dart (Black)Dart (Black)
-
65293750021 Tie ClampTie Clamp
-
66293150005 Pop Rivet 3/16Pop Rivet 3/16
-
67213200016 Flat WasherFlat Washer
-
68291001404 Moulding RHMoulding RH
-
291001403 Moulding LHMoulding LH
-
69293150080 Pop Rivet 3/16Pop Rivet 3/16
-
70234052600 Flat Washer 5 mmFlat Washer 5 mm
-
71269000670 Knee Pad RHKnee Pad RH
-
269000671 Knee Pad LHKnee Pad LH
-
72269500716 Finition PlateFinition Plate
-
73293150011 Pop Rivet 3/16Pop Rivet 3/16
-
74516000983 BOMBARDIER LogoBOMBARDIER Logo
