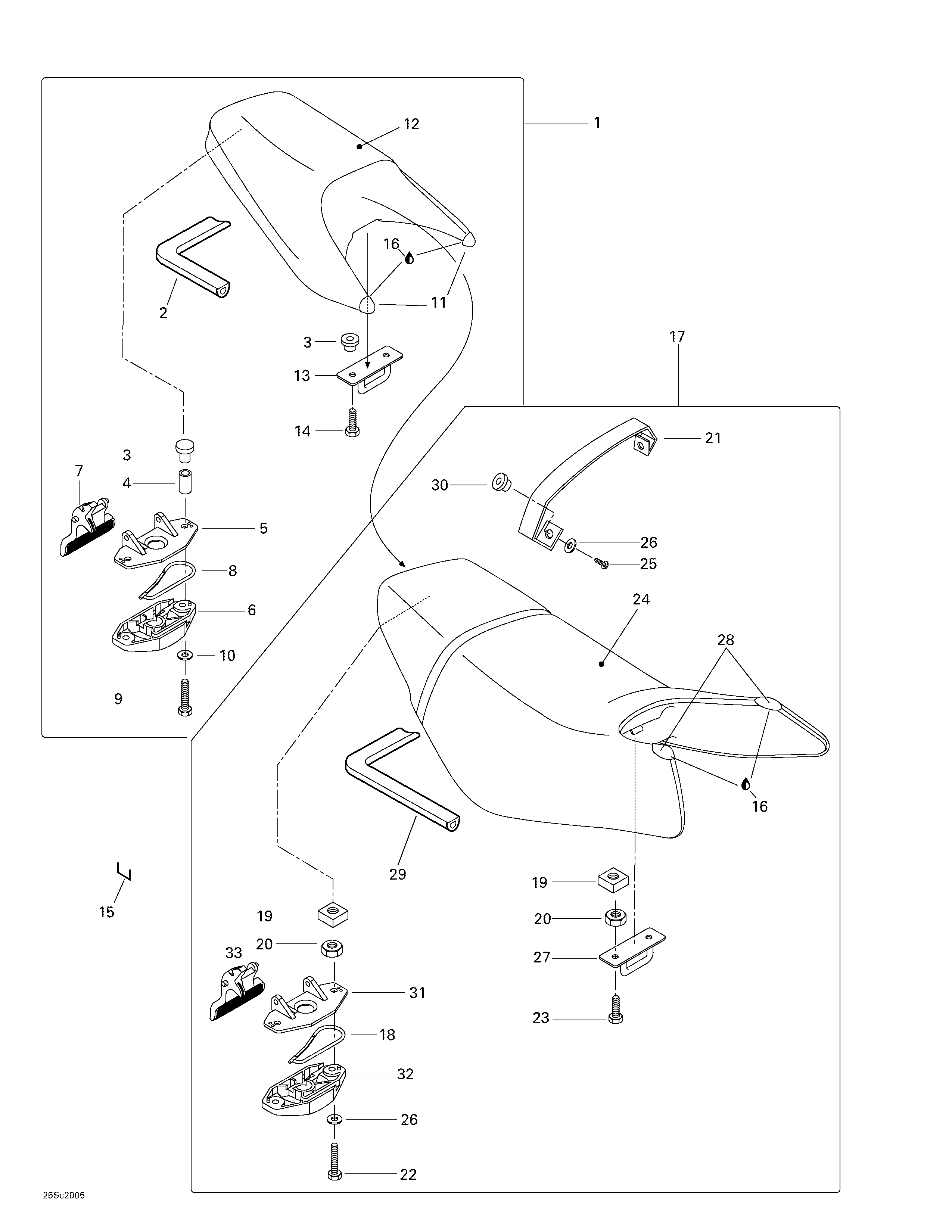

09- Seat Rear для BRP GTX DI, 5649/5659 - 2000
-
№АртикулНазвание
-
1269000630 Rear Seat Ass'y. Includes 1 - 14.Rear Seat Ass'y. Includes 1 - 14.
-
2293200017 Neoprene Seal (Meter)Neoprene Seal (Meter)
-
3293100003 Nut M6Nut M6
-
4291000532 SpacerSpacer
-
5269700020 Latch CoverLatch Cover
-
6269000015 Latch BaseLatch Base
-
7269000016 Latch LeverLatch Lever
-
8269700017 Latch SpringLatch Spring
-
9207363560 Hex. Screw M6 x 35 (Scotch Grip)Hex. Screw M6 x 35 (Scotch Grip)
-
10234061600 Washer 6 mmWasher 6 mm
-
11269000636 Rear Seat Corner RHRear Seat Corner RH
-
269000637 Rear Seat Corner LHRear Seat Corner LH
-
12269000635 Rear Seat CoverRear Seat Cover
-
13291001357 Hook BaseHook Base
-
14205561660 Hex. Screw M6 x 16 (Scotch Grip)Hex. Screw M6 x 16 (Scotch Grip)
-
15293730005 StapleStaple
-
16413705800 Loctite 414, 29.5 c.cLoctite 414, 29.5 c.c
-
17269000615 Front Seat Ass'y. Includes 17 - 33.Front Seat Ass'y. Includes 17 - 33.
-
18269700017 Latch SpringLatch Spring
-
19269500252 Nut Housing. Includes 19 - 20.Nut Housing. Includes 19 - 20.
-
20232061600 Elastic Stop Nut M6Elastic Stop Nut M6
-
21269000629 Strap SeatStrap Seat
-
22207363060 Hex. Screw M6 x 30 (Scotch Grip)Hex. Screw M6 x 30 (Scotch Grip)
-
23205562060 Hex. Screw M6 x 20 (Scotch Grip)Hex. Screw M6 x 20 (Scotch Grip)
-
24269000616 Front Seat CoverFront Seat Cover
-
25205961660 Socket Screw M6 x 16 (Scotch Grip)Socket Screw M6 x 16 (Scotch Grip)
-
26234061600 Washer 6 mmWasher 6 mm
-
27291001357 Hook BaseHook Base
-
28269000617 Seat CornerSeat Corner
-
29293200017 Neoprene Seal (Meter)Neoprene Seal (Meter)
-
30293100003 Nut M6Nut M6
-
31269700020 Latch CoverLatch Cover
-
32269000015 Latch BaseLatch Base
-
33269000016 Latch LeverLatch Lever
