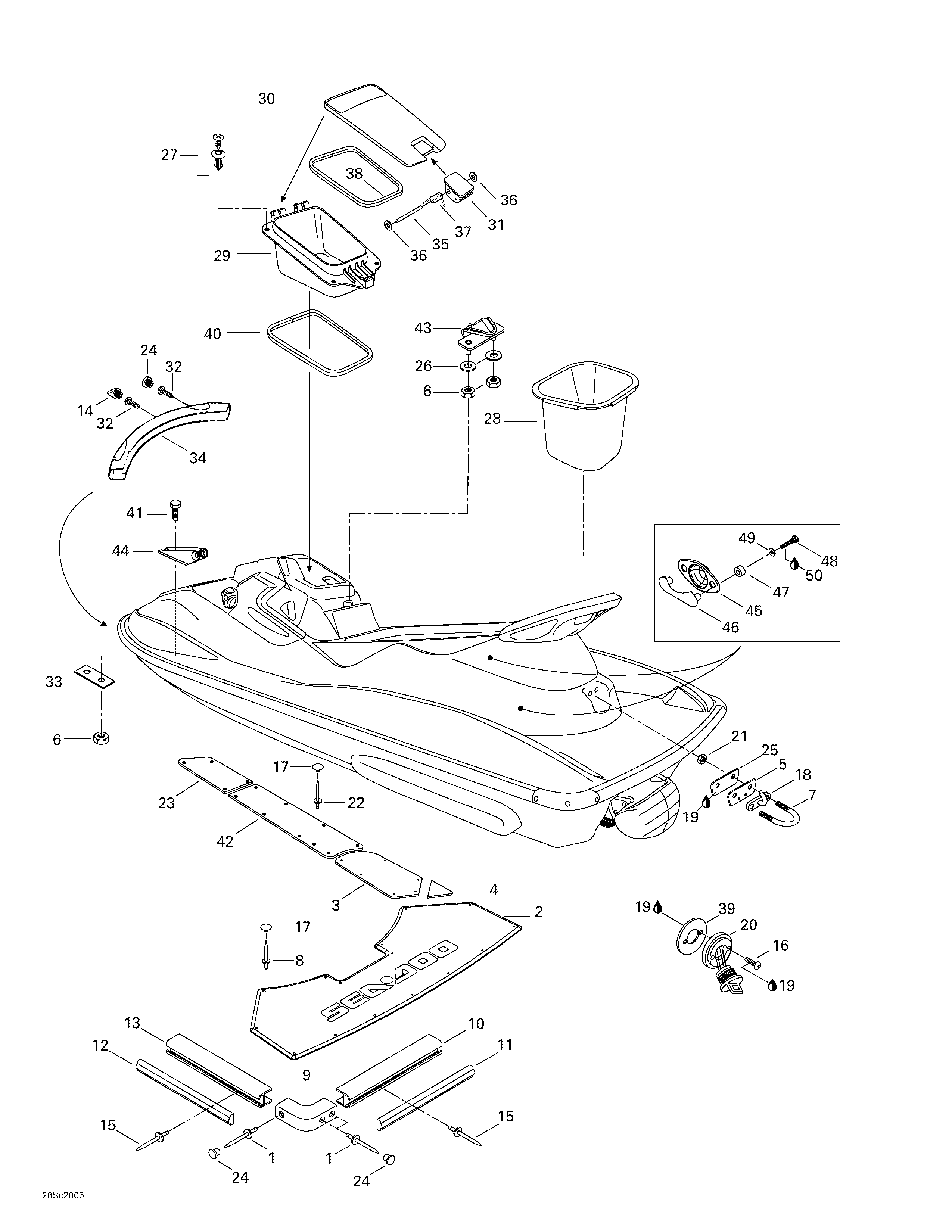

09- Body, Rear View для BRP GTX DI, 5649/5659 - 2000
-
№АртикулНазвание
-
1293150013 Pop Rivet 3/16Pop Rivet 3/16
-
2291001053 Center Rear Carpet (Black)Center Rear Carpet (Black)
-
3291001051 R.H. Lateral Carpet (Black)R.H. Lateral Carpet (Black)
-
291001052 LH Lateral Carpet (Black)LH Lateral Carpet (Black)
-
4291000935 R.H. Anti-Skid CarpetR.H. Anti-Skid Carpet
-
291000936 LH Anti-Skid CarpetLH Anti-Skid Carpet
-
5291000307 Retainer PlateRetainer Plate
-
6232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
7292000011 > Clamp> Clamp
-
8293150036 Pop Rivet 1/8Pop Rivet 1/8
-
9291001505 Bumper CornerBumper Corner
-
10291001226 Rear Bumper (Black)Rear Bumper (Black)
-
11291001227 Rear Bumper Trim (Black)Rear Bumper Trim (Black)
-
12291001225 Side Bumper Trim (Black)Side Bumper Trim (Black)
-
13291001224 Side Bumper (Black)Side Bumper (Black)
-
14291001040 Bumper Plug (Black)Bumper Plug (Black)
-
15293150005 Pop Rivet 3/16Pop Rivet 3/16
-
16211000021 Screw Self tappingScrew Self tapping
-
17293000014 Cap (Black)Cap (Black)
-
18291001232 HookHook
-
19296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
20292000187 Drain PlugDrain Plug
-
21232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
22293150016 Pop Rivet 1/8Pop Rivet 1/8
-
23291001032 Front R.H. Lateral Carpet (Black)Front R.H. Lateral Carpet (Black)
-
291001033 Front LH Lateral Carpet (Black)Front LH Lateral Carpet (Black)
-
24291000339 Bumper Plug (Black)Bumper Plug (Black)
-
25291000544 Finition PlateFinition Plate
-
26234062600 Washer 6 mmWasher 6 mm
-
27211000088 Lock ScrewLock Screw
-
28269500270 Rear TrayRear Tray
-
29269500439 Box GlovesBox Gloves
-
30269500753 Door-Box GlovesDoor-Box Gloves
-
31269500553 LatchLatch
-
32211000037 Screw 10-14 x 7/8Screw 10-14 x 7/8
-
33291000079 Plate ReinforcementPlate Reinforcement
-
34291001035 Nose Bumper (Black)Nose Bumper (Black)
-
35211400008 PinPin
-
36211100002 Nut PushNut Push
-
37291000922 Spring LatchSpring Latch
-
38293250060 GasketGasket
-
39293250030 GasketGasket
-
40293250061 GasketGasket
-
41207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
42291001030 Center R.H. Lateral Carpet (Black)Center R.H. Lateral Carpet (Black)
-
291001031 Center LH Lateral Carpet (Black)Center LH Lateral Carpet (Black)
-
43291001479 HookHook
-
44291000855 Shock SupportShock Support
-
45291001195 Cargo HookCargo Hook
-
46291001196 Cargo Hook CleatsCargo Hook Cleats
-
47291001203 SpacerSpacer
-
48207151660 Hexagonal Screw M5 x 16Hexagonal Screw M5 x 16
-
49234052600 Flat Washer 5 mmFlat Washer 5 mm
-
50293800060 Loctite 243, 10 mlLoctite 243, 10 ml
