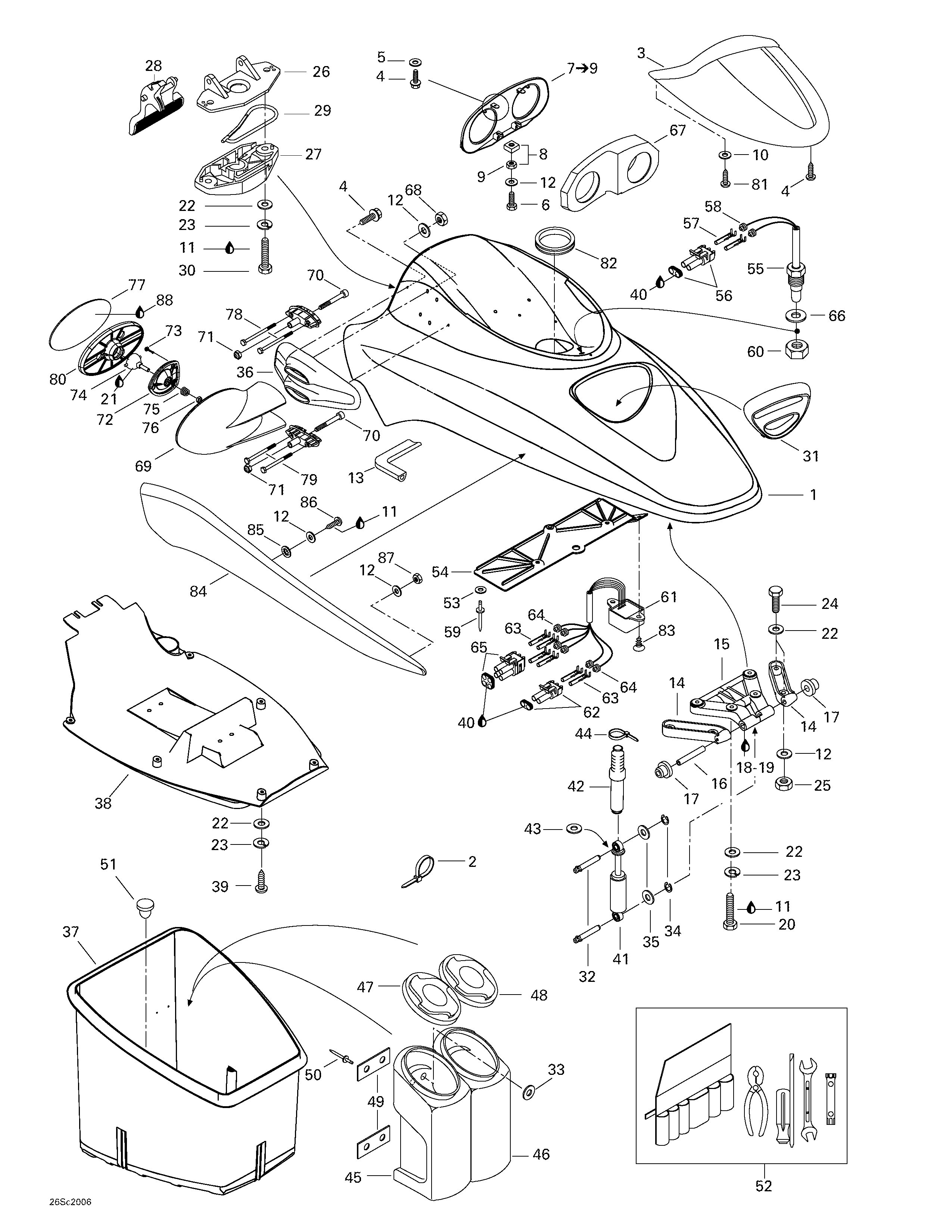

09- Front Storage Compartment для BRP GTX DI, 5649/5659 - 2000
-
№АртикулНазвание
-
1269500768 Storage Cover UpperStorage Cover Upper
-
2293750002 Tie Rap 130 mmTie Rap 130 mm
-
3269500769 DeflectorDeflector
-
4241141660 Screw for Plastic K40 x 16Screw for Plastic K40 x 16
-
5234041600 Washer 4 mmWasher 4 mm
-
6207162560 Screw Hex. M6 x 25Screw Hex. M6 x 25
-
7269500588 Dash Board. Includes 7 - 9.Dash Board. Includes 7 - 9.
-
8269500725 Nut Housing Ass'y. Includes 8 - 9.Nut Housing Ass'y. Includes 8 - 9.
-
9232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
10211200007 Flat WasherFlat Washer
-
11293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
12234062600 Washer 6 mmWasher 6 mm
-
13293250047 Seal Neoprene (Meter)Seal Neoprene (Meter)
-
14269700022111 Hinge RHHinge RH
-
269700023111 Hinge LHHinge LH
-
15269700038 Hinge Cover (White)Hinge Cover (White)
-
16269700024 AxleAxle
-
17293350016 CushionCushion
-
18293800054 Loctite 648, 50 mlLoctite 648, 50 ml
-
19293800041 Loctite - PrimerLoctite - Primer
-
20207162060 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
21293550010 Synthetic Grease, 400 grSynthetic Grease, 400 gr
-
22234061600 Washer 6 mmWasher 6 mm
-
23234161601 Lock Washer 6 mmLock Washer 6 mm
-
24207063560 Hex. Screw M6 x 35Hex. Screw M6 x 35
-
25232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
26269700020 Latch CoverLatch Cover
-
27269000015 Latch BaseLatch Base
-
28269000016 Latch LeverLatch Lever
-
29269700017 SpringSpring
-
30207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
31269500746 Intake GrillIntake Grill
-
32211400006 Short PinShort Pin
-
33234032600 Washer 3 mmWasher 3 mm
-
34293370008 CirclipCirclip
-
35234081600 Washer 8 mmWasher 8 mm
-
36269500757 Support (Mirror) RHSupport (Mirror) RH
-
269500759 Support (Mirror) LHSupport (Mirror) LH
-
37269500269 Front Storage TrayFront Storage Tray
-
38269500660 Lower Storage CoverLower Storage Cover
-
39208661660 Phillips Pan Head Screw M6 x 16Phillips Pan Head Screw M6 x 16
-
40293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
41269500261 Gas Spring Ass'y. Includes 41 - 44.Gas Spring Ass'y. Includes 41 - 44.
-
42291000919 BellowBellow
-
43211200034 Washer AluminumWasher Aluminum
-
44293750001 Tie Rap 94 mmTie Rap 94 mm
-
45269500606 Extinguisher HousingExtinguisher Housing
-
46269500605 Storage HousingStorage Housing
-
47269500603 Extinguisher Housing CoverExtinguisher Housing Cover
-
48269500604 Storage Housing CoverStorage Housing Cover
-
49293250037 GasketGasket
-
50293150033 Pop Rivet 1/8Pop Rivet 1/8
-
51293830005 Rubber PlugRubber Plug
-
52295500783 Tool KitTool Kit
-
53234051500 Washer 5 mmWasher 5 mm
-
54278000857 Mounting PlateMounting Plate
-
55278000851 Temperature Sensor. Includes 55 - 58.Temperature Sensor. Includes 55 - 58.
-
56278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
57278000223 Female Terminal (18 Gauge)Female Terminal (18 Gauge)
-
58278000218 Wire Seal (16 and 18 Gauge - Green)Wire Seal (16 and 18 Gauge - Green)
-
59293150008 Rivet 3/16 x .565Rivet 3/16 x .565
-
60250100004 Plastic Nut M10Plastic Nut M10
-
61278001243 Compass. Includes 61 - 65.Compass. Includes 61 - 65.
-
62278000220 Male Housing (2 Circuits) (Packard)Male Housing (2 Circuits) (Packard)
-
63278000223 Female Terminal (18 Gauge) (Packard)Female Terminal (18 Gauge) (Packard)
-
64278000218 Wire Seal (16 and 18 Gauge-green) (Packard)Wire Seal (16 and 18 Gauge-green) (Packard)
-
65278000891 Male Housing (4 Circuits) (Packard)Male Housing (4 Circuits) (Packard)
-
66234000600 Flat Washer 6 mmFlat Washer 6 mm
-
67269500585 Gauge SupportGauge Support
-
68232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
69269500772 Mirror RH Ass'y. Includes 69 - 80.Mirror RH Ass'y. Includes 69 - 80.
-
269500775 Mirror LH Ass'yMirror LH Ass'y
-
70205087560 Socket Head Screw M8 x 75Socket Head Screw M8 x 75
-
71232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
73241141660 Screw K40 x 16Screw K40 x 16
-
74269500079 Ball JointBall Joint
-
75269500453 SpringSpring
-
76232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
77269500454 MirrorMirror
-
78207068060 Hex. Screw M6 x 80Hex. Screw M6 x 80
-
79207067060 Hex. Screw M6 x 70Hex. Screw M6 x 70
-
81211000098 ScrewScrew
-
82570276900 Rubber RingRubber Ring
-
83293730016 DartDart
-
84269500713 Moulding RH. Includes 84 - 85.Moulding RH. Includes 84 - 85.
-
269500712 Moulding LHMoulding LH
-
85293100003 Nut M6Nut M6
-
86205461660 Socket Screw M6 x 16Socket Screw M6 x 16
-
87232061600 Nut M6Nut M6
-
88296000309 Sealant Silicone, ClearSealant Silicone, Clear
