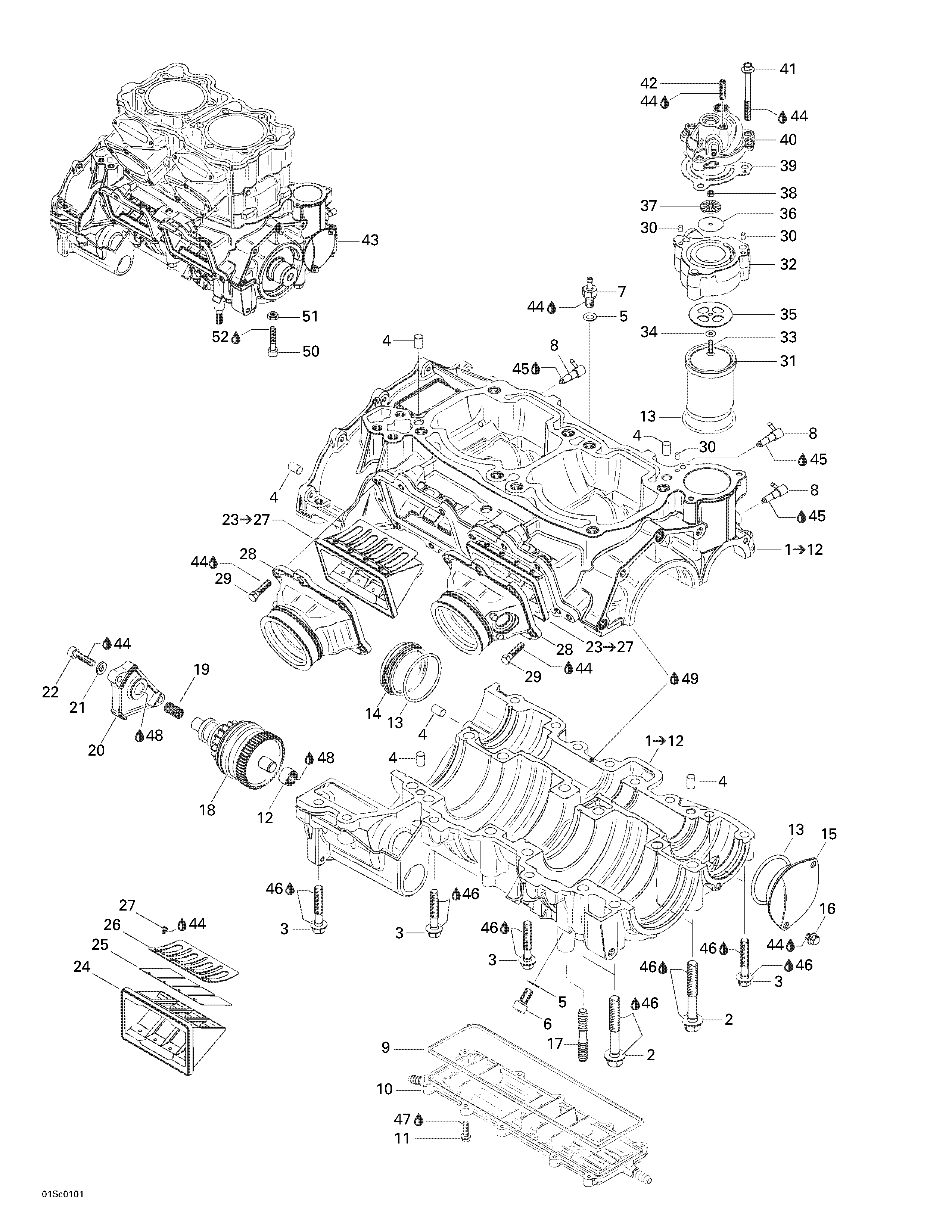

01- Crankcase для BRP RX DI, 5534/5535/5536/5537 - 2001
-
№АртикулНазвание
-
1290888532 Crankcase Ass'y >. Includes 1 - 12.Crankcase Ass'y >. Includes 1 - 12.
-
2290941333 Hex. Flanged Screw M10 x 73.5Hex. Flanged Screw M10 x 73.5
-
3290940638 Hex. Flanged Screw M8 x 45Hex. Flanged Screw M8 x 45
-
4290632010 Pin 8 x 12Pin 8 x 12
-
5420950141 Sealing RingSealing Ring
-
6205081660 Socket Head Screw M8 x 16Socket Head Screw M8 x 16
-
7290640970 Vent Nipple M8Vent Nipple M8
-
8420956510 Check ValveCheck Valve
-
9290931880 Rubber RingRubber Ring
-
10290811430 Waterchannel CoverWaterchannel Cover
-
11290841558 Taptite ScrewTaptite Screw
-
12290232480 Needle BushingNeedle Bushing
-
13290230300 O-RingO-Ring
-
14290811200 Bearing CoverBearing Cover
-
15290811205 Bearing CoverBearing Cover
-
16207661244 Hex. Flanged Screw M6 x 12Hex. Flanged Screw M6 x 12
-
17420840290 Stud M10 x 18Stud M10 x 18
-
18290888042 Starter Drive Ass'yStarter Drive Ass'y
-
19290938204 SpringSpring
-
20290811210 CoverCover
-
21420845020 Spring WasherSpring Washer
-
22420840401 Socket Head Screw M6 x 22Socket Head Screw M6 x 22
-
23290924602 Reed Valve Ass'y. Includes 23 - 27.Reed Valve Ass'y. Includes 23 - 27.
-
25290924612 Reed PedalReed Pedal
-
26290924617 Reed Pedal StopReed Pedal Stop
-
27420941215 Oval Head Screw M3 x 5Oval Head Screw M3 x 5
-
28290867890 Carburator Adapter Ass'yCarburator Adapter Ass'y
-
29207662544 Hex. Flanged Screw M6 x 25Hex. Flanged Screw M6 x 25
-
30290232020 PinPin
-
31290923910 Compressor SleeveCompressor Sleeve
-
32290923891 Compressor HeadCompressor Head
-
33290841368 Oval Head ScrewOval Head Screw
-
34290944590 WasherWasher
-
35290854500 Inlet Reed DiskInlet Reed Disk
-
36290854510 Outlet Reed DiskOutlet Reed Disk
-
37290944600 Diaphragm GuideDiaphragm Guide
-
38290242533 Lock Nut M4Lock Nut M4
-
39290931870 GasketGasket
-
40290923901 Compressor CoverCompressor Cover
-
41290640563 Hex. Flanged ScrewHex. Flanged Screw
-
42290640873 Adjuster Screw M6 x 25Adjuster Screw M6 x 25
-
43290094705 Short Block Ass'y (947 DI)Short Block Ass'y (947 DI)
-
44293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
45413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
46293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
47293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
48293550014 Grease, Super Lube #823-28Grease, Super Lube #823-28
-
49293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
-
50205003060 Socket Head Screw M10 x 30Socket Head Screw M10 x 30
-
51232001600 Hex. Nut M10Hex. Nut M10
-
52293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
53290888134 Engine Gasket Set (Not Shown)Engine Gasket Set (Not Shown)
-
54290888139 Cylinder Gasket Set (Not Shown)Cylinder Gasket Set (Not Shown)
