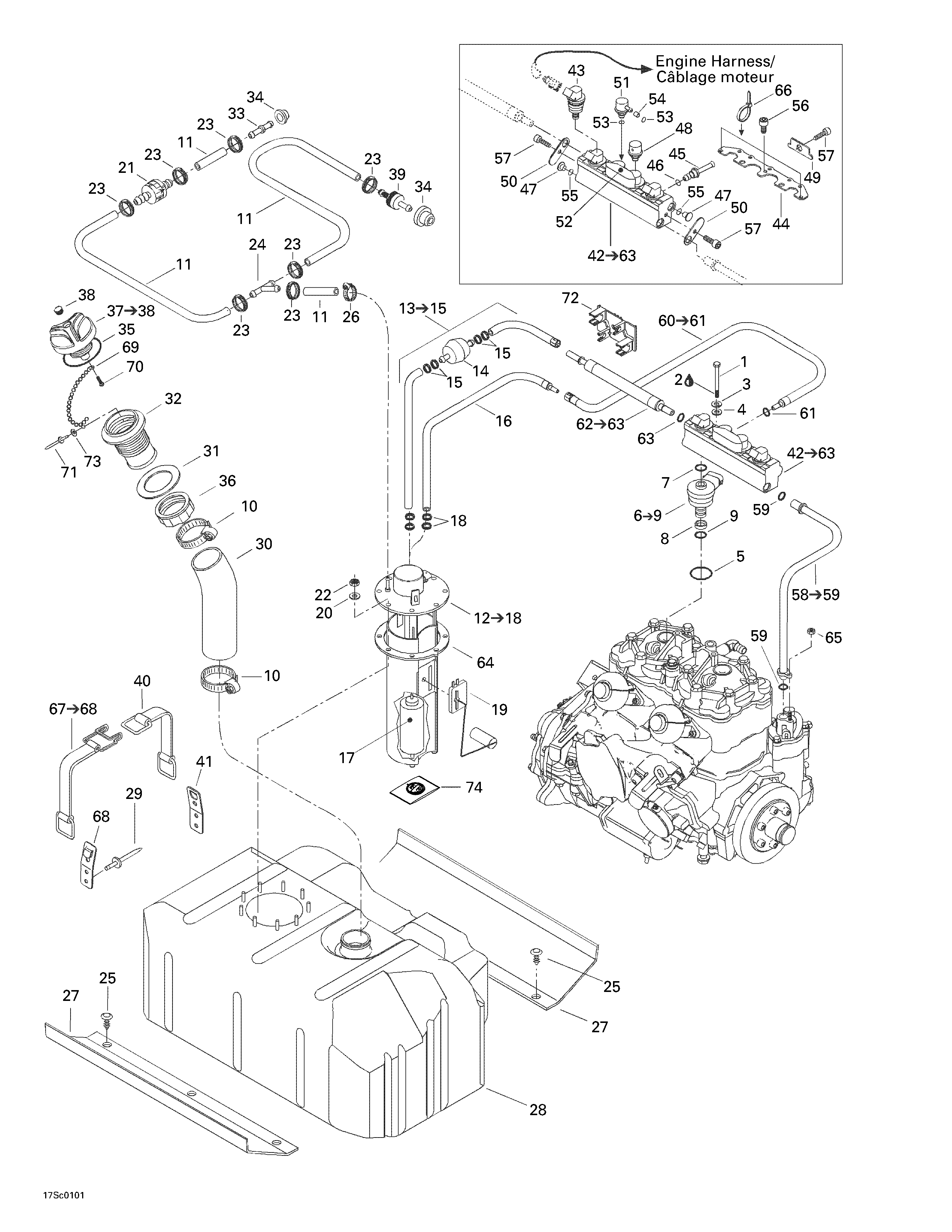

02- Fuel System для BRP RX DI, 5534/5535/5536/5537 - 2001
-
№АртикулНазвание
-
1207087060 Hex. Screw M8 x 70Hex. Screw M8 x 70
-
2293800060 Loctite 243, 10 mLLoctite 243, 10 mL
-
3234181601 Lock Washer 8 mmLock Washer 8 mm
-
4234081600 Flat Washer 8 mmFlat Washer 8 mm
-
5293300054 O-RingO-Ring
-
6275500512 Air Injector. Includes 6 - 9.Air Injector. Includes 6 - 9.
-
7293300066 O-RingO-Ring
-
8270600030 Injector RingInjector Ring
-
9293300076 O-RingO-Ring
-
10293650023 Tridon ClampTridon Clamp
-
11275500139 Hose 6 mm (Meter)Hose 6 mm (Meter)
-
12275500502 Fuel Module Ass'y. Includes 12 - 18.Fuel Module Ass'y. Includes 12 - 18.
-
13275500547 Hose Ass'y (Fuel Feeding). Includes 13 - 15.Hose Ass'y (Fuel Feeding). Includes 13 - 15.
-
14275500503 Fuel FilterFuel Filter
-
15293650125 Oetiker ClampOetiker Clamp
-
16275500508 Hose Ass'y (Fuel Return)Hose Ass'y (Fuel Return)
-
18293650125 Oetiker ClampOetiker Clamp
-
19270600012 Sensor LevelSensor Level
-
20234052600 Flat Washer 5 mmFlat Washer 5 mm
-
21275500416 Check ValveCheck Valve
-
22232551200 Elastic Stop Nut M5Elastic Stop Nut M5
-
23293650042 Oetiker ClampOetiker Clamp
-
24293710059 Y-FittingY-Fitting
-
25293730006 Dart BlackDart Black
-
26293650038 Tridon ClampTridon Clamp
-
27293830077 Pad RubberPad Rubber
-
28275500427 Fuel TankFuel Tank
-
29293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
30275500434 Filler Neck HoseFiller Neck Hose
-
31293250029 GasketGasket
-
32275500231 Filler NeckFiller Neck
-
33293710039 Straight FittingStraight Fitting
-
34293720029 GrommetGrommet
-
35293250075 GasketGasket
-
36211100012 Fuel Filler Neck NutFuel Filler Neck Nut
-
37275500430 Fuel Tank Cap. Includes 37 - 38.Fuel Tank Cap. Includes 37 - 38.
-
38293000034 Snap CapSnap Cap
-
39275500398 Check ValveCheck Valve
-
40293850036 StrapStrap
-
41293850024 Strap ClipStrap Clip
-
42275500510 Fuel Distributor. Includes 42 - 63.Fuel Distributor. Includes 42 - 63.
-
43275500460 Fuel InjectorFuel Injector
-
44275500461 Retainer PlateRetainer Plate
-
45275500538 Air Return AdaptorAir Return Adaptor
-
46293300069 O-RingO-Ring
-
47275500535 CapCap
-
48275500463 Air RegulatorAir Regulator
-
49275500456 Retainer PlateRetainer Plate
-
50275500455 Retainer PlateRetainer Plate
-
51275500464 Fuel RegulatorFuel Regulator
-
52275500449 CoverCover
-
53293300072 O-RingO-Ring
-
54275500465 SpacerSpacer
-
55293300073 O-RingO-Ring
-
56205051260 Socket Head Screw M5 x 12Socket Head Screw M5 x 12
-
57205061260 Socket Head Screw M6 x 12Socket Head Screw M6 x 12
-
58270600022 Pressure Hose. Includes 58 - 59.Pressure Hose. Includes 58 - 59.
-
59293300070 O-RingO-Ring
-
60275500511 Hose Ass'y (Fuel Return). Includes 60 - 61. (987.8 mm)Hose Ass'y (Fuel Return). Includes 60 - 61. (987.8 mm)
-
61293300069 O-RingO-Ring
-
62275500519 Hose Ass'y (Fuel Supply). Includes 62 - 63. (864.5 mm)Hose Ass'y (Fuel Supply). Includes 62 - 63. (864.5 mm)
-
63293300070 O-RingO-Ring
-
64293250088 GasketGasket
-
65232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
66293750001 Tie Rap 94 mmTie Rap 94 mm
-
67293850037 Strap. Includes 67 - 68.Strap. Includes 67 - 68.
-
68293850024 Strap ClipStrap Clip
-
69275500518 Fuel Cap ChainFuel Cap Chain
-
70241140060 Hex. Flanged Screw K40 x 10Hex. Flanged Screw K40 x 10
-
71390407900 Pop Rivet 1/8''Pop Rivet 1/8''
-
72291001399 Tie ClampTie Clamp
-
73234032600 Flat Washer 3 mmFlat Washer 3 mm
-
74219700368 Lower FilterLower Filter
