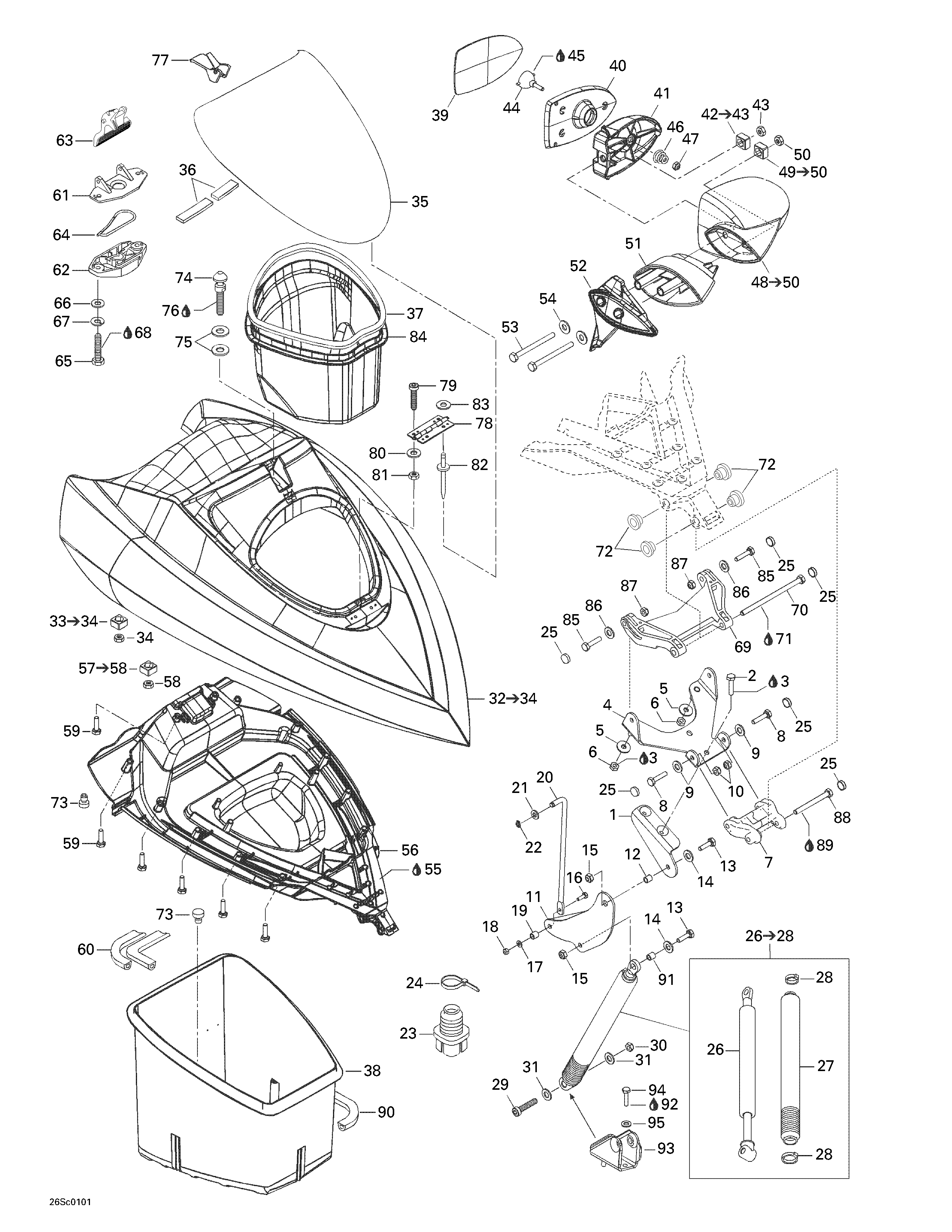

09- Front Storage Compartment для BRP RX DI, 5534/5535/5536/5537 - 2001
-
№АртикулНазвание
-
1269500846 Support LeverSupport Lever
-
2207162060 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
3293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
4269500708 Pivot SupportPivot Support
-
5234062600 Flat Washer 6 mmFlat Washer 6 mm
-
6232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
7269500704 Front ArmFront Arm
-
8211000022 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
9234061600 Flat Washer 6 mmFlat Washer 6 mm
-
10232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
11269500840 LeverLever
-
12291000536 SpacerSpacer
-
13207162060 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
14234062600 Flat Washer 6 mmFlat Washer 6 mm
-
15232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
16207141660 Hex. Screw M4 x 16Hex. Screw M4 x 16
-
17234041600 Flat Washer 4 mmFlat Washer 4 mm
-
18232541600 Elastic Stop Nut M4Elastic Stop Nut M4
-
19269500841 SpacerSpacer
-
20269500842 RodRod
-
21234061600 Flat Washer 6 mmFlat Washer 6 mm
-
22293370005 Circlip 6 mmCirclip 6 mm
-
23293720063 Cable GrommetCable Grommet
-
24414115200 Tie RapTie Rap
-
25414436900 Snap Cap (Black)Snap Cap (Black)
-
26269500843 Gaz Shock Ass'y. Includes 26 - 28.Gaz Shock Ass'y. Includes 26 - 28.
-
27269500845 BellowBellow
-
28293750001 Tie Rap 94 mmTie Rap 94 mm
-
29205564560 Socket Head Screw M6 x 45Socket Head Screw M6 x 45
-
30232361600 Hex. Nut M6Hex. Nut M6
-
31234062600 Flat Washer 6 mmFlat Washer 6 mm
-
32269500891 Cover (Mazatlan Blue). Includes 32 - 35. RX DI 5534/5535.Cover (Mazatlan Blue). Includes 32 - 35. RX DI 5534/5535.
-
269500903 Cover (Metallic Pewter). RX DI 5536/5537.Cover (Metallic Pewter). RX DI 5536/5537.
-
33269500252 Nut Housing Ass'y. Includes 33 - 34.Nut Housing Ass'y. Includes 33 - 34.
-
34232061600 Hex. Nut M6Hex. Nut M6
-
35269500902 Access Cover (Mazatlan Blue). RX DI 5534/5535.Access Cover (Mazatlan Blue). RX DI 5534/5535.
-
269500700 Access Cover (Metallic Pewter). RX DI 5536/5537.Access Cover (Metallic Pewter). RX DI 5536/5537.
-
36293200003 Tray Seal (Meter)Tray Seal (Meter)
-
37293200017 Neoprene Seal (Meter)Neoprene Seal (Meter)
-
38269500691 Strorage TrayStrorage Tray
-
39269500687 R.H. MirrorR.H. Mirror
-
269500788 L.H. MirrorL.H. Mirror
-
40269500697 Frame MirrorFrame Mirror
-
41269500807 Housing SupportHousing Support
-
42269500813 Nut Housing Ass'y. Includes 42 - 43.Nut Housing Ass'y. Includes 42 - 43.
-
43232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
44269500079 Mirror Ball JointMirror Ball Joint
-
45293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
46269500453 Mirror SpringMirror Spring
-
47232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
48269500893 R.H. Mirror Shell (Mazatlan Blue). Includes 48 - 50. RX DI 5534/5535.R.H. Mirror Shell (Mazatlan Blue). Includes 48 - 50. RX DI 5534/5535.
-
269501023 R.H. Mirror Shell (Metallic Pewter). RX DI 5536/5537.R.H. Mirror Shell (Metallic Pewter). RX DI 5536/5537.
-
269500895 L.H. Mirror Shell (Mazatlan Blue). RX DI 5534/5535.L.H. Mirror Shell (Mazatlan Blue). RX DI 5534/5535.
-
269501026 L.H. Mirror Shell (Metallic Pewter). RX DI 5536/5537.L.H. Mirror Shell (Metallic Pewter). RX DI 5536/5537.
-
49269500813 Nut Housing Ass'y. Includes 49 - 50.Nut Housing Ass'y. Includes 49 - 50.
-
50232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
51269500897 R.H. Mirror Support (Mazatlan Blue). RX DI 5534/5535.R.H. Mirror Support (Mazatlan Blue). RX DI 5534/5535.
-
269500818 R.H. Mirror Support (Metallic Pewter). RX DI 5536/5537.R.H. Mirror Support (Metallic Pewter). RX DI 5536/5537.
-
269500899 L.H. Mirror Support (Mazatlan Blue). RX DI 5534/5535.L.H. Mirror Support (Mazatlan Blue). RX DI 5534/5535.
-
269500819 L.H. Mirror Support (Metallic Pewter). RX DI 5536/5537.L.H. Mirror Support (Metallic Pewter). RX DI 5536/5537.
-
52269500792 R.H. SpacerR.H. Spacer
-
269500793 L.H. SpacerL.H. Spacer
-
53230082060 Hex. Screw M8 x 120Hex. Screw M8 x 120
-
54234082600 Flat Washer 8 mmFlat Washer 8 mm
-
55413708300 Glue Tube, Loctite 454, 20 gGlue Tube, Loctite 454, 20 g
-
56269500702 Lower Strorage CoverLower Strorage Cover
-
57269500252 Nut Housing Ass'y. Includes 57 - 58.Nut Housing Ass'y. Includes 57 - 58.
-
58232061600 Hex. Nut M6Hex. Nut M6
-
59241141360 Hex. Flanged Screw K40 x 13Hex. Flanged Screw K40 x 13
-
60293200017 Neoprene Seal (Meter)Neoprene Seal (Meter)
-
61269700020 Latch CoverLatch Cover
-
62269000015 Latch BaseLatch Base
-
63269000016 Latch LeverLatch Lever
-
64269700017 Latch SpringLatch Spring
-
65207063060 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
66234061600 Flat Washer 6 mmFlat Washer 6 mm
-
67234161601 Lock Washer 6 mmLock Washer 6 mm
-
68293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
69269500705 Rear ArmRear Arm
-
70230060060 Hex. Screw M6 x 100Hex. Screw M6 x 100
-
71293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
72269500706 SleeveSleeve
-
73293830005 Rubber PlugRubber Plug
-
74291001242 Latch StudLatch Stud
-
75234062600 Flat Washer 6 mmFlat Washer 6 mm
-
76293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
77269500530 LatchLatch
-
78269500338 HingeHinge
-
79205451660 Socket Head Screw M5 x 16Socket Head Screw M5 x 16
-
80234052600 Flat Washer 5 mmFlat Washer 5 mm
-
81232551600 Elastic Stop Nut M5Elastic Stop Nut M5
-
82204000081 Pop Rivet 3/16''Pop Rivet 3/16''
-
83234052600 Flat Washer 5 mmFlat Washer 5 mm
-
84269500339 Gloves BoxGloves Box
-
85211000022 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
86234061600 Flat Washer 6 mmFlat Washer 6 mm
-
87232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
88207066060 Hex. Screw M6 x 60Hex. Screw M6 x 60
-
89293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
90293200020 Tray Seal (Meter)Tray Seal (Meter)
-
92293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
93291001013 Shock SupportShock Support
-
94207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
95234161601 Lock Washer 6 mmLock Washer 6 mm
