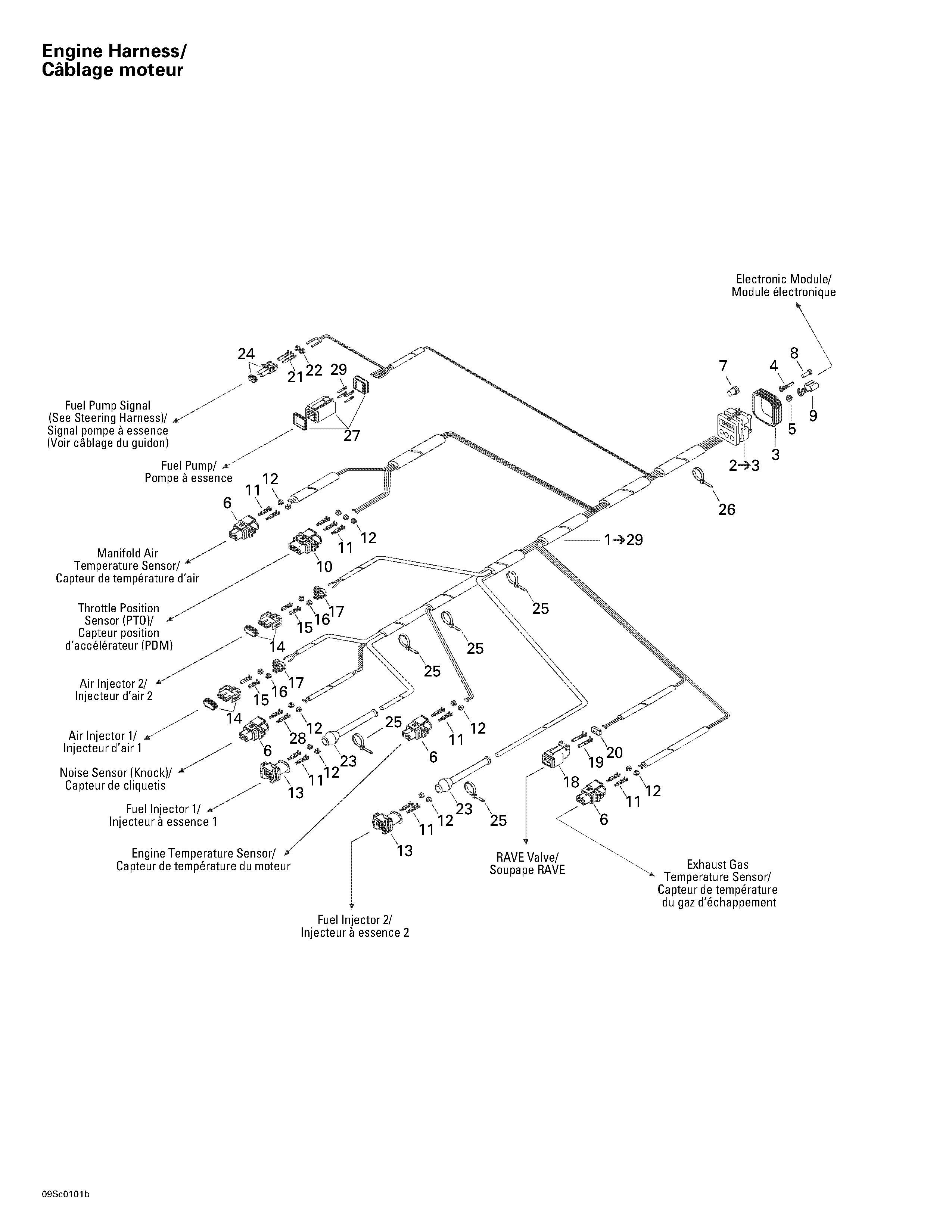

10- Engine Harness для BRP RX DI, 5534/5535/5536/5537 - 2001
-
№АртикулНазвание
-
1278001511 Engine Harness. Includes 1 - 29.Engine Harness. Includes 1 - 29.
-
2278001211 Male Housing (26 Circuits). Includes 2 - 3.Male Housing (26 Circuits). Includes 2 - 3.
-
3278001307 Wire SealWire Seal
-
4278000995 Female TerminalFemale Terminal
-
5278001223 Wire SealWire Seal
-
6278001005 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
7409013900 PlugPlug
-
8293000070 Sealing CapSealing Cap
-
9278000994 Female TerminalFemale Terminal
-
10278000997 Male Housing (3 Circuits)Male Housing (3 Circuits)
-
11278000998 Female TerminalFemale Terminal
-
12278000999 Wire SealWire Seal
-
13278001003 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
14278001480 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
15278001481 Female TerminalFemale Terminal
-
16278001482 Wire SealWire Seal
-
17278001483 Secondary LockSecondary Lock
-
18409207300 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
19278000632 Female TerminalFemale Terminal
-
20409207100 Female LockFemale Lock
-
21278000223 Female TerminalFemale Terminal
-
22278000218 Wire SealWire Seal
-
23278001484 Rubber CapRubber Cap
-
24278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
25293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
26293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
27278001308 Male Housing (4 Circuits)Male Housing (4 Circuits)
-
28278001210 Female TerminalFemale Terminal
-
29278001114 Female TerminalFemale Terminal
