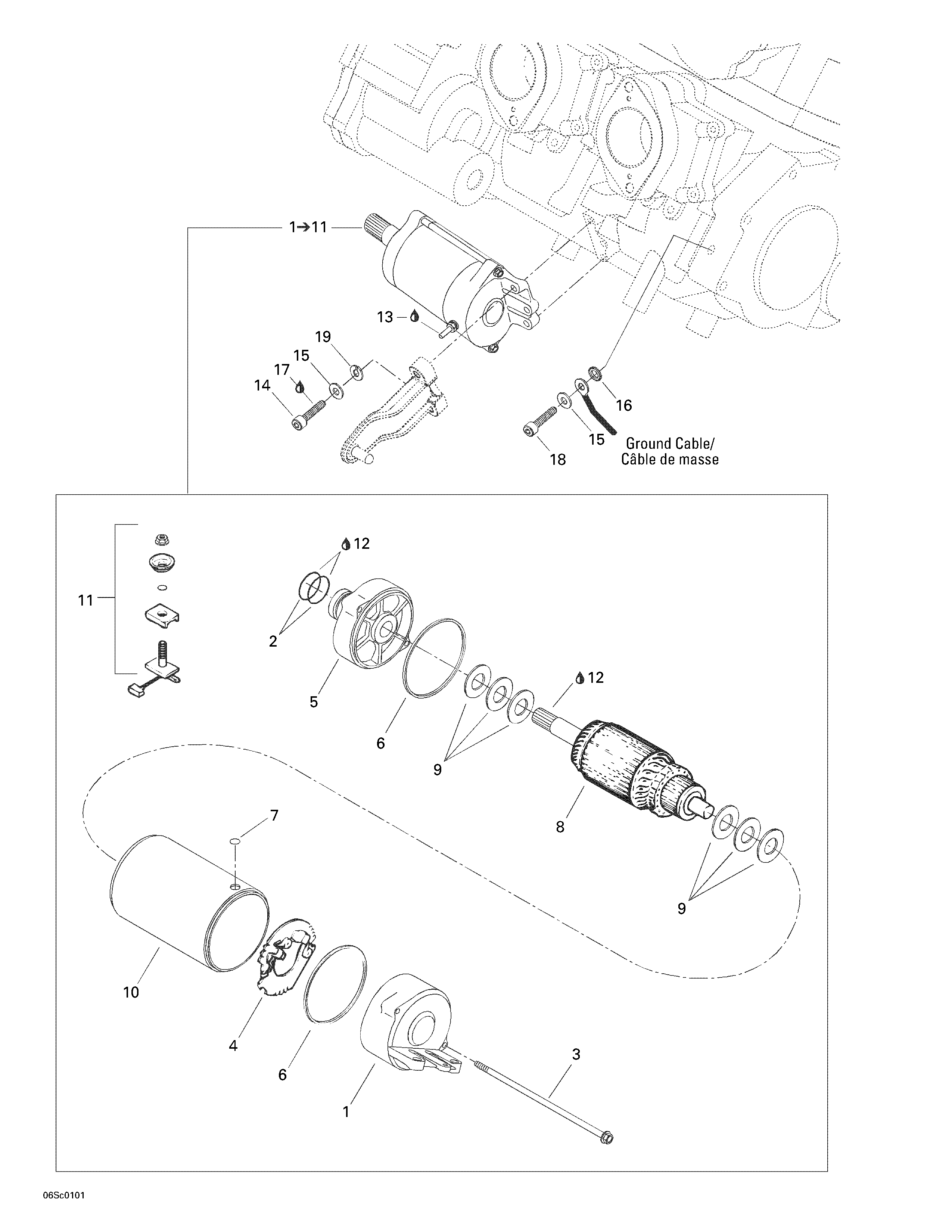

04- Starter для BRP RX DI, 5534/5535/5536/5537 - 2001
-
№АртикулНазвание
-
1278000987 Starter Ass'y. Includes 1 - 11.Starter Ass'y. Includes 1 - 11.
-
1278001156 Rear HousingRear Housing
-
2278001159 O-RingO-Ring
-
3278001157 ScrewScrew
-
4278001154 Brush HolderBrush Holder
-
5278001152 Front HousingFront Housing
-
6278001158 Square RingSquare Ring
-
7278001160 O-RingO-Ring
-
8278001155 Armature ass'yArmature ass'y
-
9278001161 Washer SetWasher Set
-
10278001153 Starter HousingStarter Housing
-
11278001385 Brush KitBrush Kit
-
12293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
13293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
14205063560 Socket Head Screw M6 x 35Socket Head Screw M6 x 35
-
15234061600 Flat Washer 6 mmFlat Washer 6 mm
-
16234461608 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
17293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
18207361260 Hex. Screw M6 x 12Hex. Screw M6 x 12
-
19234161601 Lock Washer 6 mmLock Washer 6 mm
